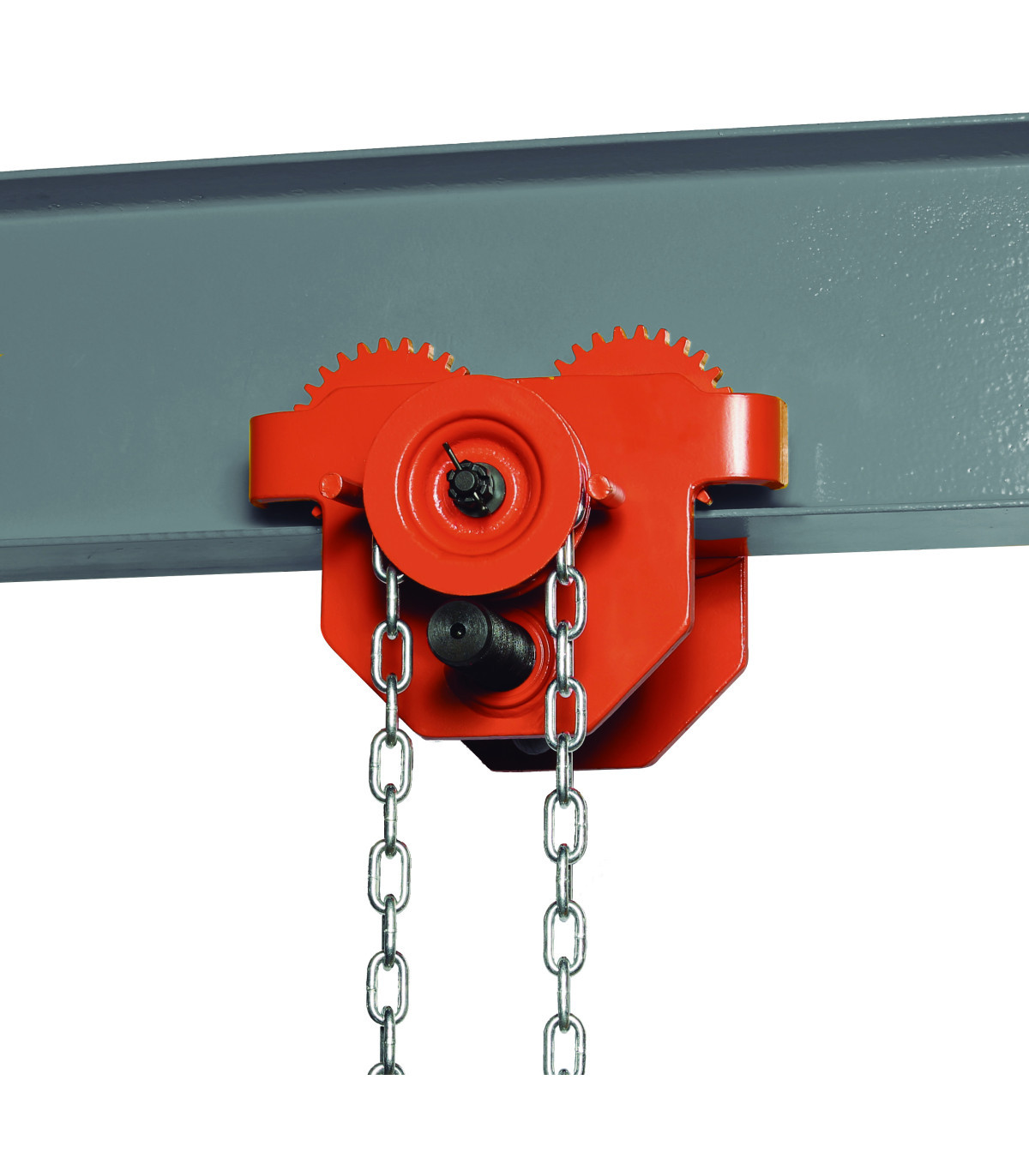

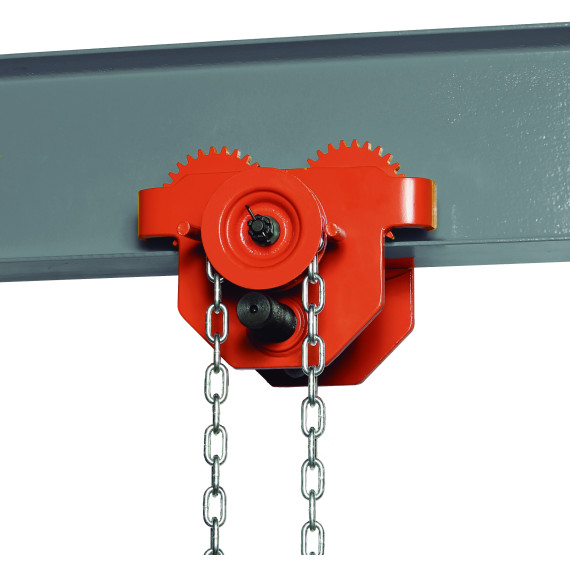

HFW hoist trolley with a capacity of 2 tons UNICRAFT

HFW hoist trolley with a capacity of 2 tons UNICRAFT. The HFW hoist trolley UNICRAFT, with a capacity of 2 tons and a 3-meter chain, is ideal for lifting heavy materials. Its minimum curve radius of 0.9 meters and flange width of 66 to 220 mm make it perfect for carriers Yo 140 to Yo 600, being useful in factories, workshops, and installations.

FEATURES

• With a maximum capacity of 2 tons
• No lateral movement thanks to the pulley centering
• Adjustment via the fork bar
• Standard anti-tilt
• Low height and compact design.
• For use on I-beams (DIN 1025-1)
• Quiet operation feature through ball bearing

TECHNICAL SPECIFICATIONS

Load capacity 2 tons

Chain length 3 meters

Minimum curve radius 0.9 meters

Flange width of the carrier 66 – 220 millimeters

Suitable for carrier type Yo 140 – Yo 600

VPE 1

Dimensions and weights

Approximate length 362 millimeters

Approximate width/depth 277 millimeters

Approximate height 208 millimeters

Approximate weight. 17 kilograms

COMPONENTS/PACKAGING

Unit: pcs.

Packaging unit: 1

FOR WHAT TYPE OF WORK IS IT SUITABLE

The HFW hoist trolley with a capacity of 2 tons UNICRAFT is suitable for:

• Lifting heavy materials
• Installation of structures
• Maintenance
• Factories
• Workshops
