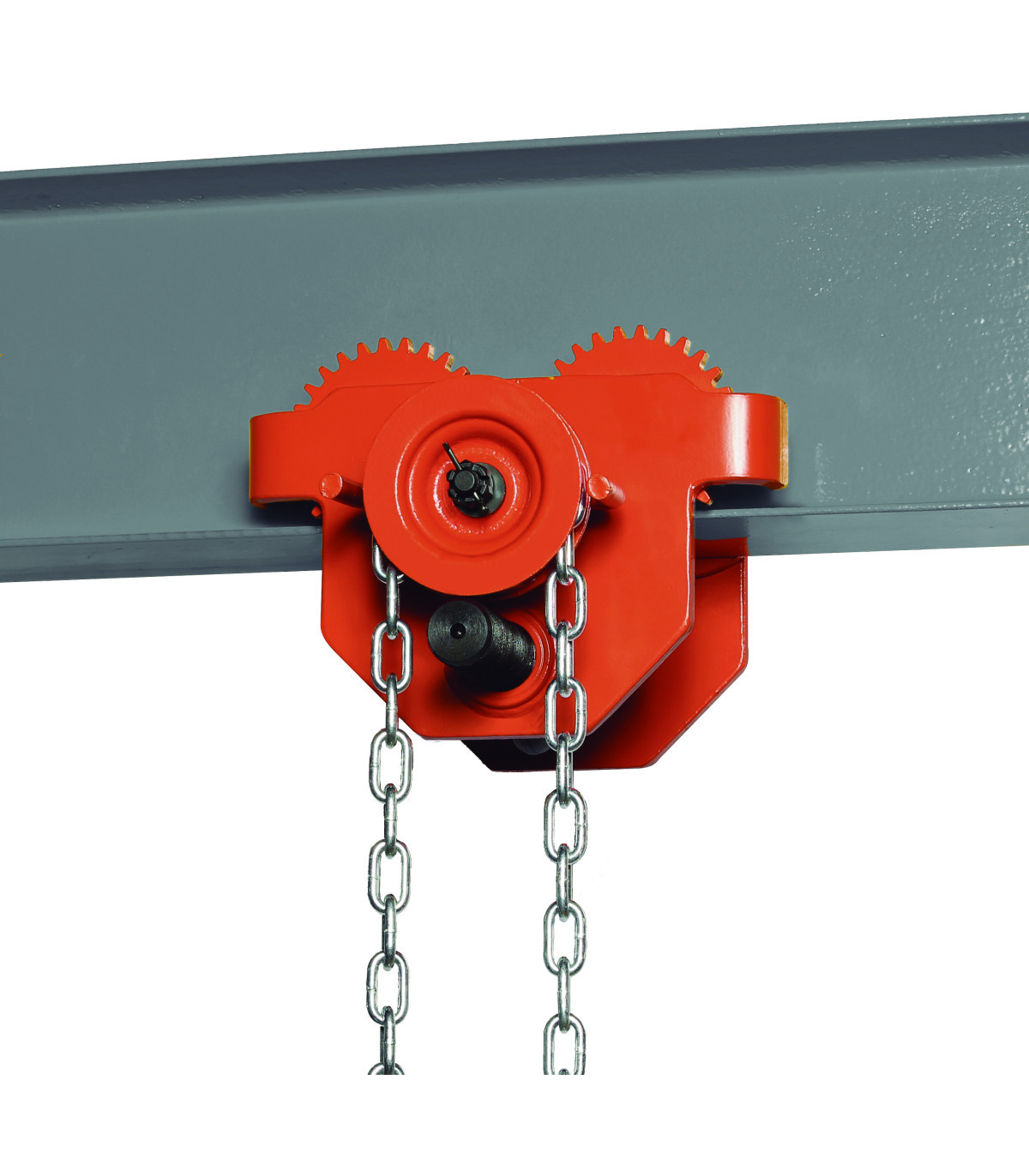

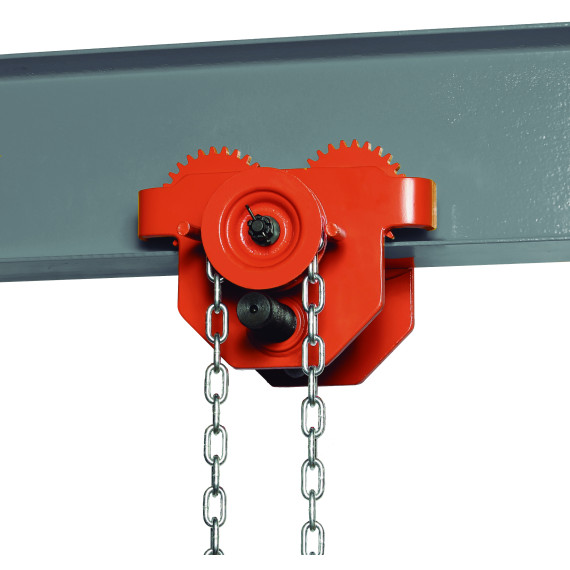

HFW hoist trolley with a capacity of 3 tons UNICRAFT

HFW hoist trolley with a capacity of 3 tons UNICRAFT. The HFW hoist trolley UNICRAFT, with a maximum capacity of 3 tons, stands out for its compact design and low height. It has no lateral movement thanks to the centered pulley, features fork bar adjustment, and operates quietly. Ideal for I-beams (DIN 1025-1), it has a 3-meter chain, a minimum curve radius of 1.2 meters, and a flange width of 74 to 220 mm, making it perfect for lifting heavy materials in factories, workshops, and installations.

FEATURES

• With a maximum capacity of 3 tons
• No lateral movement thanks to the centered pulley
• Adjustment via fork bar
• Anti-tilt standard
• Low height and compact design.
• For use on I-beams (DIN 1025-1)
• Quiet operation feature through ball bearing

TECHNICAL SPECIFICATIONS

Load capacity 3 tons

Chain length 3 meters

Minimum curve radius 1.2 meters

Flange width of the carrier 74 – 220 millimeters

Suitable for carrier type Yo 160 – Yo 600

VPE 1

Dimensions and weights

Approximate length 406.5 millimeters

Approximate width/depth 324 millimeters

Approximate height 249 millimeters

Approximate weight. 28 kilograms

COMPONENTS/PACKAGING

Unit: piece(s).

Packaging unit: 1

FOR WHAT TYPE OF WORK IS IT SUITABLE

The HFW hoist trolley with a capacity of 3 tons UNICRAFT is suitable for:

• Lifting heavy materials
• Installation of structures
• Maintenance
• Factories
• Workshops

CERTIFICATION

Quality Management System of the Stürmer Group certified according to ISO 9001:2015

ISO 9001 is a globally recognized standard for quality management. It helps organizations of all sizes and sectors improve their performance, meet customer expectations, and demonstrate their commitment to quality.

Its evaluation basis includes:

Customer requirement orientation

Compliance with standards and guidelines

Knowledge management

Clearly defined process flows

Corporate responsibility

Sustainability, development, and innovation

Risk management
