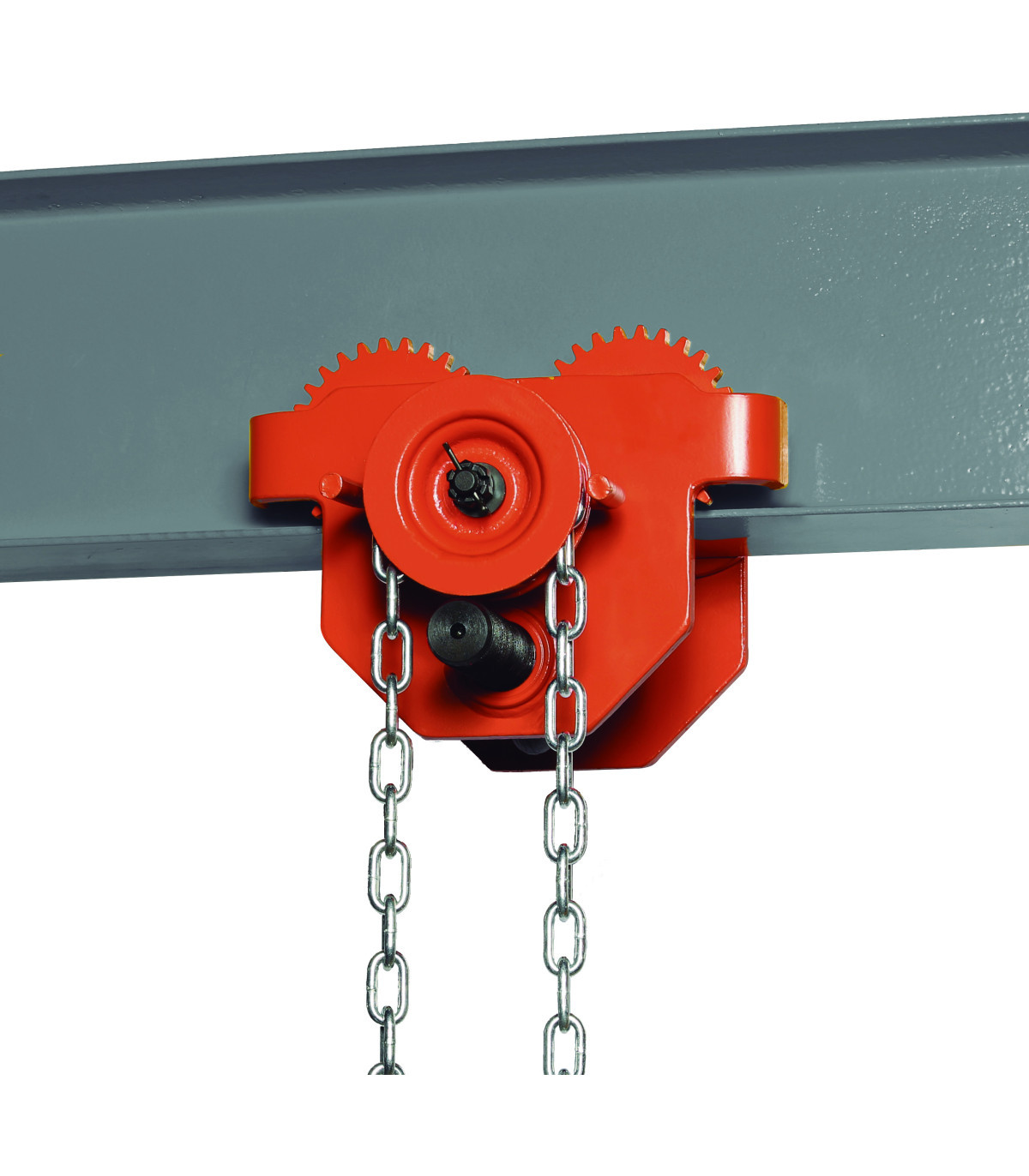

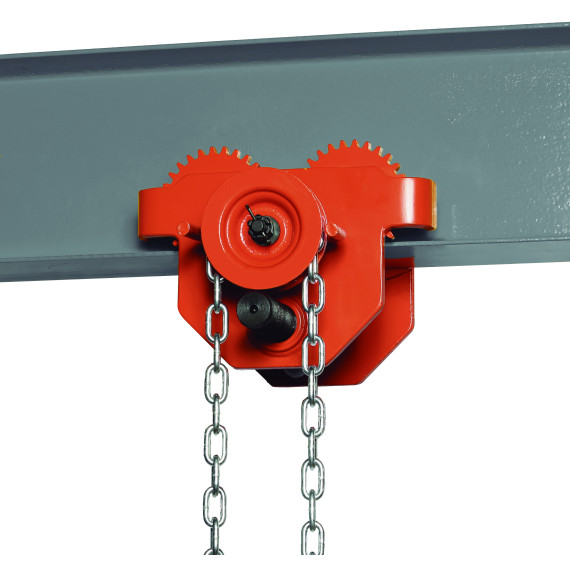

HFW hoist trolley with a capacity of 5 tons UNICRAFT

HFW hoist trolley with a capacity of 5 tons UNICRAFT. The HFW hoist trolley UNICRAFT, with a maximum capacity of 5 tons, is ideal for lifting heavy materials. Its compact design and low height allow for efficient use on I-beams (DIN 1025-1). With silent operation thanks to its ball bearing and fork bar adjustment, it prevents lateral movement. Its dimensions are 434.5 mm in length, 373 mm in width, and 296.5 mm in height, with an approximate weight of 45 kilograms. Perfect for factories, workshops, and installations.

FEATURES

• With a maximum capacity of 5 tons
• No lateral movement thanks to the centering of the pulley
• Adjustment by fork bar
• Anti-tipping standard
• Low height and compact design.
• For use on I-beams (DIN 1025-1)
• Silent operation feature through ball bearing

TECHNICAL SPECIFICATIONS

Load capacity 5 tons

Chain length 3 meters

Minimum curve radius 1 meter

Flange width of the carrier 90 – 220 millimeters

Suitable for the type of carrier I 200 – I 600

VPE 1

Dimensions and weights

Approximate length 434.5 millimeters

Approximate width/depth 373 millimeters

Approximate height 296.5 millimeters

Approximate weight. 45 kilograms

COMPONENTS/PACKAGING

Unit: piece(s).

Packaging unit: 1

FOR WHAT TYPE OF WORK IS IT SUITABLE

The HFW hoist trolley with a capacity of 5 tons UNICRAFT is suitable for:

• Lifting heavy materials
• Installation of structures
• Maintenance
• Factories
• Workshops

CERTIFICATION

Quality Management System of the Stürmer Group certified according to ISO 9001:2015

ISO 9001 is a globally recognized standard for quality management. It helps organizations of all sizes and sectors improve their performance, meet customer expectations, and demonstrate their commitment to quality.

Its evaluation basis includes:

Customer requirement orientation

Compliance with standards and guidelines

Knowledge management

Clearly defined process flows

Corporate responsibility

Sustainability, development, and innovation

Risk management
