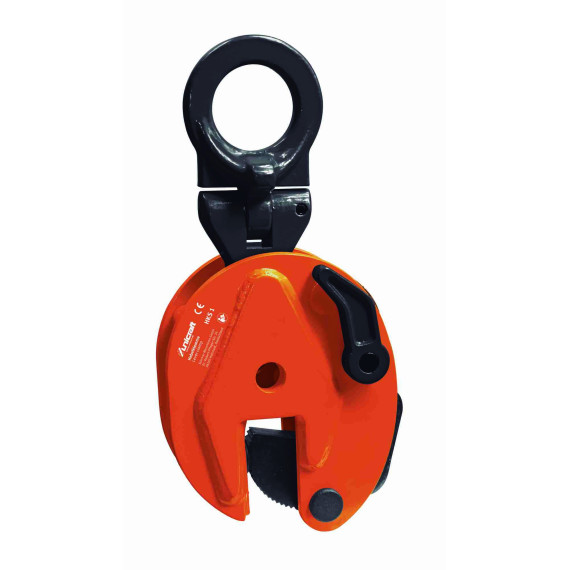

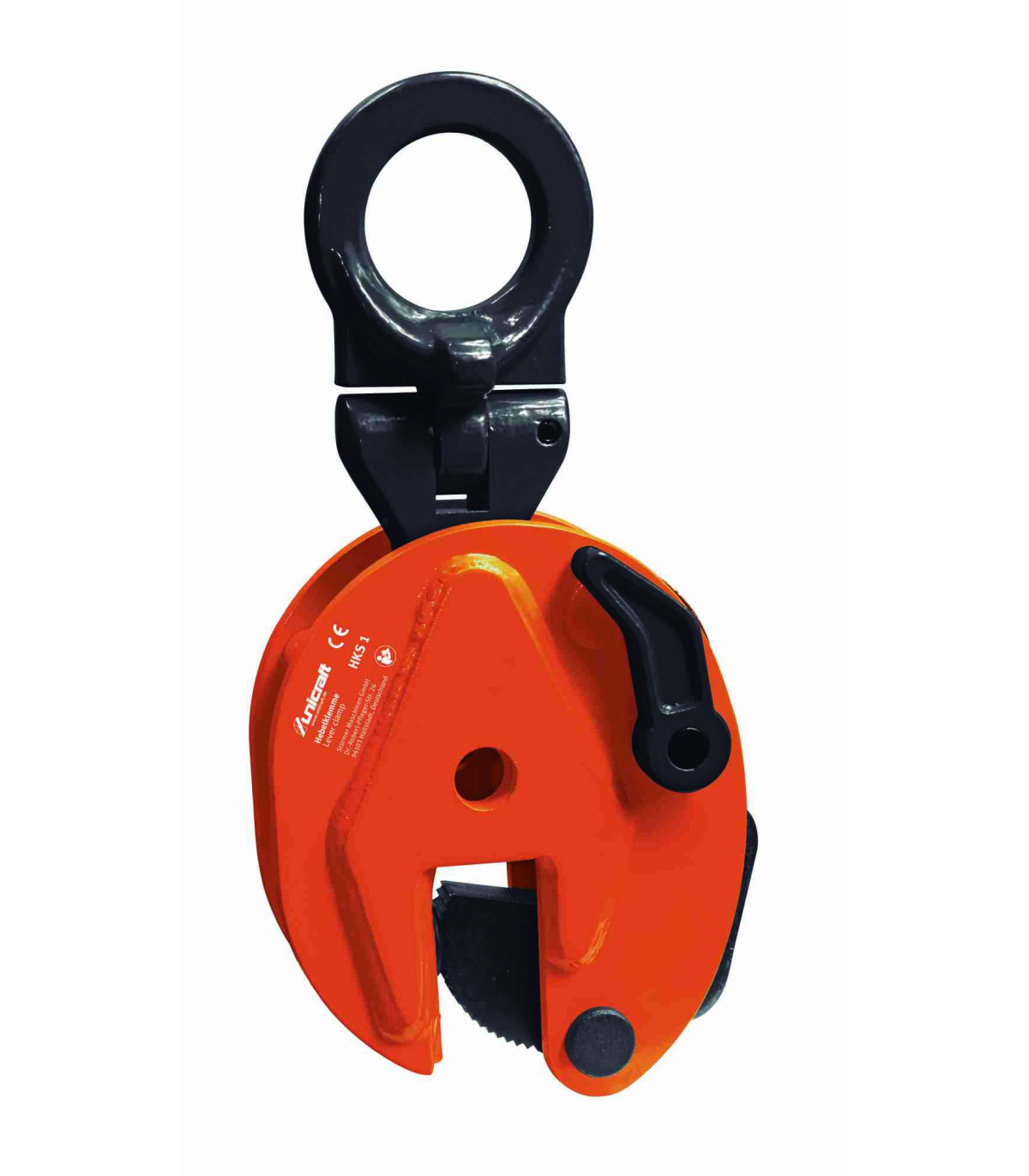

Vertical lifting claws HKS 1 load of 1 T UNICRAFT

Vertical lifting claws HKS 1 load of 1 T UNICRAFT. The vertical lifting claws HKS 1 from UNICRAFT, with a load capacity of 1 ton, are designed for vertical lifting and allow for lateral movement of 180°. They are ideal for lifting sheets, beams, and steel structures. Their safety closure via lever ensures tension-free movement, while the minimum load required is 10% of the nominal capacity. The hardness of the transported material must not exceed 30 HRC. Additionally, they can be fixed laterally thanks to their rotating elements, offering versatility and safety in the workplace.

FEATURES

• Designed for vertical lifting, allows for 180° lateral movement.
• Enables the lifting of sheets, beams, and steel structures.
• Safety closure via lever ensures tension-free movement.
• Minimum load of 10% of the nominal capacity, the hardness of the surface of the transported material must not exceed 30 HRC.
• Can be fixed laterally thanks to the rotating elements.

TECHNICAL SPECIFICATIONS

Load capacity 1 ton

Grip reach 0-20 mm

VPE 1

Dimensions and weights

Approximate length 145 millimeters

Approximate width/depth 66 millimeters

Approximate height 300 millimeters

Approximate weight 5 kilos

COMPONENTS/PACKAGING

Unit: piece(s).

Packaging unit: 1

FOR WHAT TYPE OF WORK IS IT SUITABLE

The vertical lifting claws HKS 1 load of 1 T UNICRAFT are suitable for:

• Sheets
• Beams
• Steel structures
