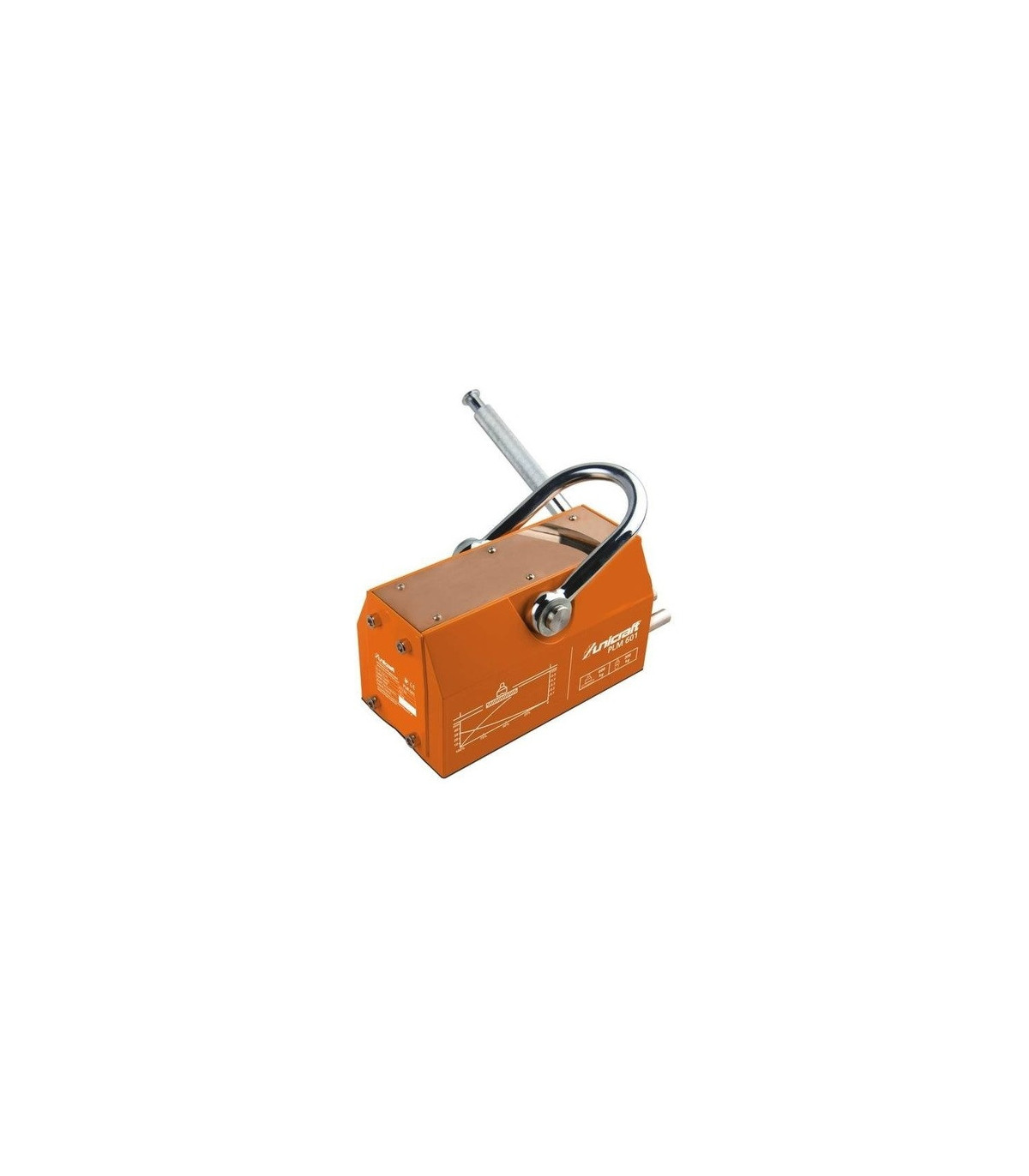

Magnetic elevator PLM 301 load capacity of 300 kg UNICRAFT

Magnetic lifter PLM 301 load capacity of 300 kg UNICRAFT. The magnetic lifter PLM 301 from UNICRAFT, with a load capacity of 300 kg, is perfect for construction, manufacturing, warehouses, and maintenance. No batteries are needed; it turns on and off easily with a manual lever. Its locking system ensures that there is no unintentional demagnetization and has a high safety standard (safety factor of 3.5). Designed for flat and round materials, its V-shaped base plate allows lifting up to 150 kg in round materials. With a chassis height of 108 mm, length of 166 mm, and width of 99 mm, it weighs approximately 12 kg.

FEATURES

• Independent of batteries or external power supply
• Easy to turn on and off by moving the manual lever.
• The lever lock in the activated state through safety interlocking prevents unintentional demagnetization.
• High safety standard thanks to the proven safety factor of 3.5
• For flat and round materials using a V-shaped base plate

TECHNICAL SPECIFICATIONS

Load capacity 300 kilos

Load capacity for round material 150 kilos

VPE 1

Dimensions and weights

Chassis height 108 millimeters

Approx. length 166 millimeters

Approx. width/depth 99 millimeters

Approx. weight 12 kilos

COMPONENTS/PACKAGING

Unit: piece(s).

Packaging unit: 1

WHAT TYPE OF WORK IS IT SUITABLE FOR

The magnetic lifter PLM 301 with a load capacity of 300 kg UNICRAFT is suitable for:

• Construction
• Manufacturing
• Warehouses
• Maintenance

CERTIFICATION

Quality Management System of the Stürmer Group certified according to ISO 9001:2015

ISO 9001 is a globally recognized standard for quality management. It helps organizations of all sizes and sectors improve their performance, meet customer expectations, and demonstrate their commitment to quality.

Its evaluation basis includes:

Customer requirement orientation

Compliance with standards and guidelines

Knowledge management

Clearly defined process flows

Corporate responsibility

Sustainability, development, and innovation

Risk management
