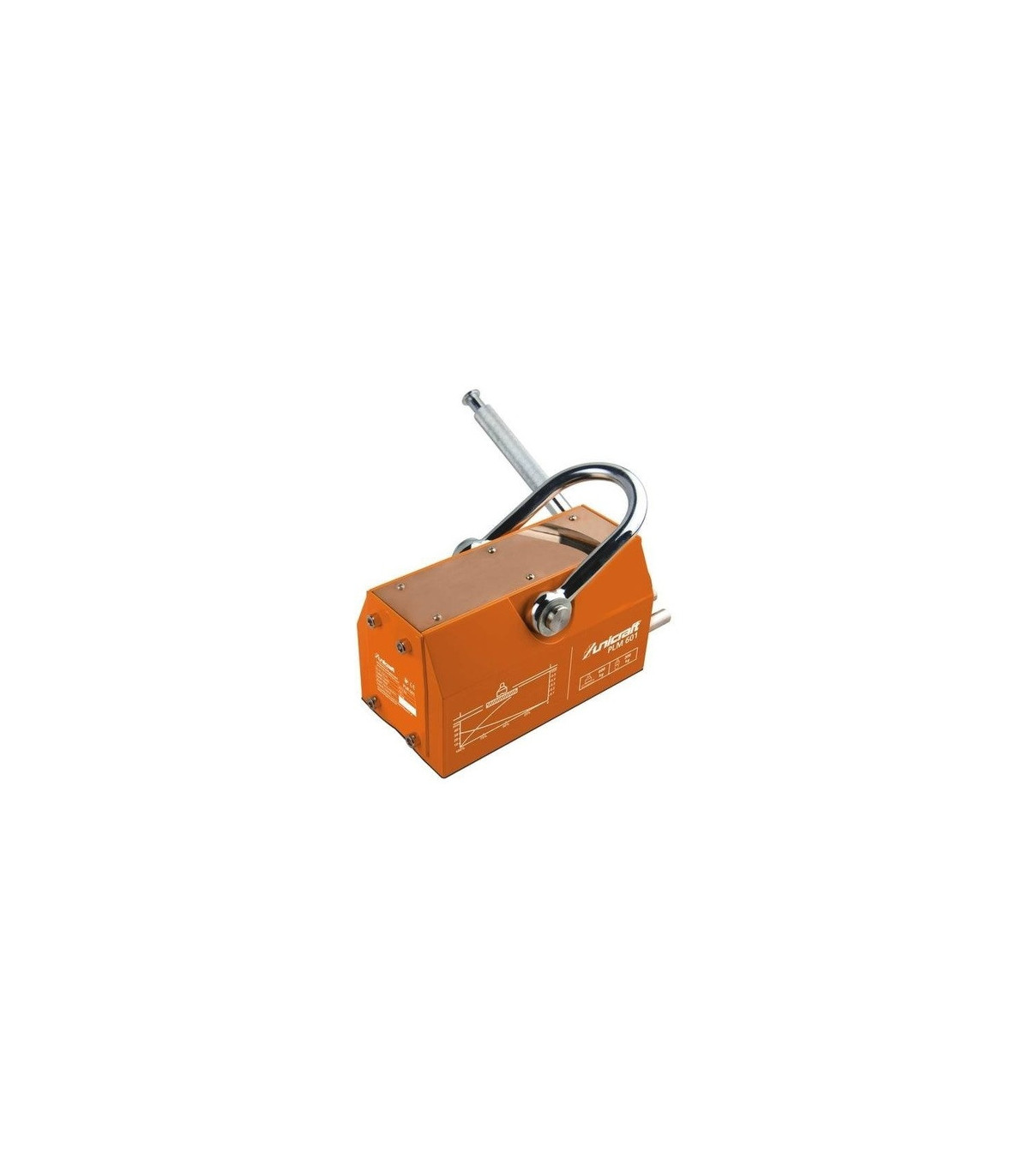

Magnetic elevator PLM 101 load capacity of 100 kg UNICRAFT

Magnetic Lift PLM 101 load capacity of 100 kg UNICRAFT. The UNICRAFT PLM 101 magnetic lift, with a load capacity of 100 kg and no need for batteries, is ideal for construction, manufacturing, warehouses, and maintenance. Its easy handling is achieved with a manual lever and a locking system that prevents unintentional demagnetization. With a high safety standard (factor of 3.5), it is perfect for flat and round materials thanks to its V-shaped base plate. Its chassis has a height of 72 mm, a length of 92 mm, and a width of 64 mm. Additionally, it can lift up to 50 kg in round materials.

FEATURES

• Independent of batteries or external power supply
• Easy on and off by moving the manual lever.
• The locking of the lever in the activated state through safety interlocking prevents unintentional demagnetization.
• High safety standard thanks to the proven safety factor of 3.5
• For flat and round materials using a V-shaped base plate

TECHNICAL SPECIFICATIONS

Load capacity 100 kilograms

Load capacity for round material 50 kilograms

VPE 1

Dimensions and weights

Chassis height 72 millimeters

Approx. length 92 millimeters

Approx. width/depth 64 millimeters

Approx. weight 3 kilograms

COMPONENTS/PACKAGING

Unit: piece(s).

Packaging unit: 1

WHAT TYPE OF WORK IS IT SUITABLE FOR

The UNICRAFT PLM 101 magnetic lift with a load capacity of 100 kg is suitable for:

• Construction
• Manufacturing
• Warehouses
• Maintenance

CERTIFICATION

Quality Management System of the Stürmer Group certified according to ISO 9001:2015

ISO 9001 is a globally recognized standard for quality management. It helps organizations of all sizes and sectors improve their performance, meet customer expectations, and demonstrate their commitment to quality.

Its evaluation basis includes:

Customer requirement orientation

Compliance with standards and guidelines

Knowledge management

Clearly defined process flows

Corporate responsibility

Sustainability, development, and innovation

Risk management
