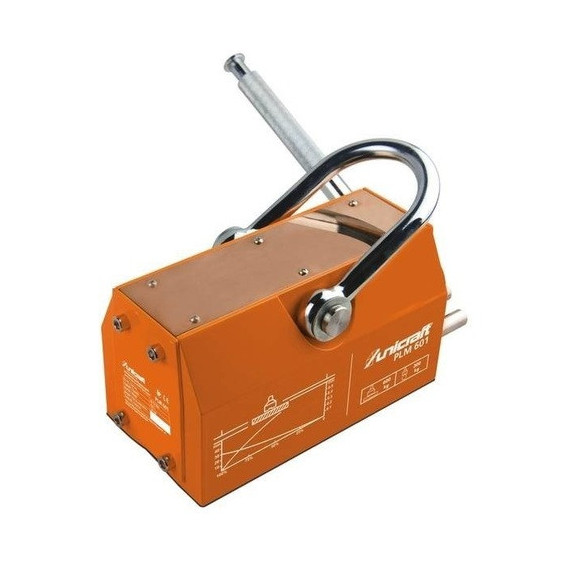

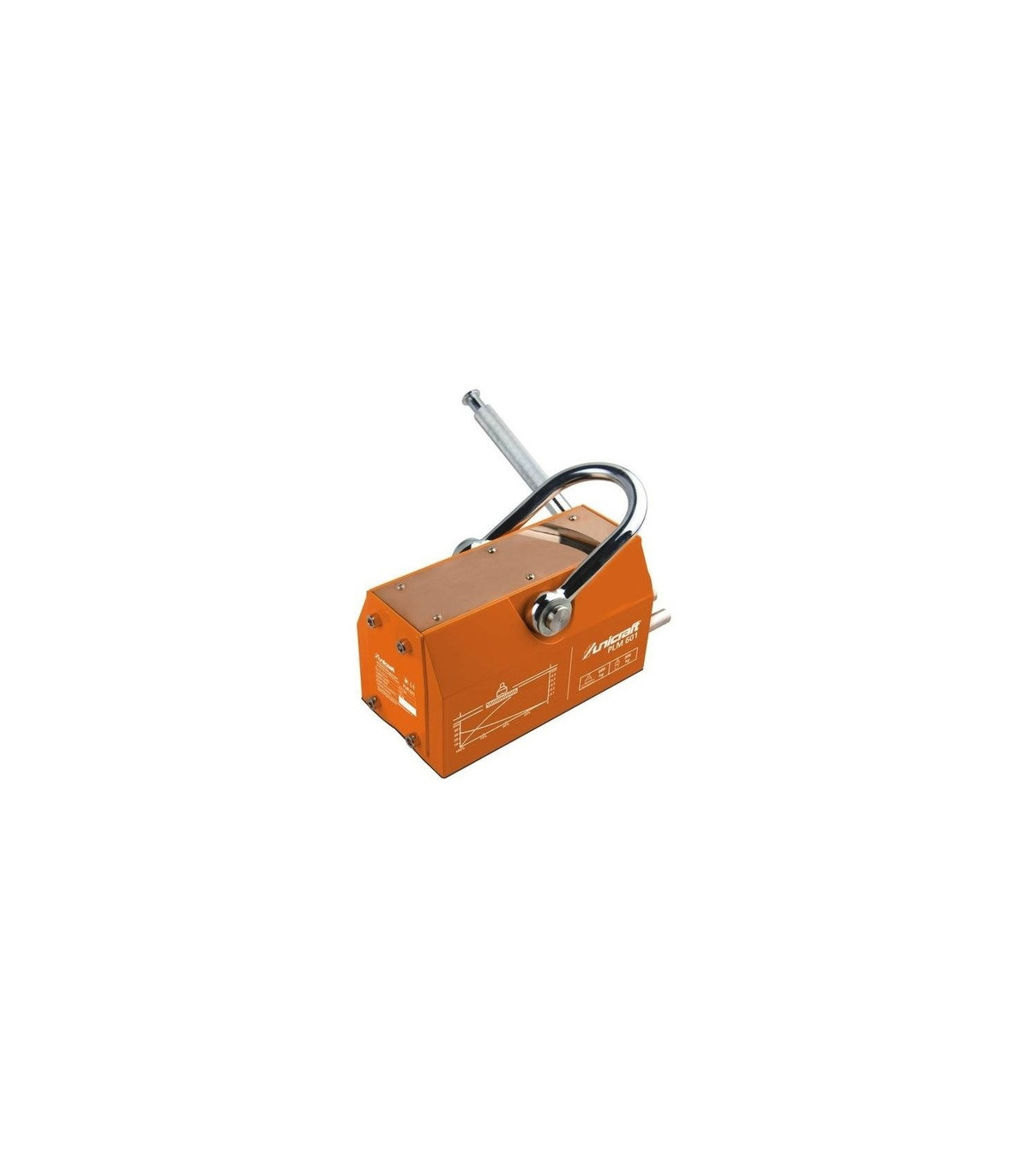

Magnetic elevator PLM 601 load capacity of 600 kg UNICRAFT

Magnetic lifter PLM 601 load capacity of 600 kg UNICRAFT. The PLM 601 magnetic lifter from UNICRAFT, with a load capacity of 600 kg, is ideal for construction, manufacturing, warehouses, and maintenance. It operates without batteries and is easily activated with a manual lever. Its locking system prevents unintentional demagnetization, ensuring a high safety standard (safety factor of 3.5). Designed for flat and round materials, it allows lifting up to 300 kg in round materials. This equipment combines robustness and ease of use, making it an essential tool in demanding industrial environments.

FEATURES

• Independent of batteries or external power supply
• Easy on and off by moving the manual lever.
• The lever lock in the activated state through safety interlocking prevents unintentional demagnetization.
• High safety standard thanks to the proven safety factor of 3.5
• For flat and round materials using a V-shaped base plate

TECHNICAL SPECIFICATIONS

Load capacity 600 kilograms

Load capacity for round material 300 kilograms

VPE 1

Dimensions and weights

Chassis height 123 millimeters

Approx. length 228 millimeters

Approx. width/depth 118 millimeters

Approx. weight 24 kilograms

COMPONENTS/PACKAGING

Unit: piece(s).

Packaging unit: 1

FOR WHAT TYPE OF WORK IS IT SUITABLE

The PLM 601 magnetic lifter with a load capacity of 600 kg UNICRAFT is suitable for:

• Construction
• Manufacturing
• Warehouses
• Maintenance

CERTIFICATION

Quality Management System of the Stürmer Group certified according to ISO 9001:2015

ISO 9001 is a globally recognized standard for quality management. It helps organizations of all sizes and sectors improve their performance, meet customer expectations, and demonstrate their commitment to quality.

Its evaluation basis includes:

Customer requirement orientation

Compliance with standards and guidelines

Knowledge management

Clearly defined process flows

Corporate responsibility

Sustainability, development, and innovation

Risk management
