MAX aluminum tripod for 3 users rescue and safety SAFETOP

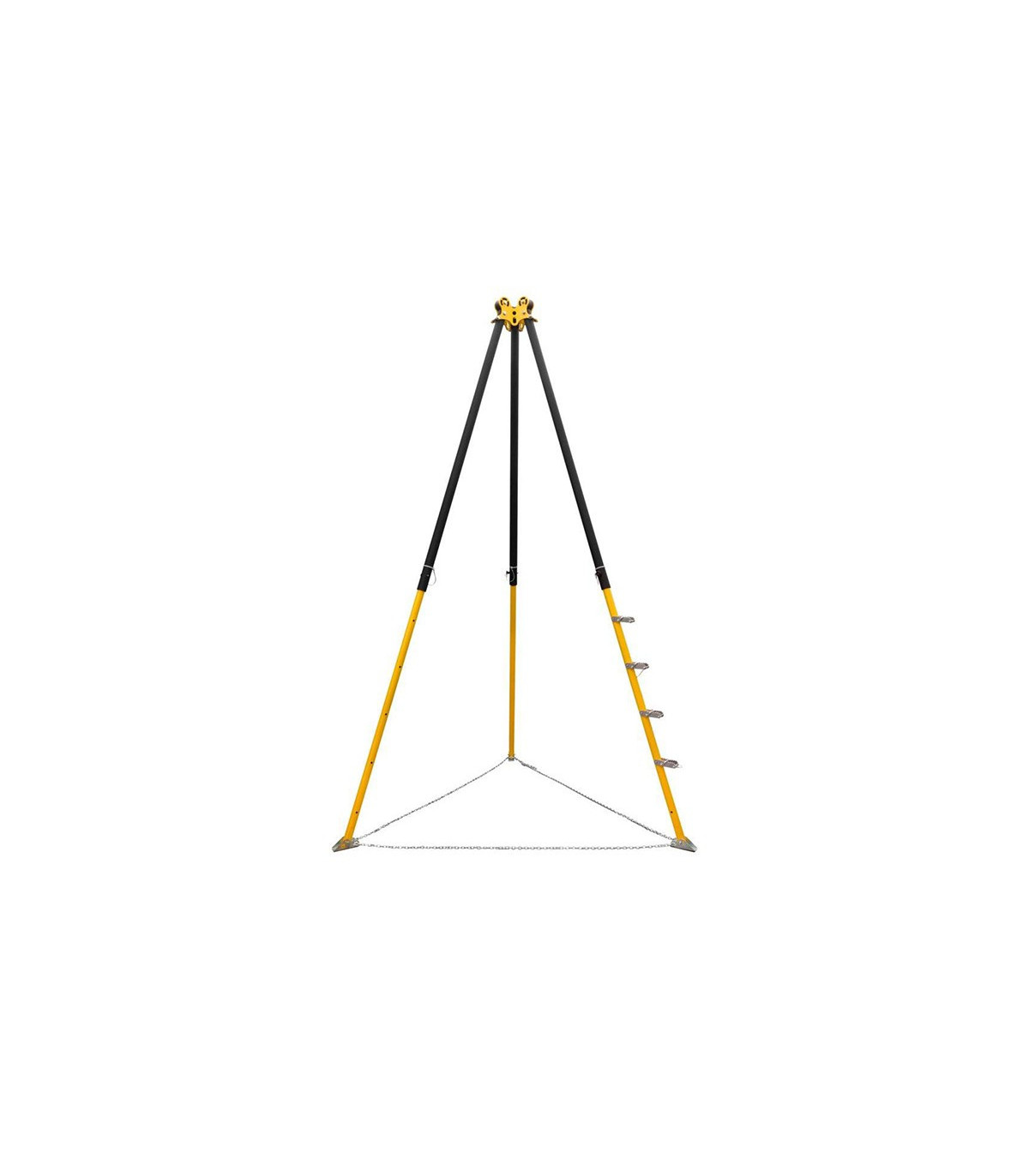

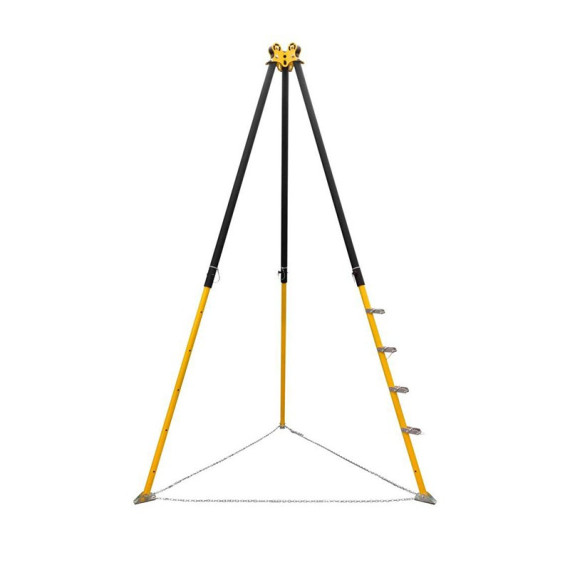

MAX aluminum tripod for 3 users SAFETOP. The MAX aluminum tripod for 3 users SAFETOP is a personal protective equipment (PPE) of category III, designed to provide safety and efficiency in rescues. Made of lightweight aluminum, its head features a powder coating and is equipped with three polyamide rollers that facilitate the guiding of ropes in evacuation operations.

This tripod protects up to three people simultaneously, and its aluminum steps, mounted with pins, allow for easy access to the head when extending the legs to their maximum height. With steel feet that include rubber pads for flat surfaces and spiked edges for slippery areas, the tripod also has an automatic locking pin and three lateral anchoring points, ideal for securing the equipment against falls from height.

FEATURES

• PPE of category III. Lightweight aluminum safety tripod.
• The head is made of aluminum with a powder coating and has three wheels with bearings to guide the working rope in rescue or evacuation devices.
• Consists of an aluminum head with a powder coating and 3 polyamide rollers.
• Provides protection for up to 3 people at once.
• The aluminum steps are mounted with pins and facilitate access to the tripod head when the legs are extended to their maximum height.
• The steel feet have rubber pads for flat surfaces and spiked edges for slippery surfaces.
• Automatic locking pin Ø 10x60.
• Equipped with 3 anchoring points on the lateral walls of the tripod head. Each of these points can be used as an anchoring point for fall protection equipment.
• Maximum 3 users in lifting and lowering.

BENEFITS

Adjustable aluminum legs (7 adjustment points).

APPLICATIONS

The MAX aluminum tripod is designed to protect up to 3 users at a time in:

• Work at heights
• Engineering projects
• Fall and impact protection
• Construction
• Industrial maintenance
• Scaffolding
• Elevated platforms
• Rescue
• Safety

TECHNICAL DATA

• STANDARDS: EN795 Class B (Transportable provisional anchors) CEN/TS 16415
• WEIGHT: 28.7 kilos
• MATERIALS: Powder-coated aluminum, galvanized steel, polyamide, stainless steel.

REGULATIONS

- EN 795 Class B: The EN 795 Class B standard establishes safety requirements for anchoring systems used in work at height, ensuring their strength and reliability to protect workers.

- TS 16415: This technical standard focuses on the design and evaluation of anchoring systems used for work at height. It provides guidelines on how these systems should be designed, installed, and maintained to ensure the safety of workers. TS 16415 establishes specific criteria for the strength and durability of anchors, as well as tests that ensure their effectiveness in real situations, thus minimizing the risk of falls.
