Steel spider-type tripod for two users SAFETOP

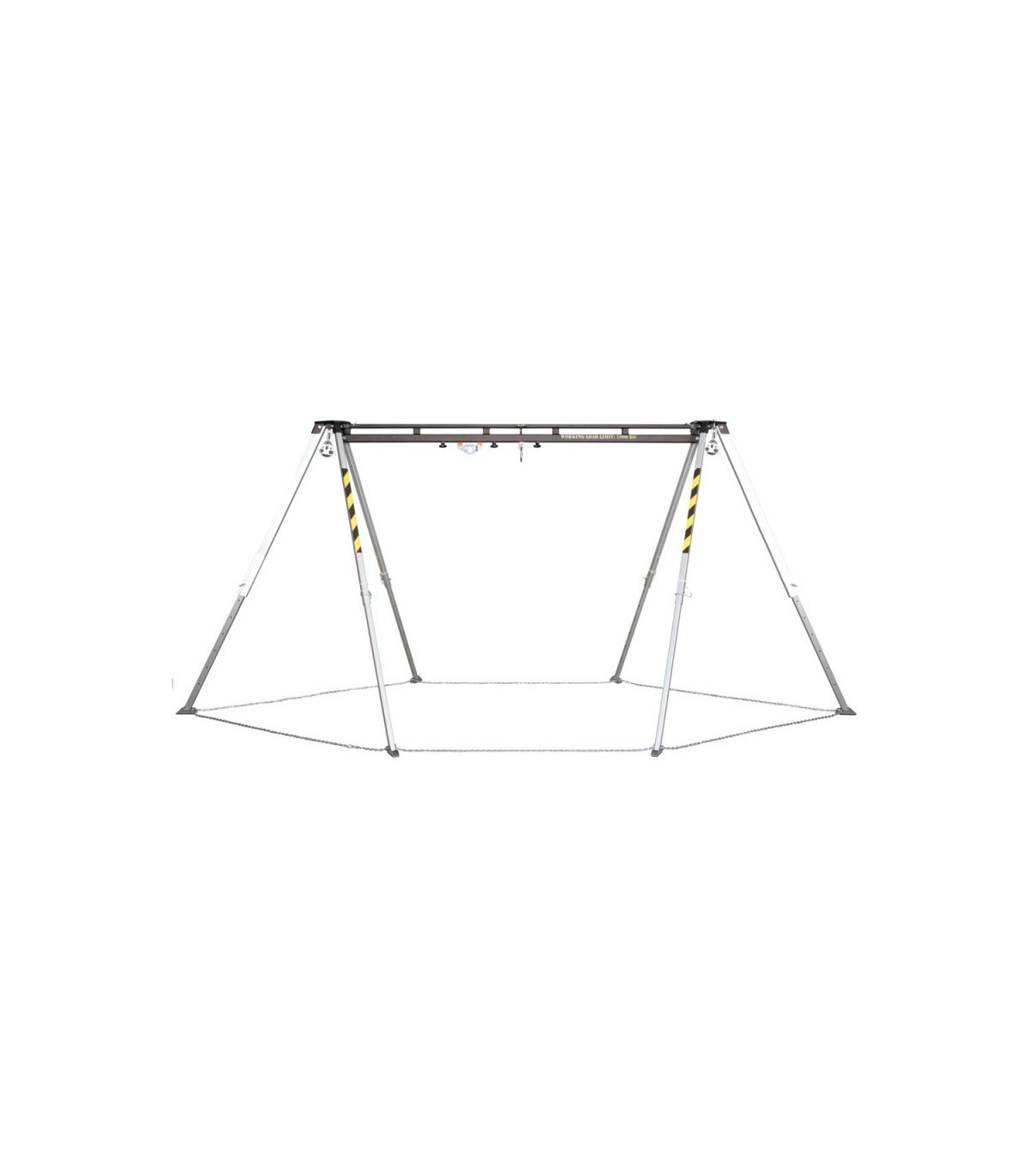

Steel Spider Tripod for two users SAFETOP. The steel Spider Tripod for two users SAFETOP is a personal protective equipment (PPE) of category III, designed as a hexapod safety tripod that is part of individual fall protection systems. This robust tripod consists of two independent main tripods and a beam 3 meters long, providing a stable and reliable structure to secure the protection of up to two users during work at height, thus ensuring their safety during operations.

FEATURES

• PPE of category III. Hexapod safety tripod.
• Element of individual fall protection systems.
• Composed of two independent main tripods and a beam with a length of 3 m.
• Consists of:
• Main tripod head: made of galvanized and painted steel. The head is equipped with a stainless steel ring for pulley mounting. The head has a pin for beam mounting.
• Beam: made of galvanized and painted steel profile. The hexapod beam has two trolleys (“A” and “B”) and a beam anchorage point. The position of the trolley is determined with T-locks.
• Legs: the telescopic construction of the legs allows the user to adjust their length. To adjust the length of the legs, the system is equipped with wedges and pins. The legs are equipped with self-aligning steel bases with rubber washers. The legs have anti-slip “teeth”.
• Chain: the legs are connected with a chain to minimize horizontal forces and the displacement or folding of the legs.

BENEFITS

Adjustable aluminum legs (7 adjustment points).

APPLICATIONS

The Steel Spider Tripod for two users SAFETOP is suitable for:

• Wells
• Sewage
• Tanks
• Silos
• Construction
• Engineering projects
• Industry

TECHNICAL DATA

• STANDARDS: EN795 Class B (Transportable provisional anchors) CEN/TS 16415
• WEIGHT: 86 kilos
• MATERIALS: Stainless steel, galvanized steel

REGULATIONS

- EN 795 Class B: The EN 795 Class B standard establishes safety requirements for anchorage systems used in work at height, ensuring their strength and reliability to protect workers.

- TS 16415: This technical standard focuses on the design and evaluation of anchorage systems used for work at height. It provides guidelines on how these systems should be designed, installed, and maintained to ensure the safety of workers. TS 16415 establishes specific criteria for the strength and durability of anchors, as well as tests that ensure their effectiveness in real situations, thus minimizing the risk of falls.
