SAFETOP rescue tripod for 2 people class B Spider

Tripod for the rescue of people in hard-to-reach places and for lifting loads. It has 4 fixed anchor points and 2 mobile anchor points.

The device provides protection for a maximum of 2 users or allows lifting loads of up to 1000 kg.

FEATURES

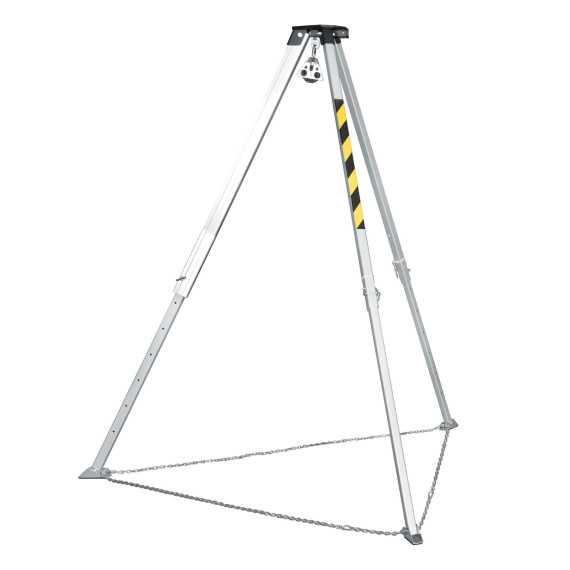

• Equipped with a tripod with a steel head that can be used independently with 2 anchor points.

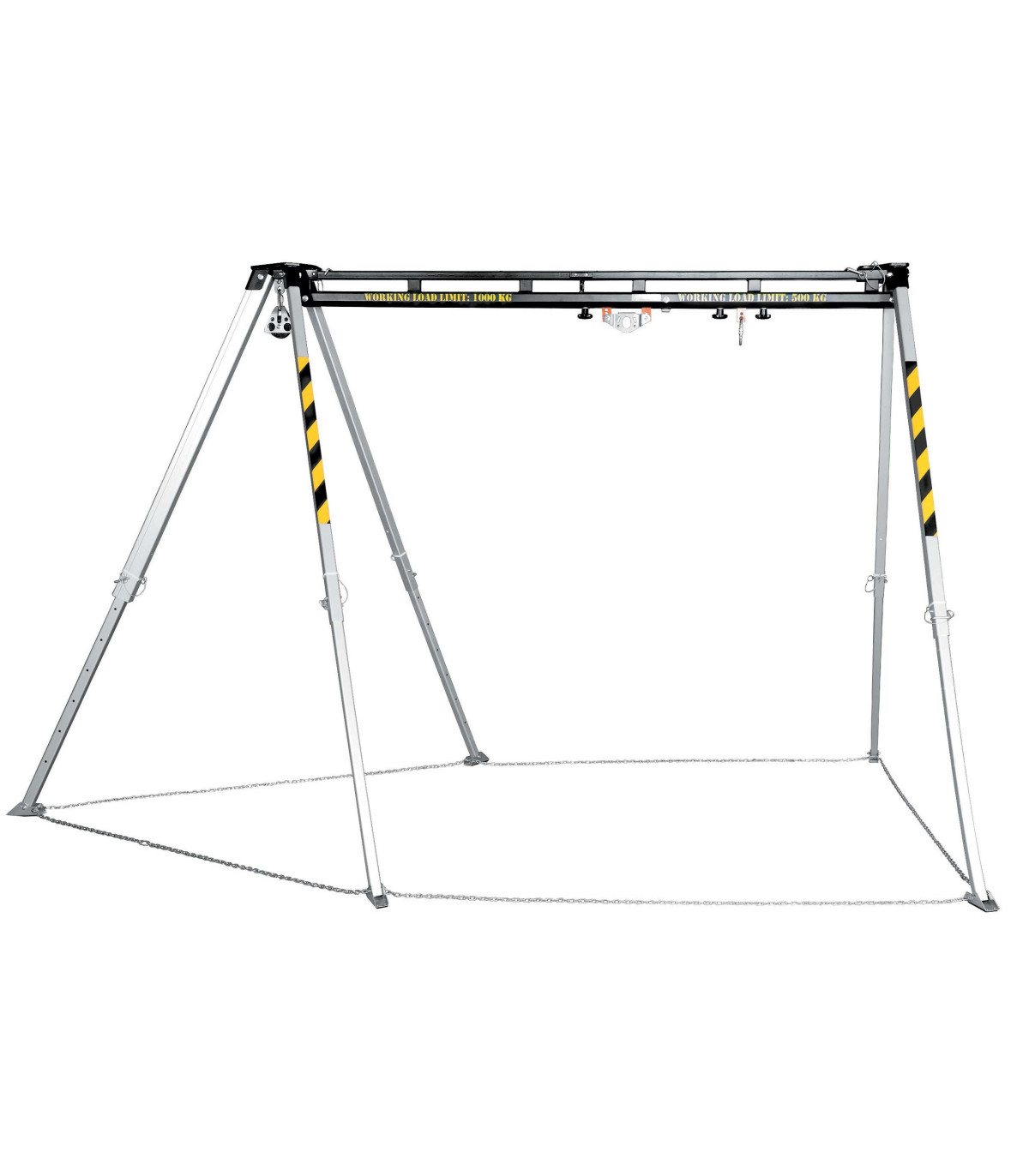

• Telescopic aluminum legs with 7-point adjustment and a steel beam with a length of 230 cm, which serves as a guide for moving carts.
• The legs are secured by means of a steel chain.
• When working with winches, the use of the IS PL 101 pulley mounted on the tripod head is necessary (except when using the CRW300 + AZ017 set).
• Certified after winches:

RUP502-A

RUP502

CRW300 + AT172

CRW300 + AZ017

• Material: Aluminum
• Weight: 72 kg (without accessories)

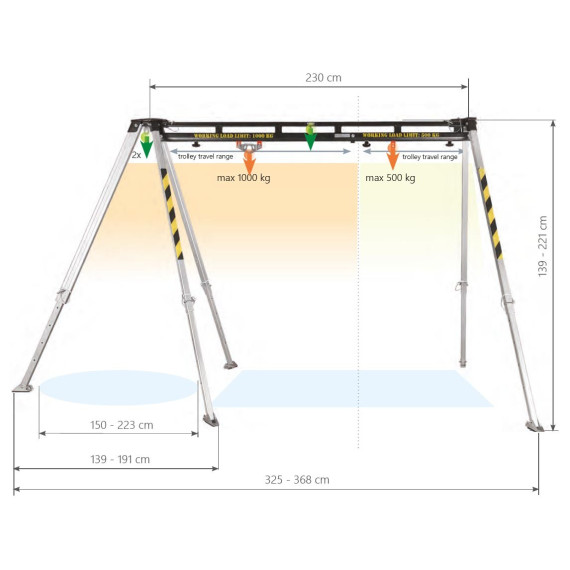

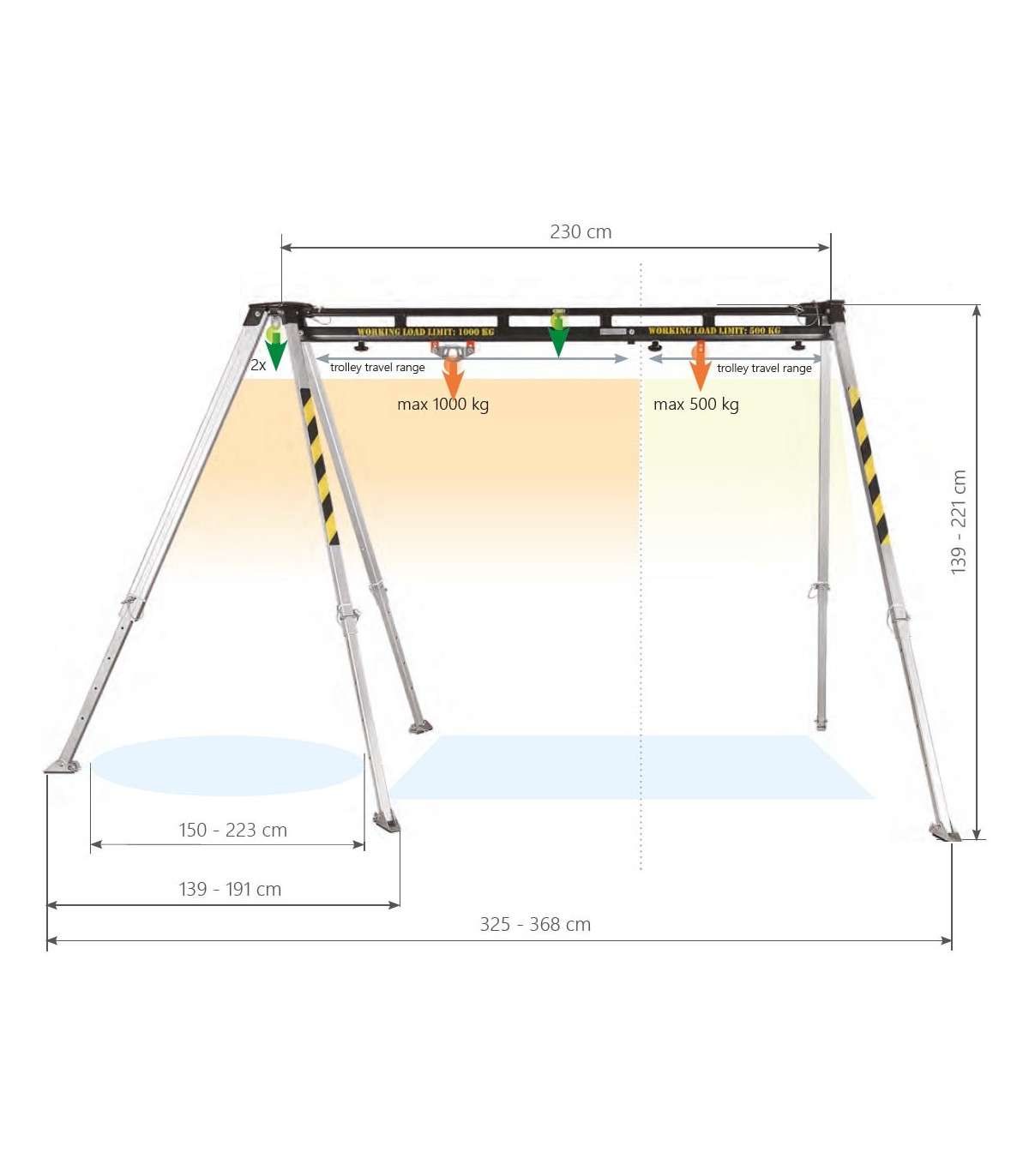

• Transport dimensions: 254 x 33 x 33 cm
• Working height: 139 - 221 cm
• Circumscribed circle: 150 - 223 cm
• Length: 325 - 368 cm
• Working load: max. 1000 kg of goods
• Mobile anchors: 2
• Fixed anchors: 4
• Simultaneous lifting / lowering of a maximum of 2 people
• Approved for use in potentially explosive atmospheres
• TRIPOD ONLY VERSION
• The tripod is part of the TM12 SPIDER tripod.
• The tripod can be used with a working load of 1,000 kg or as protection for 1 person.

PRODUCT MADE TO ORDER, NO ORDER CANCELLATION OR RETURNS ALLOWED. APPROX. DELIVERY TIME 1 WEEK.

MATERIALS

Aluminum

TECHNICAL DATA

• Opening diameter: 150-223 cm
• Space between legs: 139-191 cm
• Weight: 86 kg
• Load capacity: 1000 kg
• Transport dimensions: 251x36x31
• Working height: 139-221 cm

EN 795 Class B (transportable traditional anchors)

EN 16415 Class B (professional anchor points)
