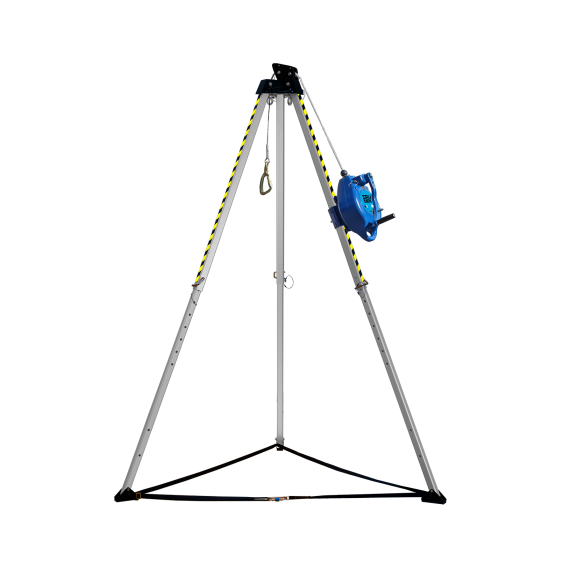

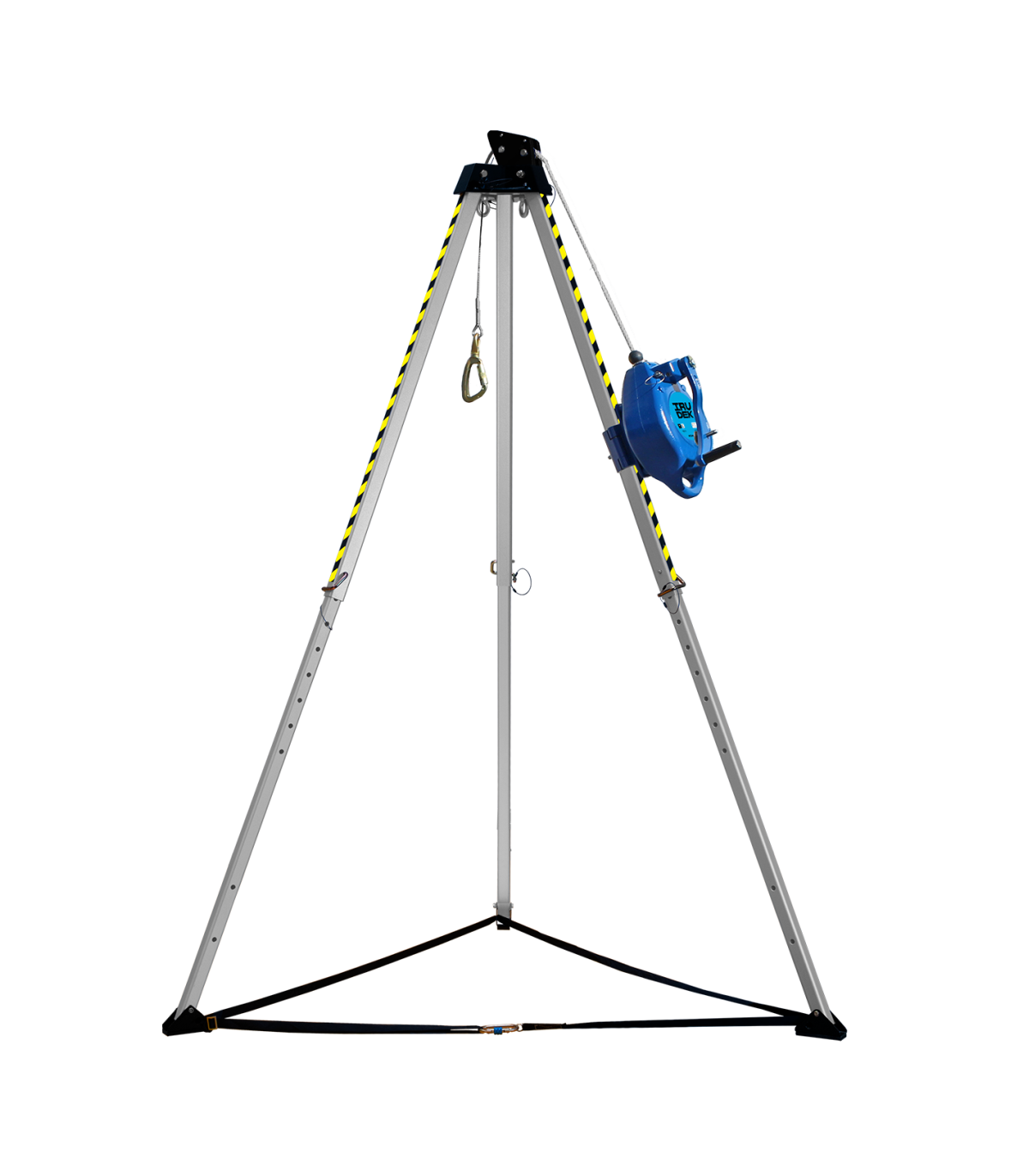

Aluminum anchor tripod kit with fall protection Koala 15M IRUDEK TRIP 11

Aluminum anchor tripod kit with fall protection Koala 15M IRUDEK TRIP 11

The kit contains:

1 ALUMINUM TRIPOD TRIP1 REF. 0840047 (SAP CODE: 100209600001) WITH 1 PULLEY AND CARRYING BAG

1 FALL PROTECTION DEVICE WITH RECOVERER KOALA 15M,

REF. 0860058 (SAP CODE: 100301900003)

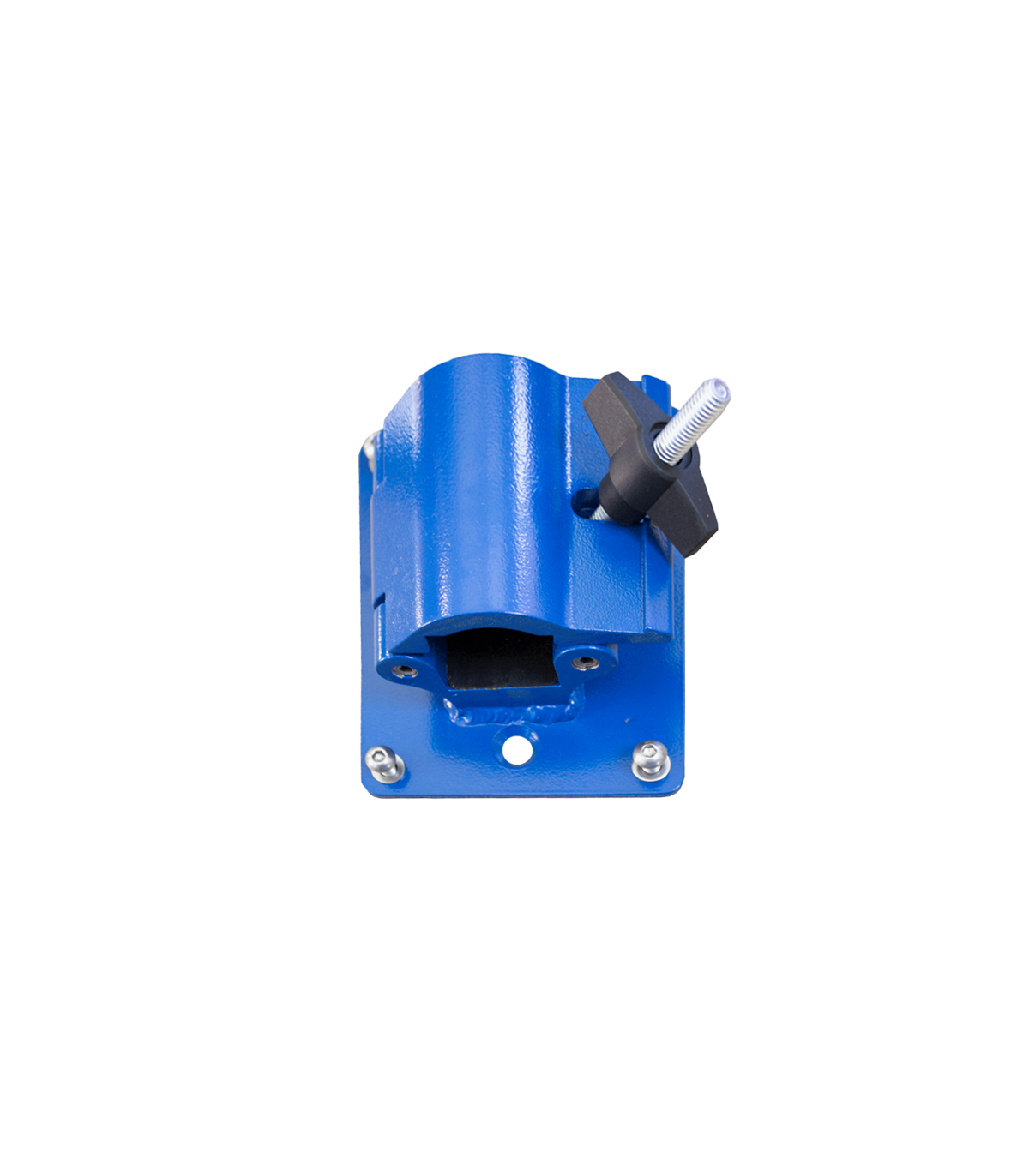

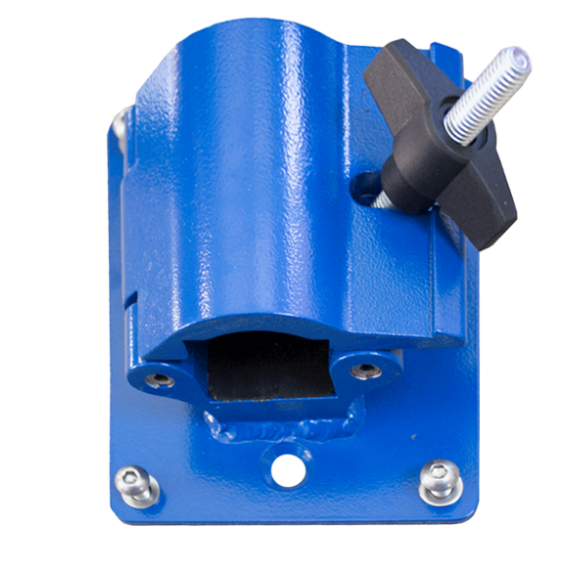

1 FIXING PLATE

REF. 0860059 (SAP CODE: 100300300004)

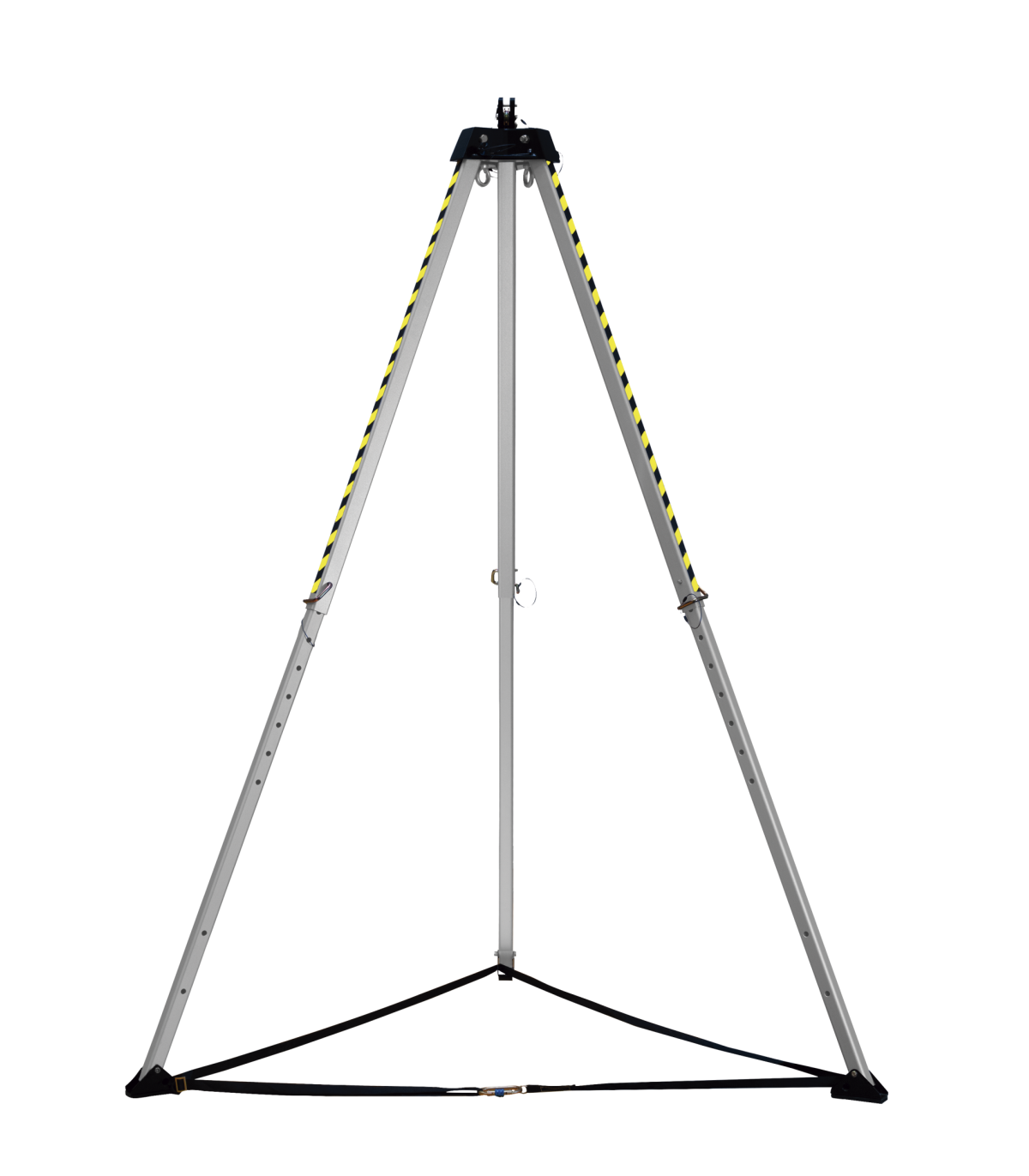

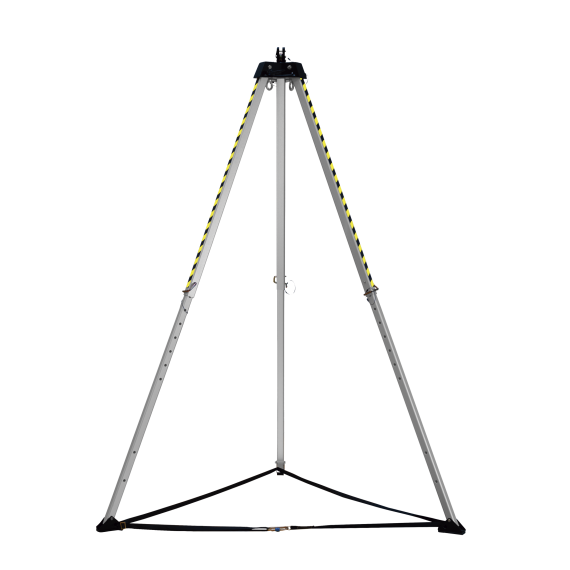

TRIPOD TRP1 FEATURES

• Aluminum alloy head: to provide robustness and durability to the equipment.
• Built-in pulley: for a stiffer operation of the winch (Trip 1).
• and different working variables.
• 2 aluminum anchor rings: to incorporate up to two devices (at least 1 fall protection device).
• Aluminum legs: superior lightness.
• Robust: supports loads of up to 500kg.
• Non-slip rubber: for optimal support.
• Safety strap: prevents involuntary movements of the legs.
• Certified for work in explosive atmospheres ATEX II 2G Ex h II cT6.
• Includes carrying bag.

HEAD

It has 1 pulley and 2 anchor rings for connection to fall protection systems EN 363.

ADJUSTABLE LEGS

The telescopic construction of the legs allows adjusting the height of the tripod to 9 different heights. The legs are adjusted using the pins on each leg.

CHAIN

The base chain is necessary to maintain the position of the tripod legs and distribute the loads applied during the use of the device.

WARNING:

The chain may cause a trip hazard for anyone near the tripod.

BAG

The carrying bag is made of nylon and is designed to protect the tripod during transport and storage.

TECHNICAL DATA

• Diameter (m): 0.8-1.8
• Weight (kg): 12.1
• Height (m): 1.15-2.15
• Load capacity: 500 kg
• Anchor rings: 2
• Number of pulleys: 1
• Total heights: 7
• Service life: Unlimited

MATERIALS

• Head: Aluminum alloy
• Rings: Aluminum
• Legs: Aluminum
• Non-slip leg: PVC rubber
• Safety strap: Polyester

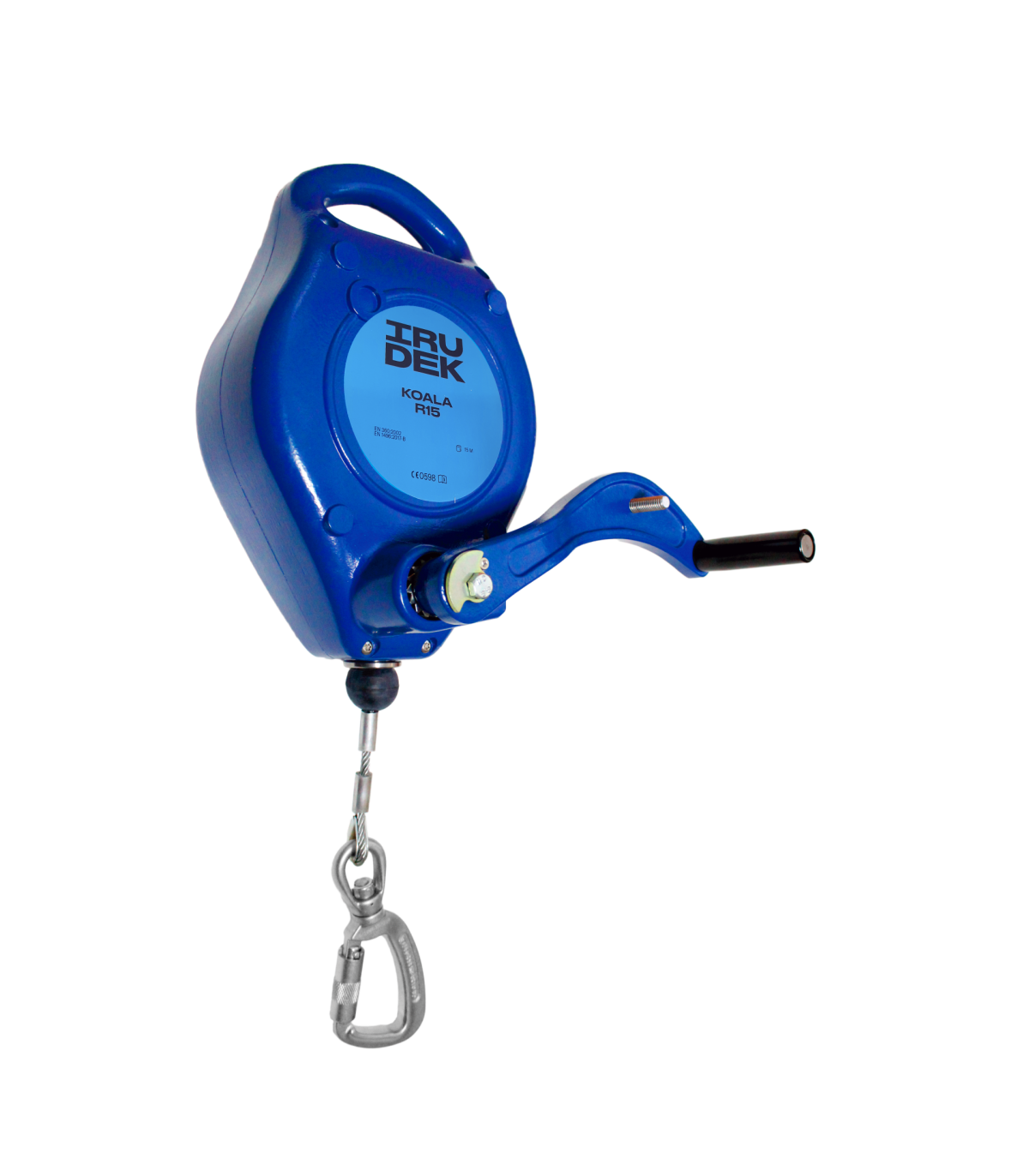

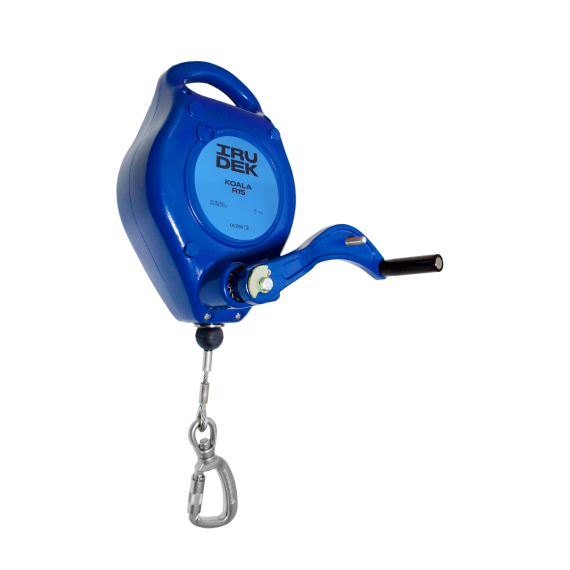

KOALA R15

USAGE LIMITATIONS

-The equipment must be assigned individually to a person.

-It is recommended that the anchor point where the fall protection system will be fixed is above the user. The anchor point must have a minimum static resistance of 12kN and must comply with the requirements of Standard EN 795.

-Personal protective equipment should not be used by individuals whose health status may affect the safety of the user under normal use conditions or in case of emergency.

-Personal protective equipment should only be used by a trained and competent person in its safe use.

SERVICE LIFE

The estimated service life of the equipment is unlimited. The following factors may reduce the product's service life: intensive use, contact with chemicals, particularly aggressive environments, exposure to extreme temperatures, exposure to ultraviolet rays, abrasion, cuts, strong impacts, or improper use and maintenance. The mandatory annual review will validate the correct functioning of the equipment.

It is mandatory for the equipment to be examined by the manufacturer or an authorized person at least once a year. In the event of a fall, the equipment must be removed from use.

STANDARDS/ REGULATIONS

Complies with the requirements of the Personal Protective Equipment (PPE) Regulation/Directive:

• EN 795 B
• ATEX II 2G
• Ex h II c T6
