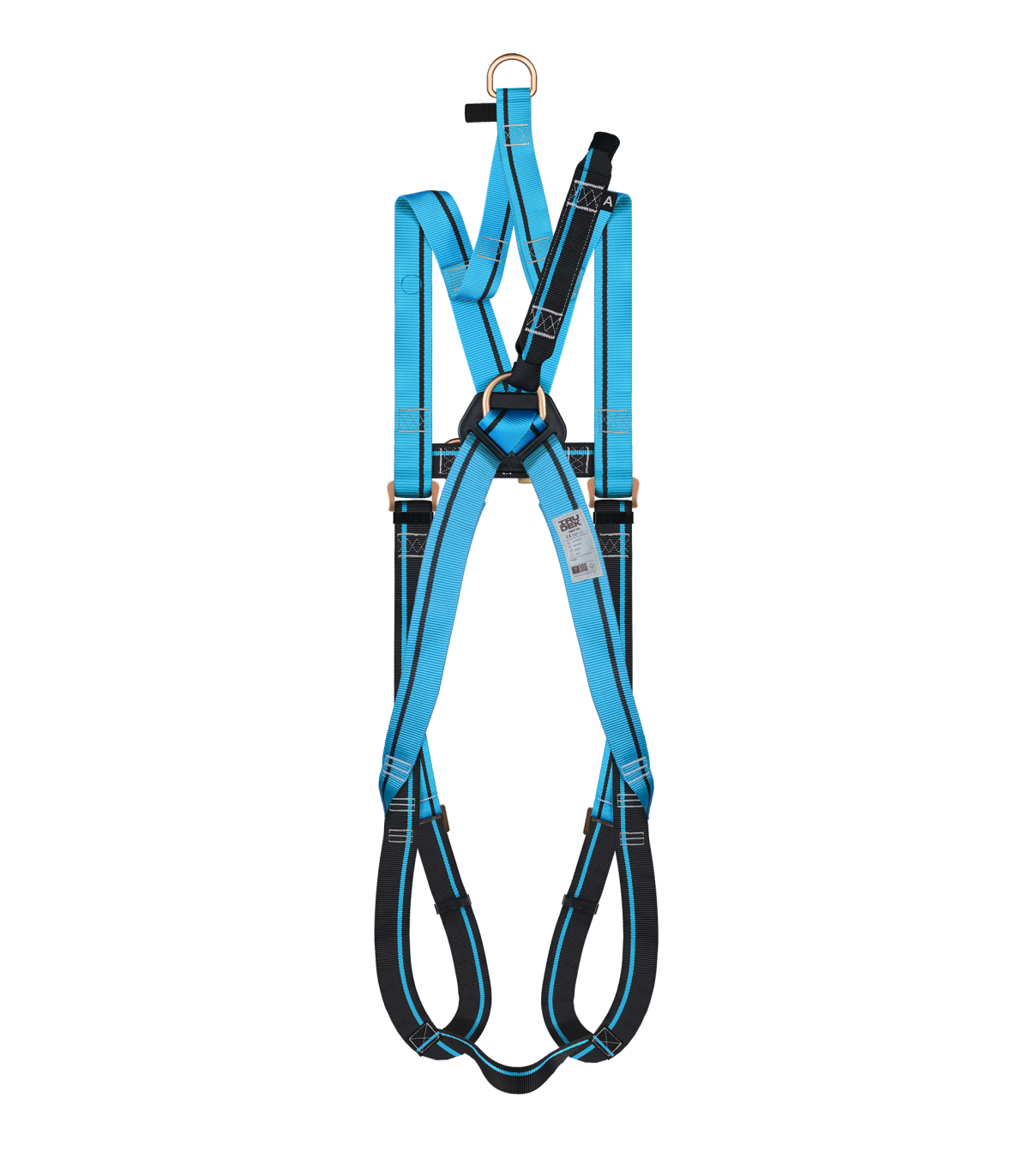

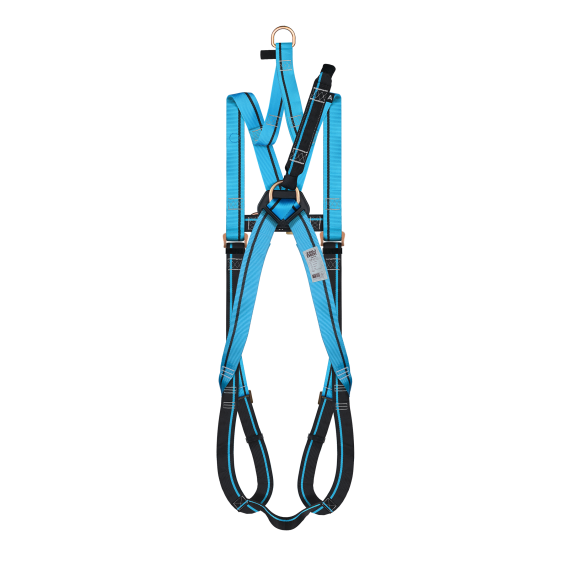

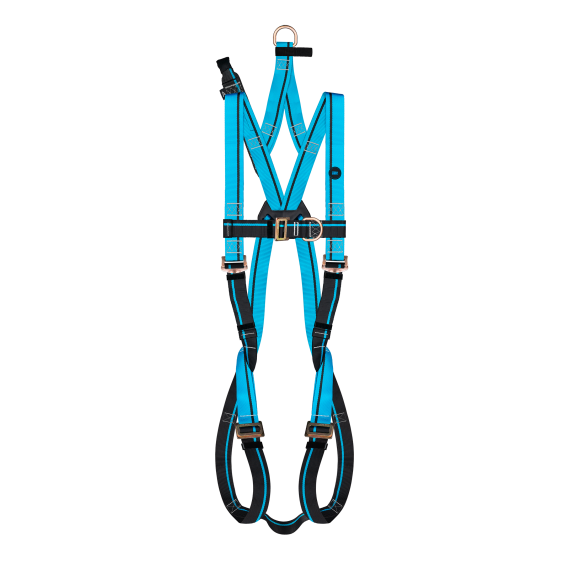

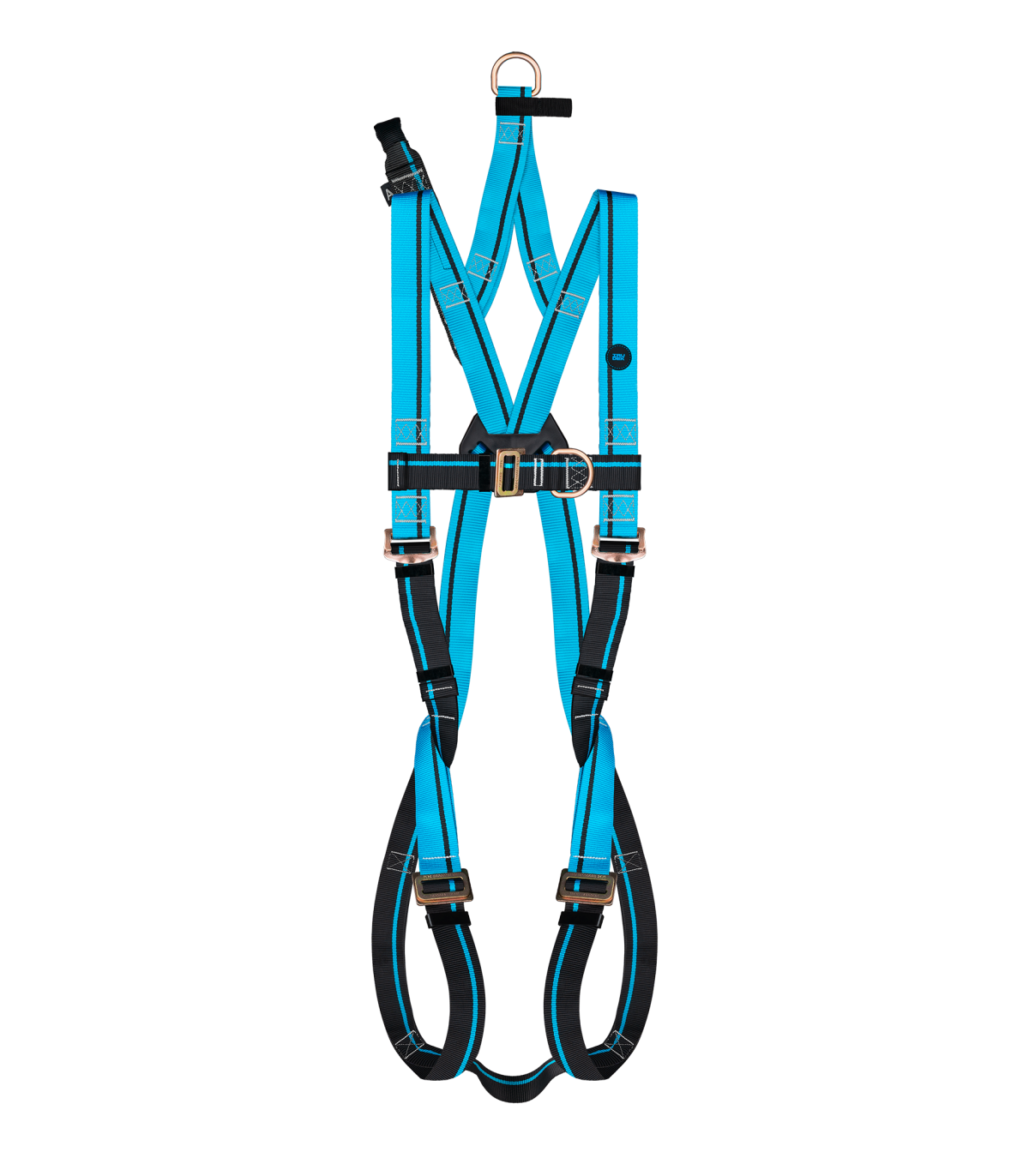

Harness with dorsal anchor for fall protection Light Plus 14 IRUDEK

Two-color harness with 1 dorsal anchorage point + sternal anchorage point + extension strap provided with a “D” ring to connect to rescue equipment, thus facilitating and minimizing any discomfort to the worker during this process.

The rescue extension strap is attached to the shoulder strap via Velcro when not in use. Adjustable at shoulders and thighs. Pelvic strap.

FEATURES

• Dorsal anchorage for fall protection
• Adjustable at legs and chest
• Steel buckles with salt spray resistance of 120 hours, against the 72 hours required by standard.
• Includes extension strap
• Anchorage ring for vertical rescue
• Adjustable at shoulders and leg straps
• Manufactured in two colors for better differentiation between the upper and lower parts
• Plastic protections at the ends of the straps

TECHNICAL DATA

• Weight: 1425 gr
• Usage capacity: 140 Kg
• Harness resistance: 15 > kN
• Antislip System: No
• Automatic buckles: No
• Padding: No
• Strap width: 44 mm
• Size: UNIVERSAL

PACKAGING DATA

• Weight: 1425 gr
• Units/box: 5
• Pack width: 28 cm
• Pack depth: 24 cm
• Pack height: 13 cm

MATERIALS

• Strap: Polyester
• Thread: Polyamide
• Rings: Steel
• Buckles: Galvanized steel

SIZE GUIDE

*Measurements expressed in centimeters

*Approximate measurements

STANDARDS/REGULATIONS

Meets the requirements of the Regulation/Directive on Personal Protective Equipment (PPE)

- EN 361

- EN 1497

APPLICATIONS

For work at height

Securing and positioning

USAGE LIMITATIONS

The equipment must be assigned individually to a person.

- It is recommended that the anchorage point where the fall protection system will be fixed is above the user. The anchorage point must have a minimum static resistance of 12 kN (metal) or 18 kN (textile) and must comply with the requirements of Standard EN 795:1996 / EN 795:2012.

- Personal protective equipment should not be used by individuals whose health status may affect the safety of the user under normal use conditions or in case of emergency.

- Personal protective equipment should only be used by a trained and competent person in its safe use.

WARNING

- A fall arrest harness is the only acceptable body restraint device that can be used in a fall protection system.

- The fall protection system must only be connected to the connection points of the harness that carry an identification with the capital letter “A”. The identification “A/2” indicates that it is necessary to connect two connection points with the same identification at the same time. It is prohibited to connect the protection system to a single connection point identified with “A/2”.

- In harnesses with an integrated belt, the connection to equipment for positioning work must only be made to the lateral anchorage rings of the belt.

- The connection to the anchorage point and to other equipment must be made through carabiners in accordance with EN362:2004.

- For use with fall protection EN 353-1:2014+A1:2017, EN 353-2:2002 it is recommended to connect the equipment to the frontal anchorage point of the harness. For use with energy absorbers EN 355 or with fall protection EN 360, it is recommended to connect the equipment to the dorsal anchorage point of the harness. - Before each use of the personal protective equipment, it must be carefully checked to ensure that it is in usable condition and functions correctly.

- During the pre-use check, it is necessary to carefully inspect all elements of the equipment to verify that they do not show signs of deterioration, excessive wear, corrosion, abrasions, UV radiation degradation, cuts, and incorrect usage. Pay special attention to the straps, seams, anchorage rings, buckles, and adjustment elements.
