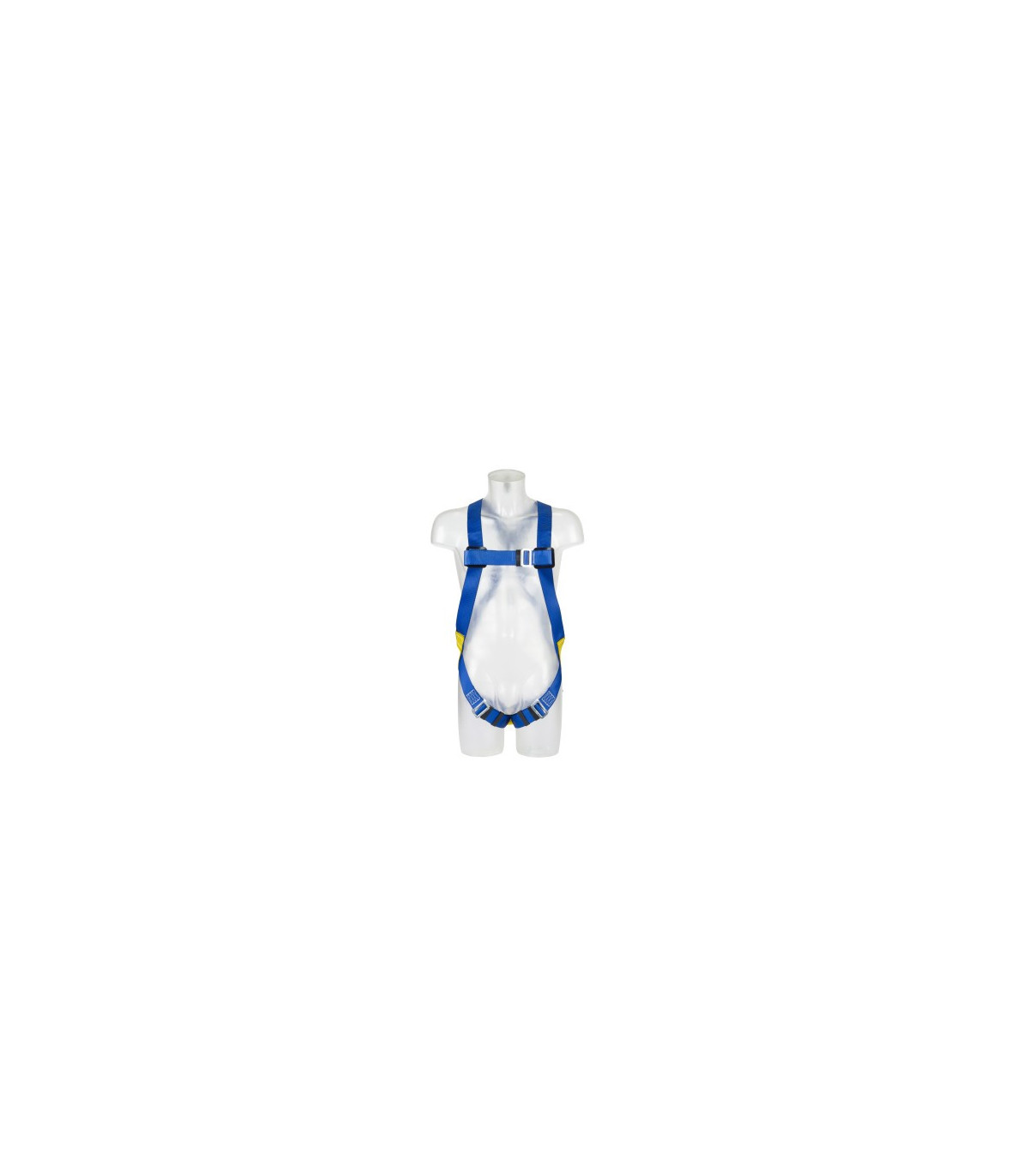

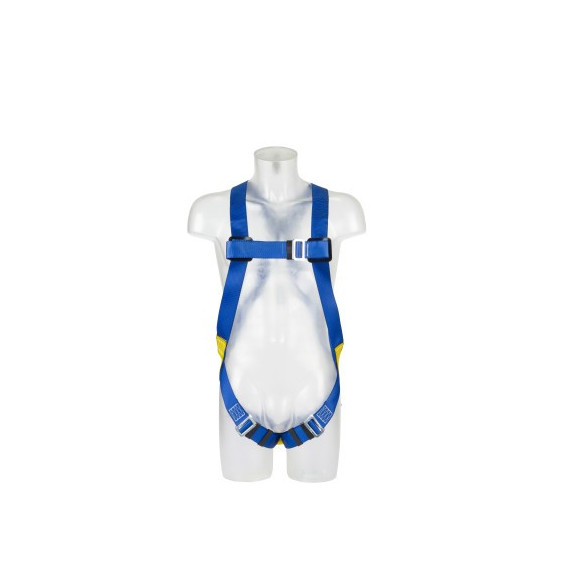

Safety harness with rear anchor point 3M Protecta First Harness

Safety harness with rear anchor point 3M Protecta First Harness. Rear anchor point, leg and chest adjustments, and standard buckles. D-rings on the back. Weight: 0.95 kg

• Cost-effective, high quality, and reliability for working at heights
• Large back plate for easy and efficient placement
• Contrasting straps on shoulders and legs for quick placement. Covered identification labels

Delivery: 5 to 10 working days

FEATURES

• Large back plate

  For easy and efficient placement
• Contrasting shoulder and leg straps

  For quick and easy placement
• Covered identification labels

  Protects labels during the harness's lifespan

TECHNICAL DATA

Enhanced straps: Abrasion-resistant and water-repellent to reduce mold and dirt buildup.

Hook storage for the lanyard: Prevents having to carry the lanyard in hand when not in use.

Comfort pads: On the underside of the shoulder, hip, and leg straps. TM® Harness 3M DBI-SALA

Quick-connect buckles: Lightweight aluminum alloy buckles for quick and easy connections. (There are also models with pass-through buckles).

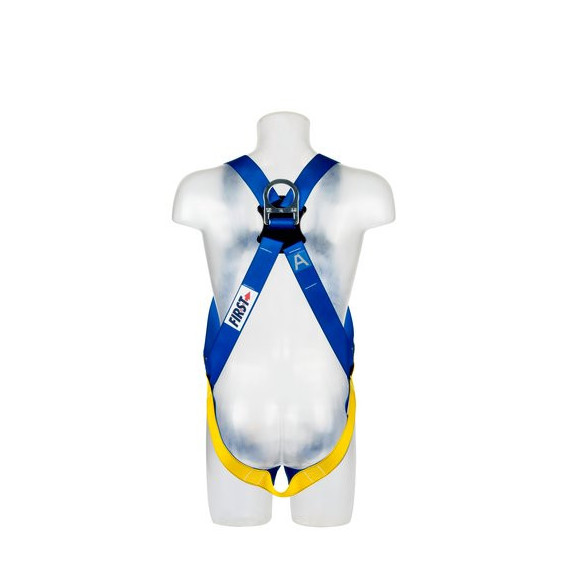

Vertical D-ring on the back: The vertical D-ring on the back ensures quick, easy, and secure connections to your fall arrest system. Rigid belt: Allows carrying 27 kg of tools without breaking. Protected labels: Harness labels protected with hook and loop closure.

USAGE INSTRUCTIONS - ADJUSTING THE FALL ARREST HARNESS

Before starting. Empty your pockets, as during work or, more importantly, in the event of a fall, objects in your pockets can get caught between the harness straps and the user's body causing injury. Always refer to the usage instructions provided with the specific harness regarding proper installation and adjustment.

Step 1. Start. Hold the harness by the D-ring on the back, which is often attached through a D-pad, and ensure that the straps are not twisted.

Step 2. Shoulder straps. Slide the harness over your arms and place it on your shoulders. Ensure that no strap is tangled and that they hang freely.

Step 3. Leg straps. Place it between your legs and secure the leg strap on your left side. Raise the strap between your legs and connect it with the left-side buckle. Connect the right leg strap using the same procedure.

Step 4. Chest straps. Attach the chest strap buckle to the corresponding opposite side buckle.

Step 5. Waist strap (if equipped). Attach the waist strap buckle to the corresponding opposite side buckle.

Step 6. Adjust the harness to fit snugly. Adjust the shoulder straps until they are tight with the adjusters. The left and right sides of the shoulder straps should be adjusted to the same length, and the chest strap should be centered at the bottom of the chest, about 15 cm below the shoulder. The chest D-ring on the vest-style harness moves up or down by adjusting the shoulder and leg straps. Center the back D-ring between the shoulder blades. Note: In applicable models, the back D-ring can be raised or lowered on the harness strap as needed to achieve a proper fit. Readjust the leg straps to ensure they are tight. There should be at least 8 cm of strap beyond the buckle on the leg straps. Adjust the waist strap (if equipped).

You are ready! A properly placed and adjusted full-body harness will effectively distribute impact forces across the body and provide proper support during suspension and rescue after a fall.

REGULATIONS

EN 361: 2003 - Personal protective equipment against falls from height. Fall arrest harnesses

EN 365: 2005 - Personal protective equipment against falls from height. General requirements for instructions for use, maintenance, periodic inspection, repair, marking, and packaging.

RECOMMENDATIONS FOR THE COMPLETE PPE SET

Do not use this safety equipment unless you have received training from a competent person (this training can be repeated as often as necessary). Contact CAPITAL SAFETY for information about classes or if you have questions about using this equipment. Training should be conducted without exposing the user to a fall hazard and should be repeated periodically. (See the complete guide in the usage instructions).
