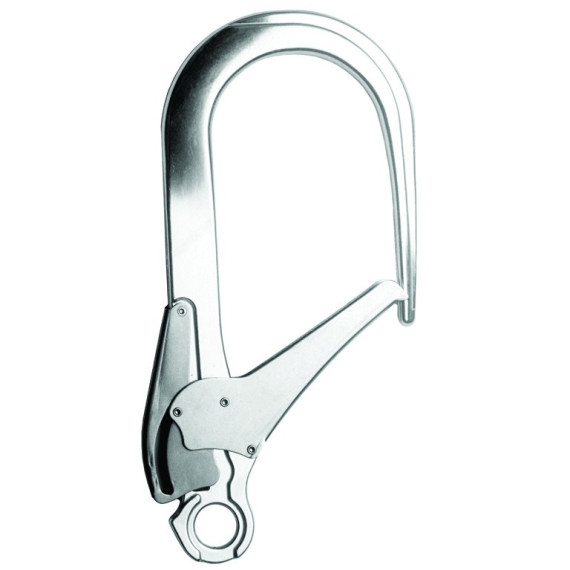

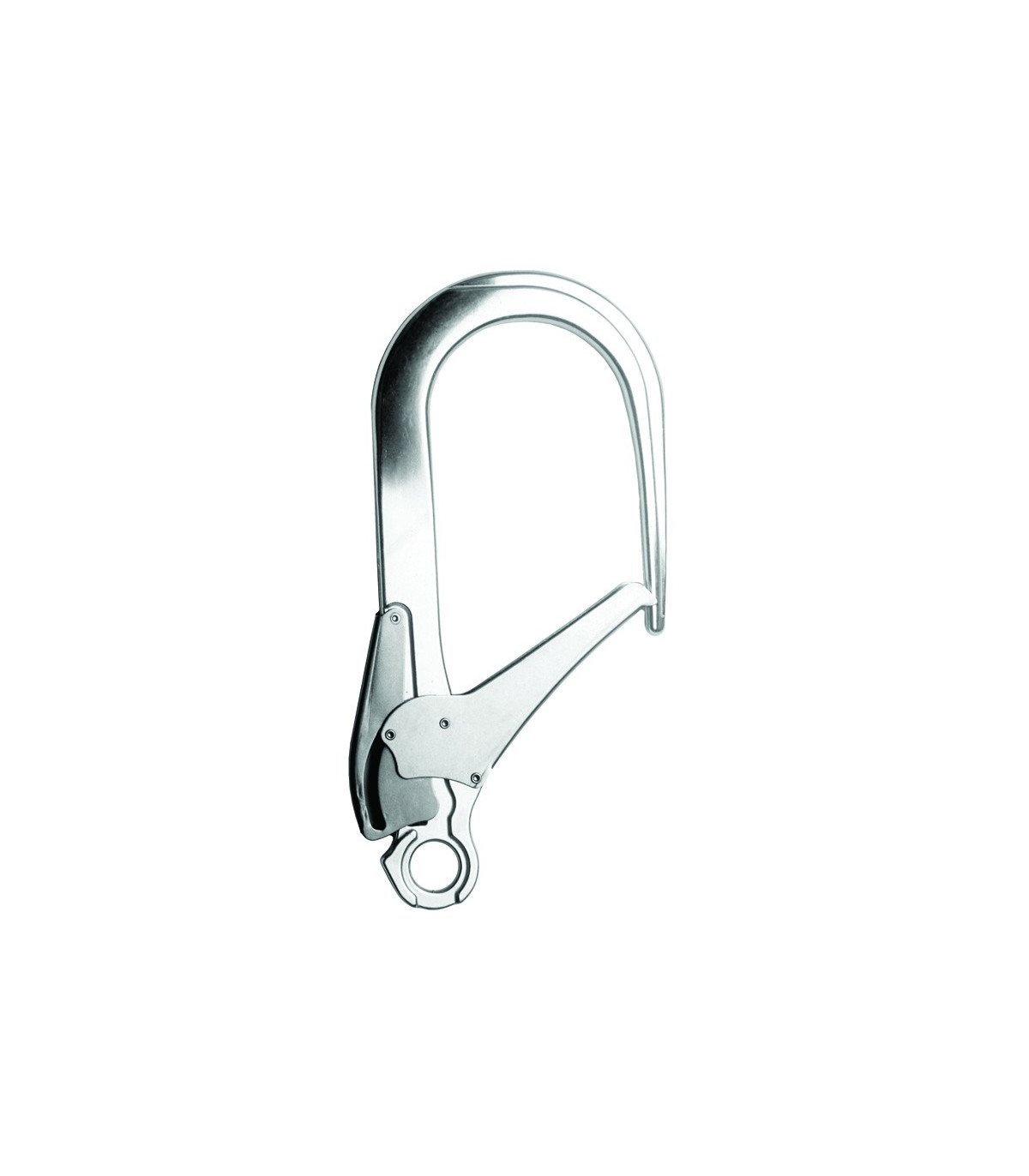

Aluminum hook with automatic double safety closure SAFETOP

Quick-opening carabiner with a locking strap mechanism at the back and an opening of 110 mm.

FEATURES

• Opening: 100 mm
• Material: Aluminum
• Weight: 950 g
• Dimensions: 360 x 165 mm
• Minimum static strength: 22 kN
• Compliant with: EN 362
• Suitable for large diameter metal tubes or beams

TECHNICAL DATA

• Material: Aluminum
• Opening: 110 mm
• Dimensions: 360 x 165 mm
• Strength 22 kN
• Weight: 950 g

APPLICATIONS

Class A anchor connector: Automatic closure connector. It is used as a component to hook directly to a specific type of anchor.

To reduce the possibility of accidental opening, which could pose a danger, hooks, like the carabiners, must have an automatic closure and an automatic or manual lock, requiring the user to perform at least two consecutive manual actions voluntarily to unhook. However, it should be noted that when using hooks with manual locking, they should only be used in cases where the worker does not need to connect and disconnect the hook repeatedly during the workday.

PPE FOR WORK AT HEIGHT

The Hook Ø 110mm aluminum with automatic double safety closure AZ024 is made of aluminum, with dimensions of 360 x 165 mm and a weight of 950 grams. Its opening is 100 mm, it has a minimum static strength of 20 kN, and it complies with the EN 362 standard, making it suitable for large diameter metal tubes or beams.

The function of scaffold hooks is to allow the connection of different elements that make up the worker's protection system, ensuring that they are properly protected against the possibility of falling from a height, which could lead to an accident with potentially fatal consequences for the user.

Hooks are connectors that feature automatic closure and automatic or manual locking, serving to join or connect a fall protection device and/or an anchoring point. It should be noted that connectors should not have rough or sharp edges that could wear down by friction, cut, or damage ropes, or injure the worker.

CERTIFICATION

EN 362 Class A (Carabiners)

LIFETIME

Inspections: the equipment must be inspected every 12 months by an authorized person or by the manufacturer. Inspections must be recorded in the inspection sheet attached to the PPE along with the instruction manual.

The maximum lifespan is 5 years from the date of first use, unless the equipment is defective or has already been used to stop a fall, in which case it must be discarded immediately.

Cleaning: clean with water and soap not exceeding 30°C. Do not dry with heat. Lubricate the hinges and levers occasionally after washing.

PACKAGING

1 unit
