Universal for drill -1

Exclusive article that offers a screen with vertical opening and a double anchoring system. Equipped with a micro-switch in the rotation hinge.

· Protects the user from direct contact with the front part of the spindle rotation and the projection of chips and coolant.
· The structure consists of hexagonal arms with a wide range that provides greater adjustment.
· The screen features an innovative "click" vertical opening system that allows for 60° increments. This arrangement allows for total freedom of movement on the machine's work surface.

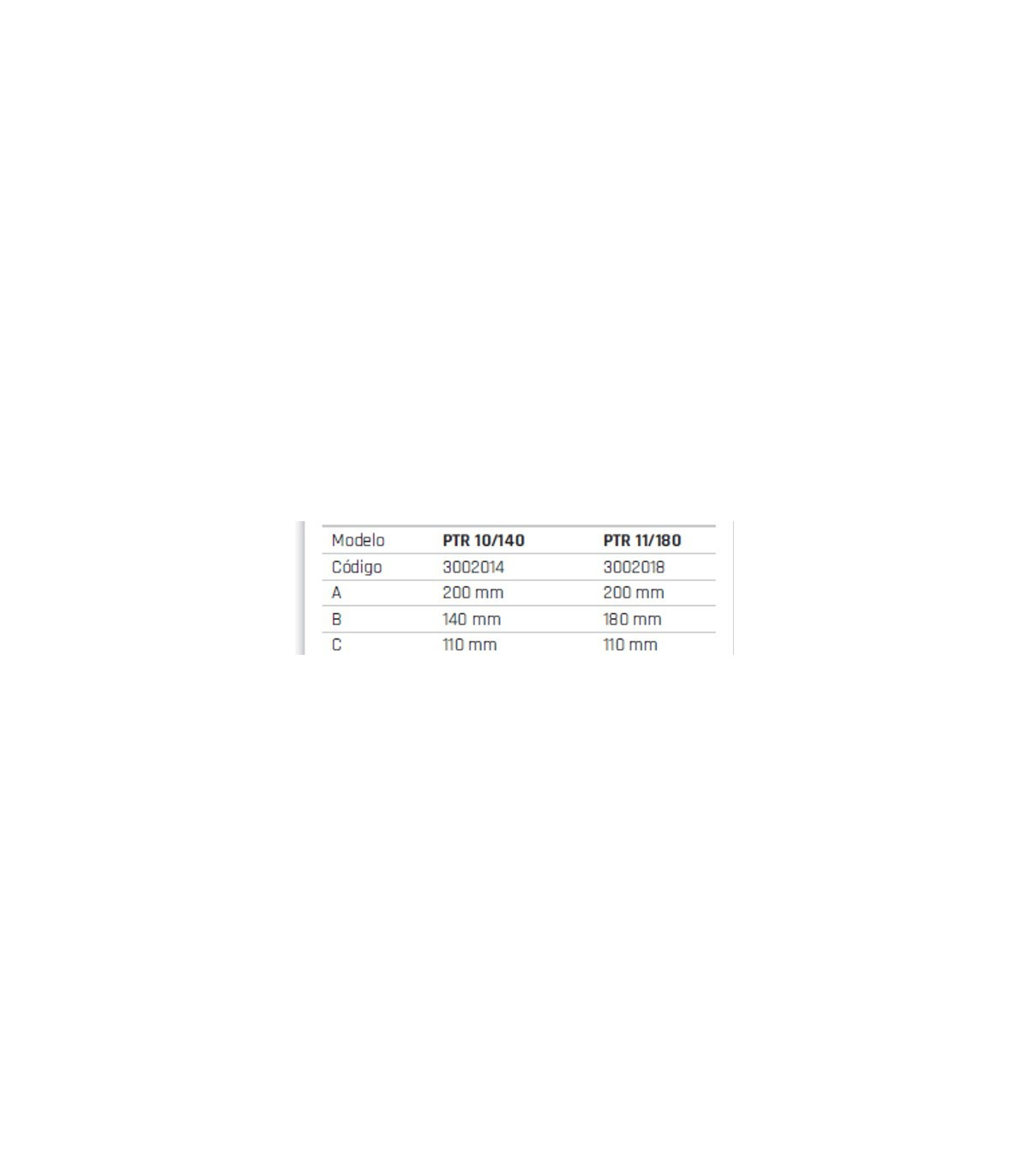

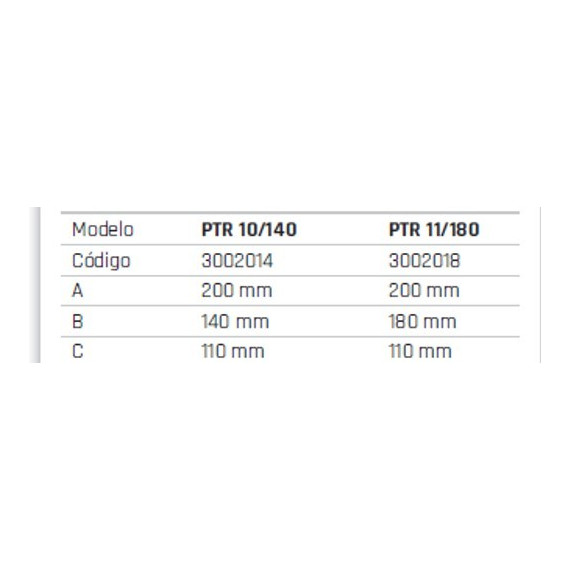

· Available in two versions:
  PTR 10 / ... = Fixed front version
  PTR 11 / ... = Fixed side version.
· The safety micro-switch is integrated into the special hinge that supports the screen.

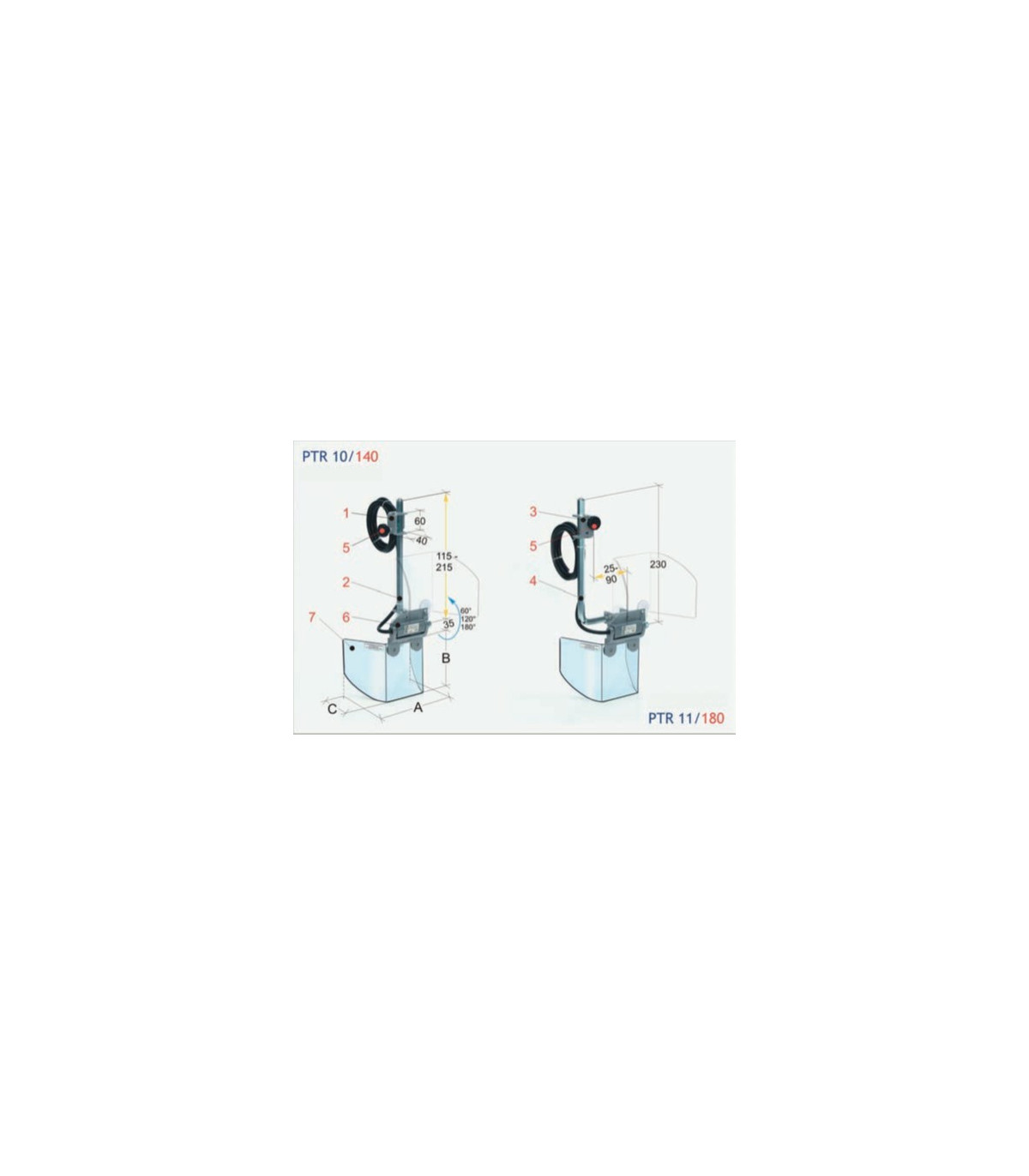

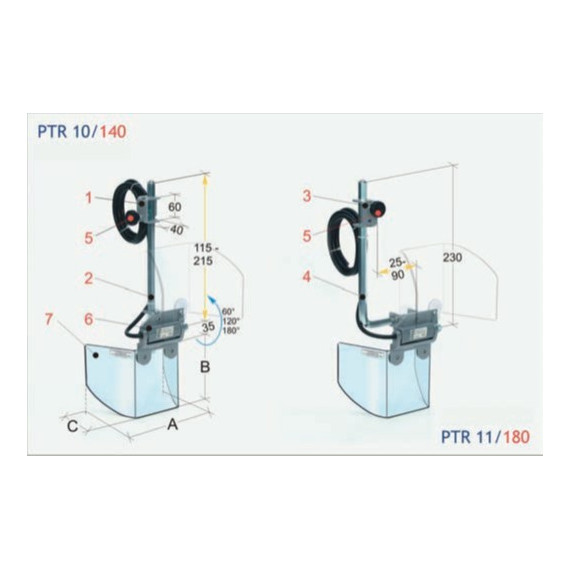

1 Anchor support, front version, stamped steel.
2 Support arm, front version, in hexagonal steel.
3 Anchor support, side version, in stamped steel.
4 Support arm, side version, in hexagonal steel.
5 Release handle for vertical adjustment of the screen.
6 Screen support hinge with integrated micro-switch. No. 2 NC contacts
7 Semi-hexagonal polycarbonate screen.
