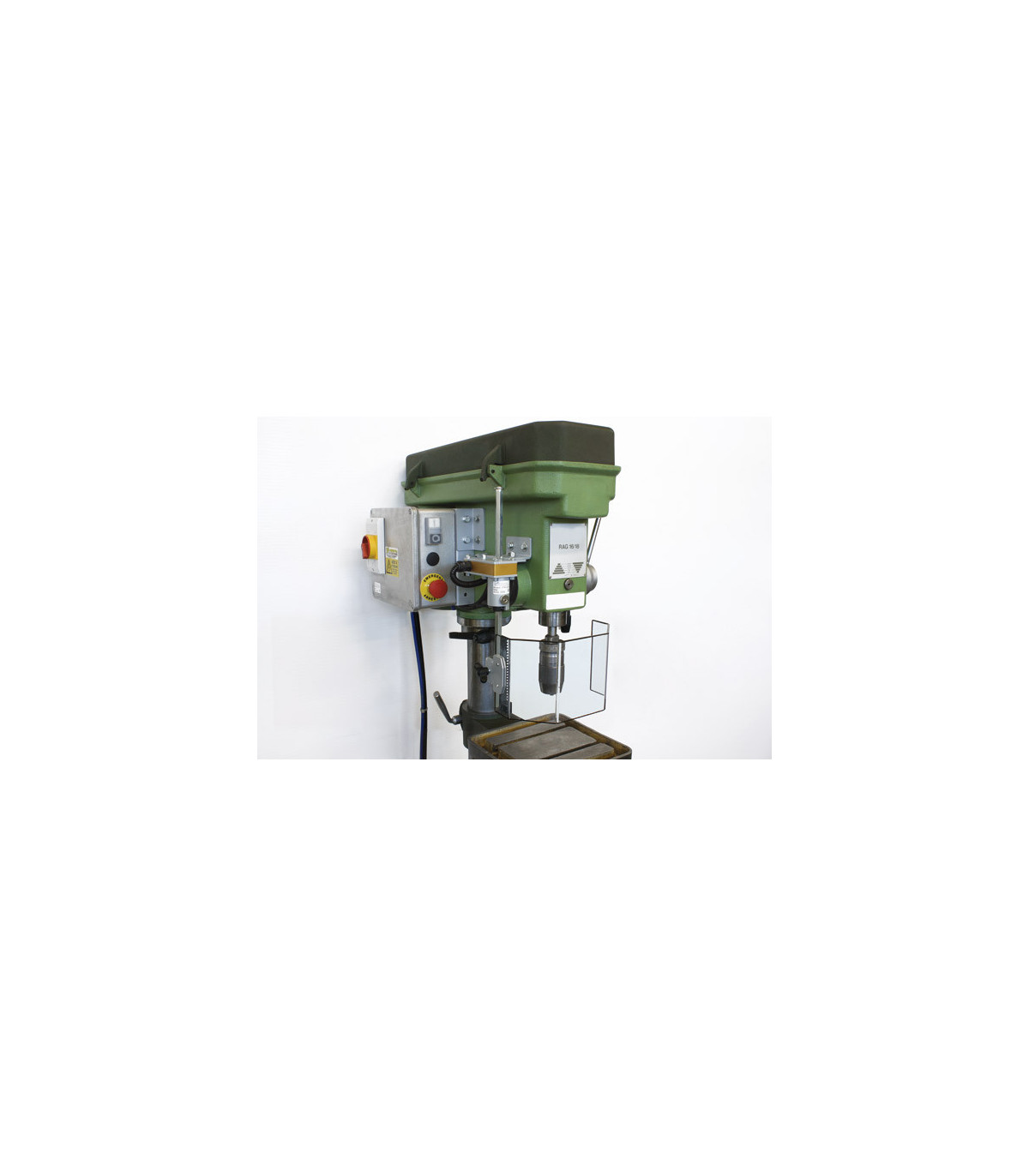

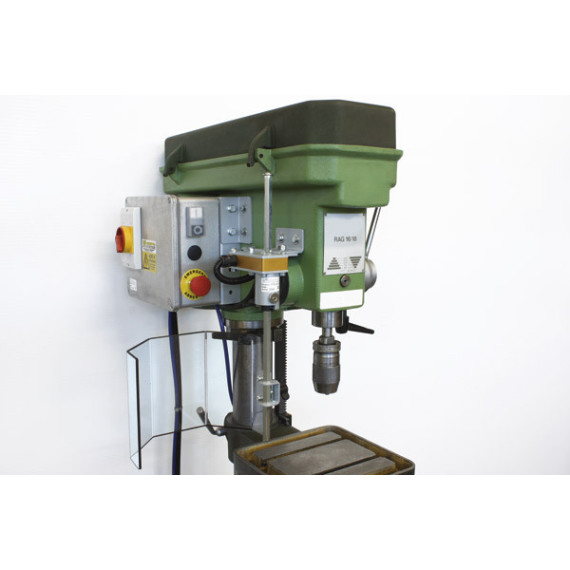

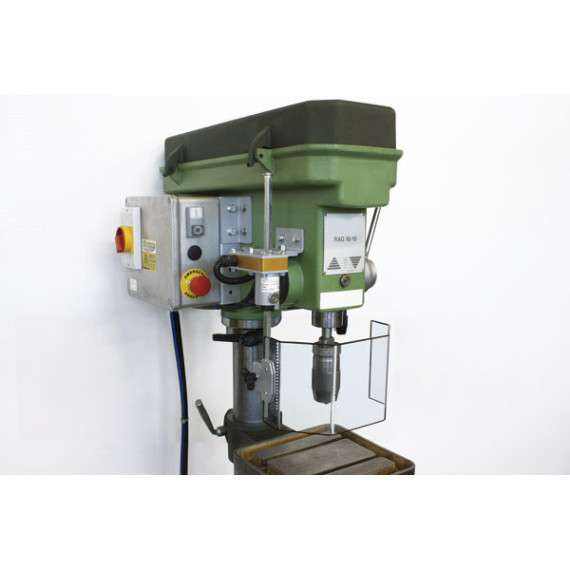

Universal Safety Guard for drill

Solid and versatile, the only one with double screen adjustment. Suitable for installation on traditional drills, pantographs, and similar machines.

· Protects the operator from direct frontal contact with the rotating parts of the spindle and from the projection of chips and lubricating coolants. It attaches to the left side of the machine.
· The semi-octagonal screen can be adjusted vertically through two different systems:
· Arm-screen group, adjustable via the micro switch group (point 4). The screen is adjusted with the arm (point 5).
· The screen support clamp can be placed on the inside (point 7) or on the outside (point 8), offering different possibilities for horizontal adjustment.
· Complete with safety micro switch.

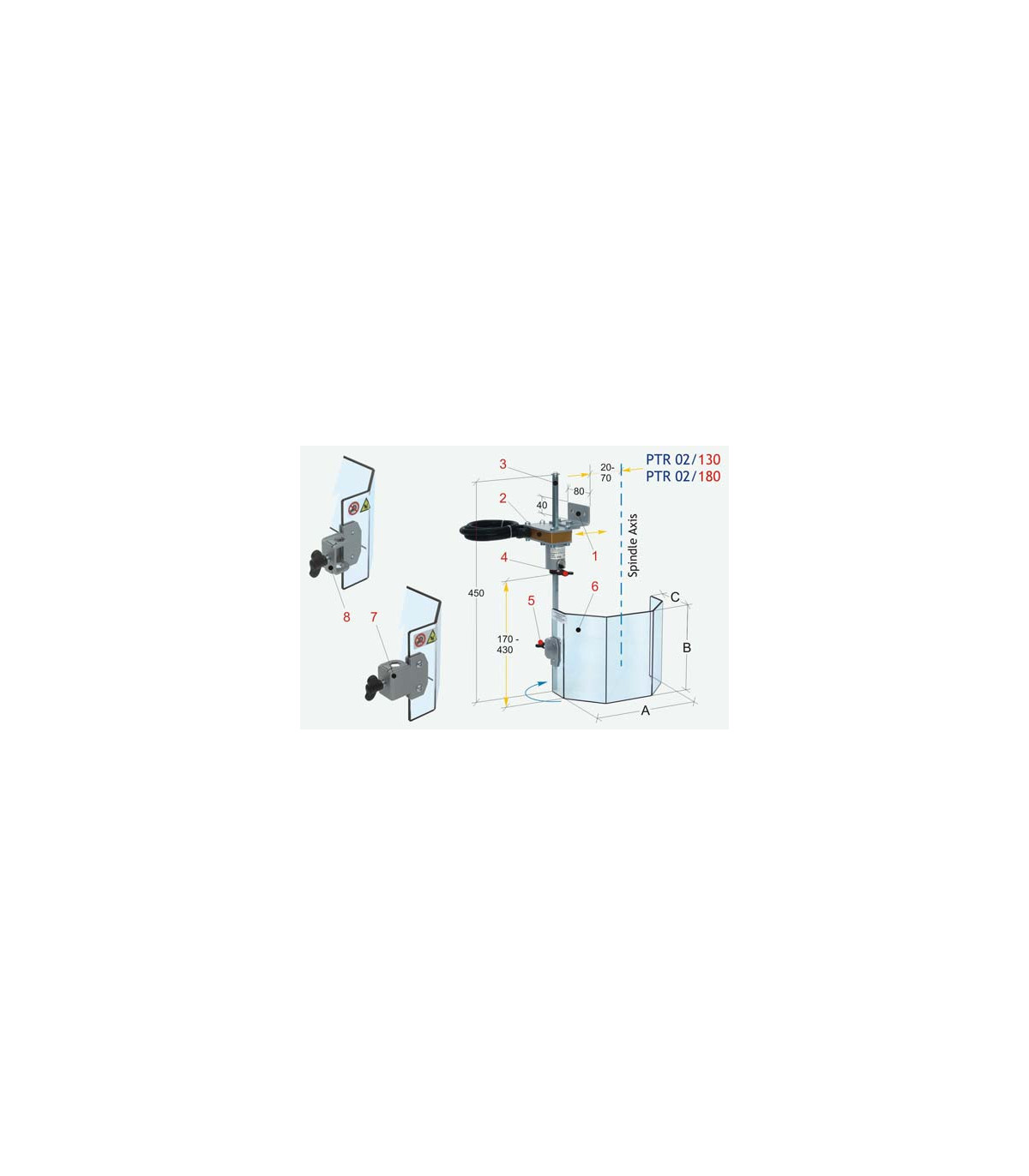

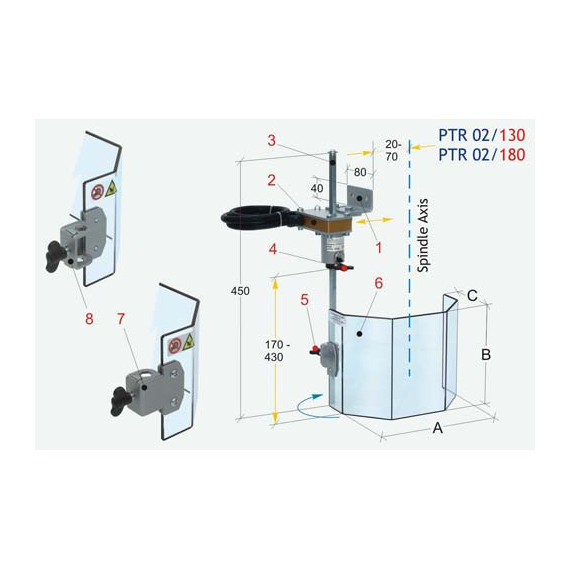

1 Pressed steel anchor bracket.
2 Main box of safety micro switch 180° rotation. No. 2 NC contacts
3 Vertical arm support screen in hexagonal steel.
4 Adjustment button for the screen arm in relation to the micro switch group.
5 Adjustment button for the screen in relation to the support arm.
6 Semi-octagonal screen in polycarbonate.
