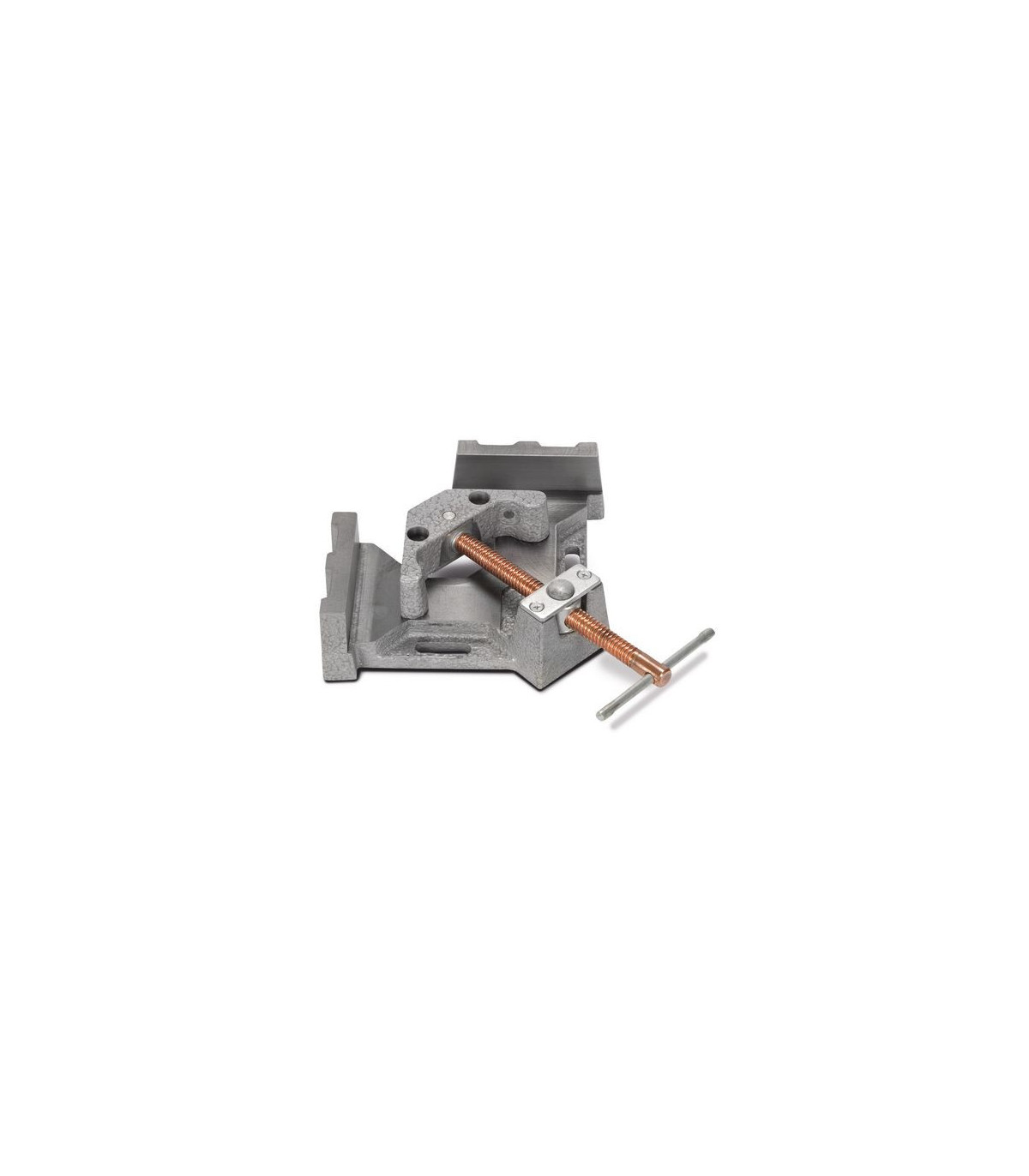

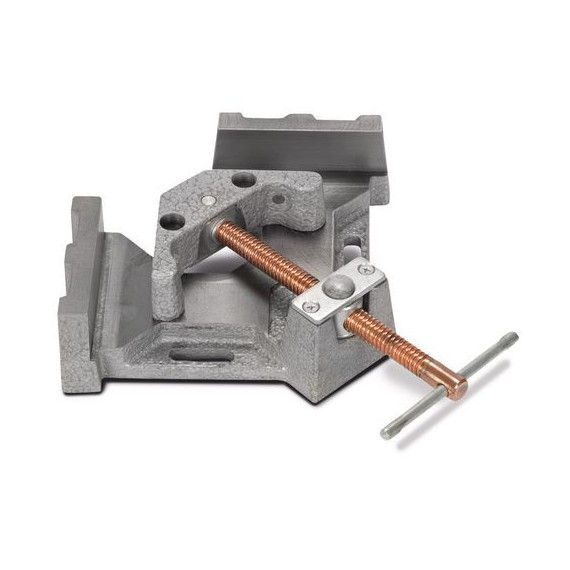

MWS-2 clamp with a 63 mm opening SCHWEISSKRAFT

MWS-2 clamp with a 63 mm opening SCHWEISSKRAFT. The MWS-2 clamp with a 63 mm opening from SCHWEISSKRAFT is an essential tool for welding and metalworking workshops. Its gray cast body and stable jaws allow for holding, aligning, and securing pieces at an exact 90° angle. Thanks to the articulated spindle nut, it automatically adapts to different thicknesses, facilitating quick clamping.

Its open design allows for securing T-joints and easy access to the piece during welding work. Additionally, the coated trapezoidal spindle prevents splashes from adhering. With milled sides for mounting angular clamps, it is ideal for various applications, including securing round material and creating prototypes.

FEATURES

• For use in steel constructions, welding workshops, and metalworking shops.
• Stable jaws and gray cast body.

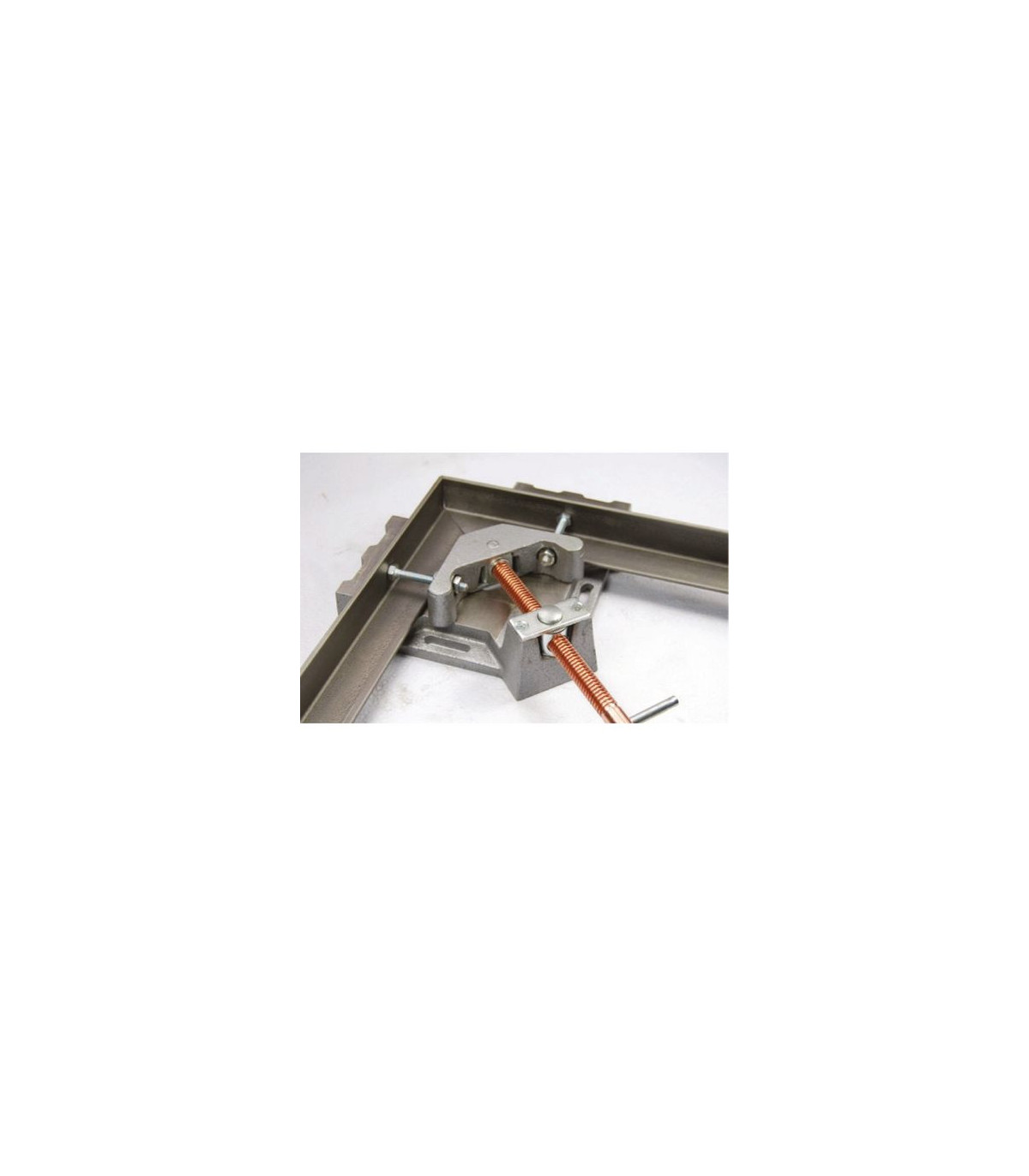

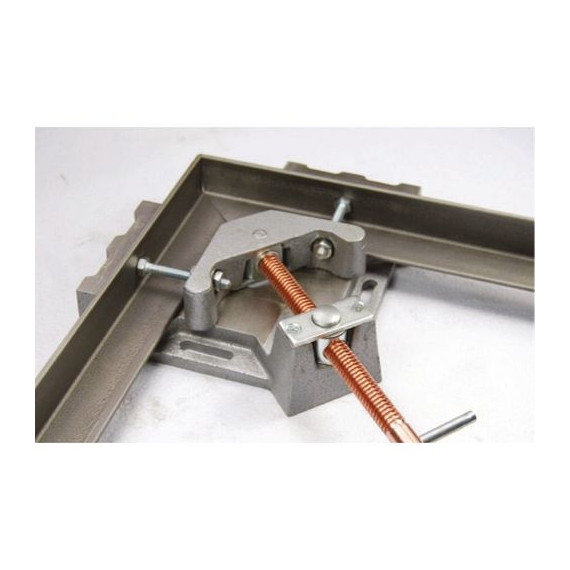

• For holding, aligning, and securing workpieces of different thicknesses at an exact 90° angle.
• Automatic adaptation of the clamping jaw to workpieces of different thicknesses thanks to the articulated spindle nut.
• With a button for quick clamping of the workpiece (except MWS-2 56).
• Welding splashes cannot adhere to the coated copper trapezoidal spindle with a T-handle.
• Easy to attach to welding or machine tables via side slots.
• For workpieces with two axes.

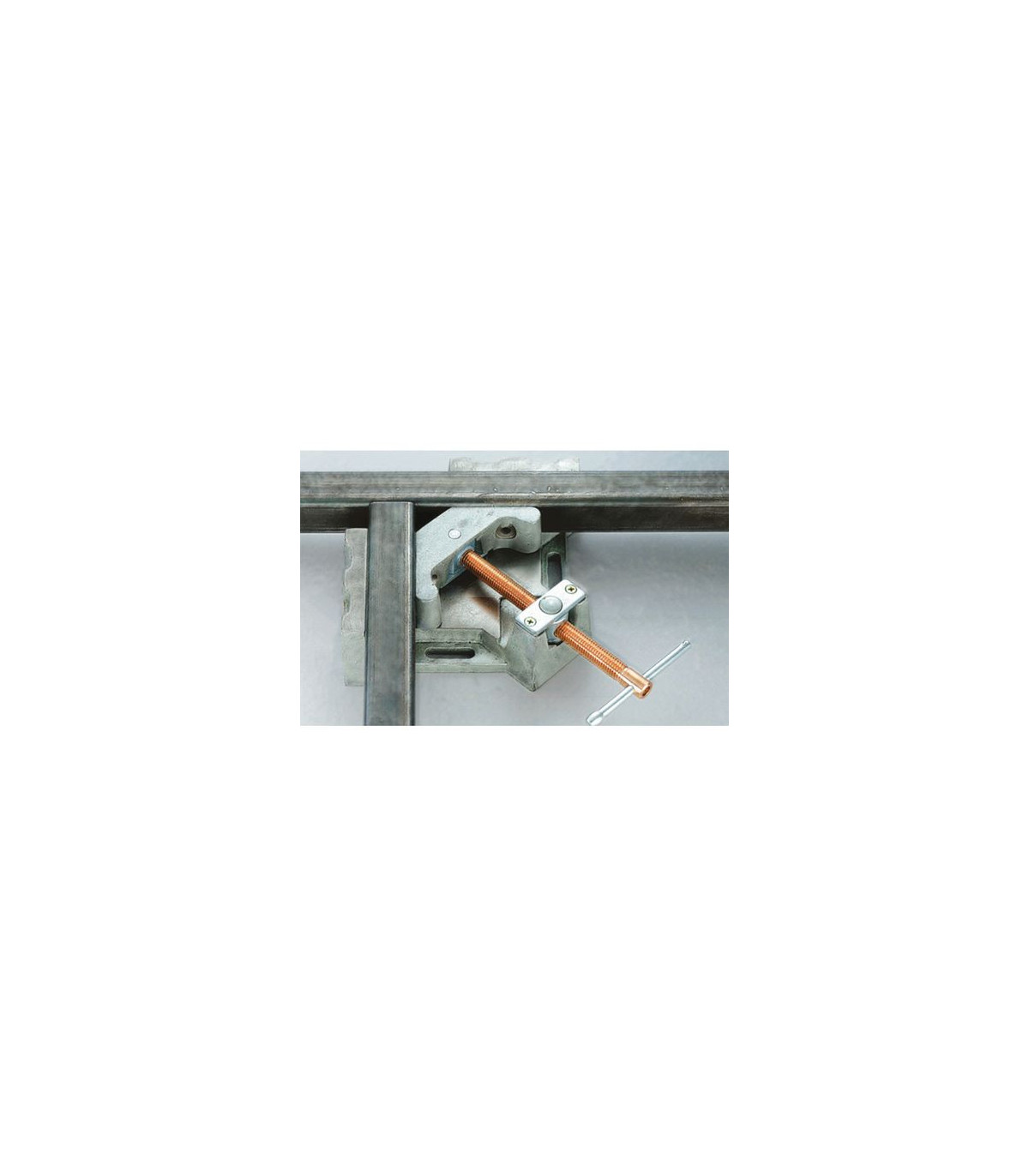

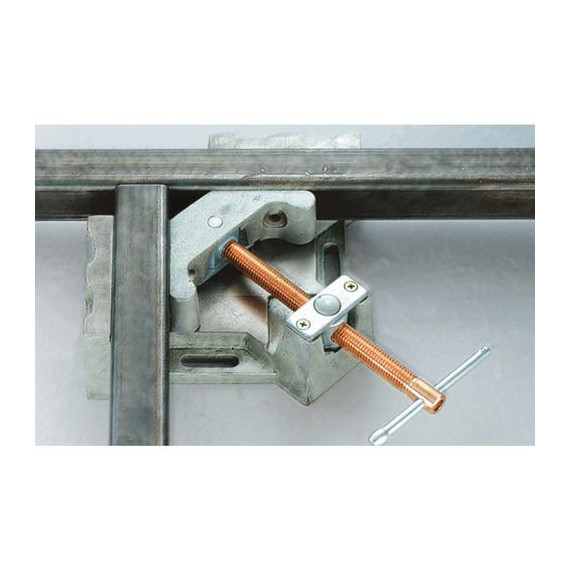

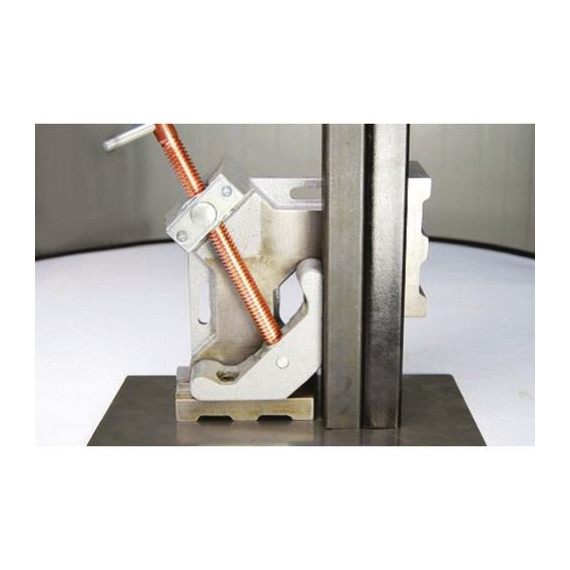

• Thanks to the open design, it is possible to secure T-joints and freely access the workpiece during welding and assembly work.
• Milled sides for mounting the metal angular clamp.
• With a device for better securing profiles.
• Possibility of securing T-connections through open construction.

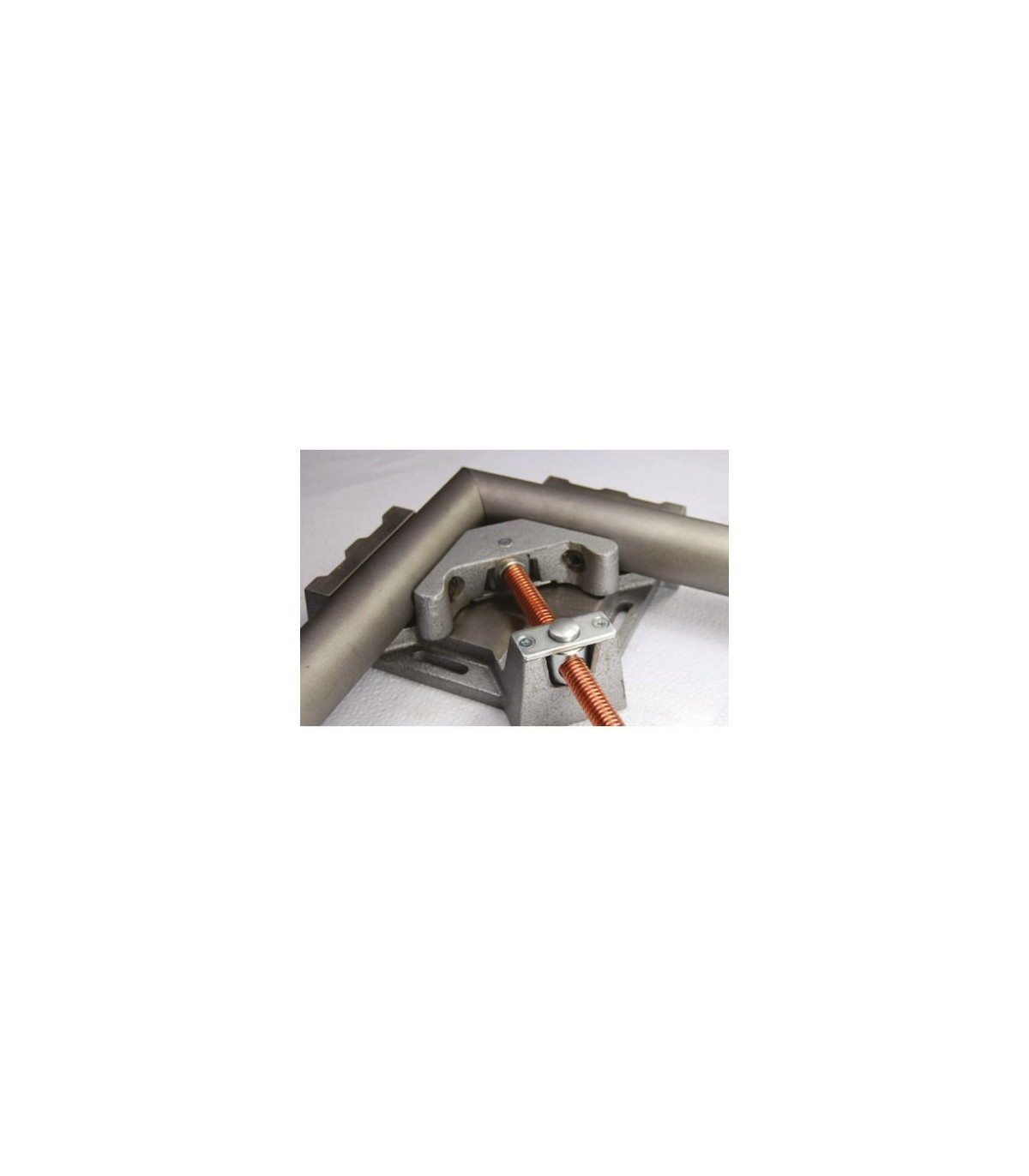

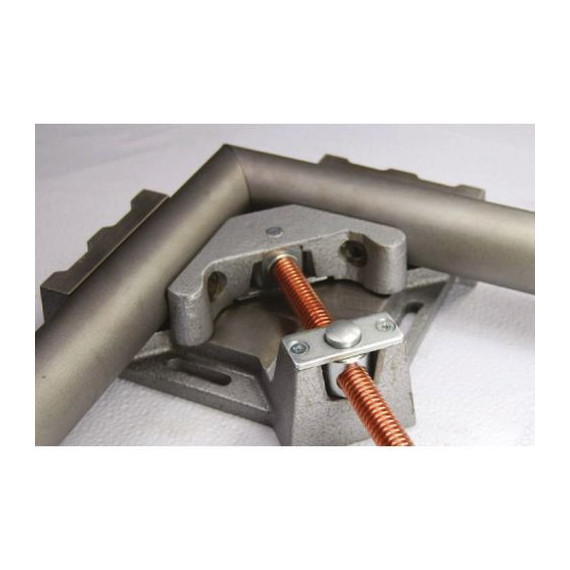

• Also suitable for securing round material.

TECHNICAL SPECIFICATIONS

Width of the jaw    63.5 millimeters

Jaw length 80 millimeters

Jaw height 33 millimeters

T clearance 47 millimeters

Mounting slot length 35.5 millimeters

Mounting slot width 11 millimeters

VPE 1

Dimensions and weights

Approximate weight. 2.75 kilograms

COMPONENTS/PACKAGING

Unit: piece(s).

Packaging unit: 1

FOR WHAT TYPE OF WORK IS IT SUITABLE

The MWS-2 clamp with a 63 mm opening SCHWEISSKRAFT is suitable for:

• Machining workshops
• Welding
• Assembly and joining
• Prototype creation
