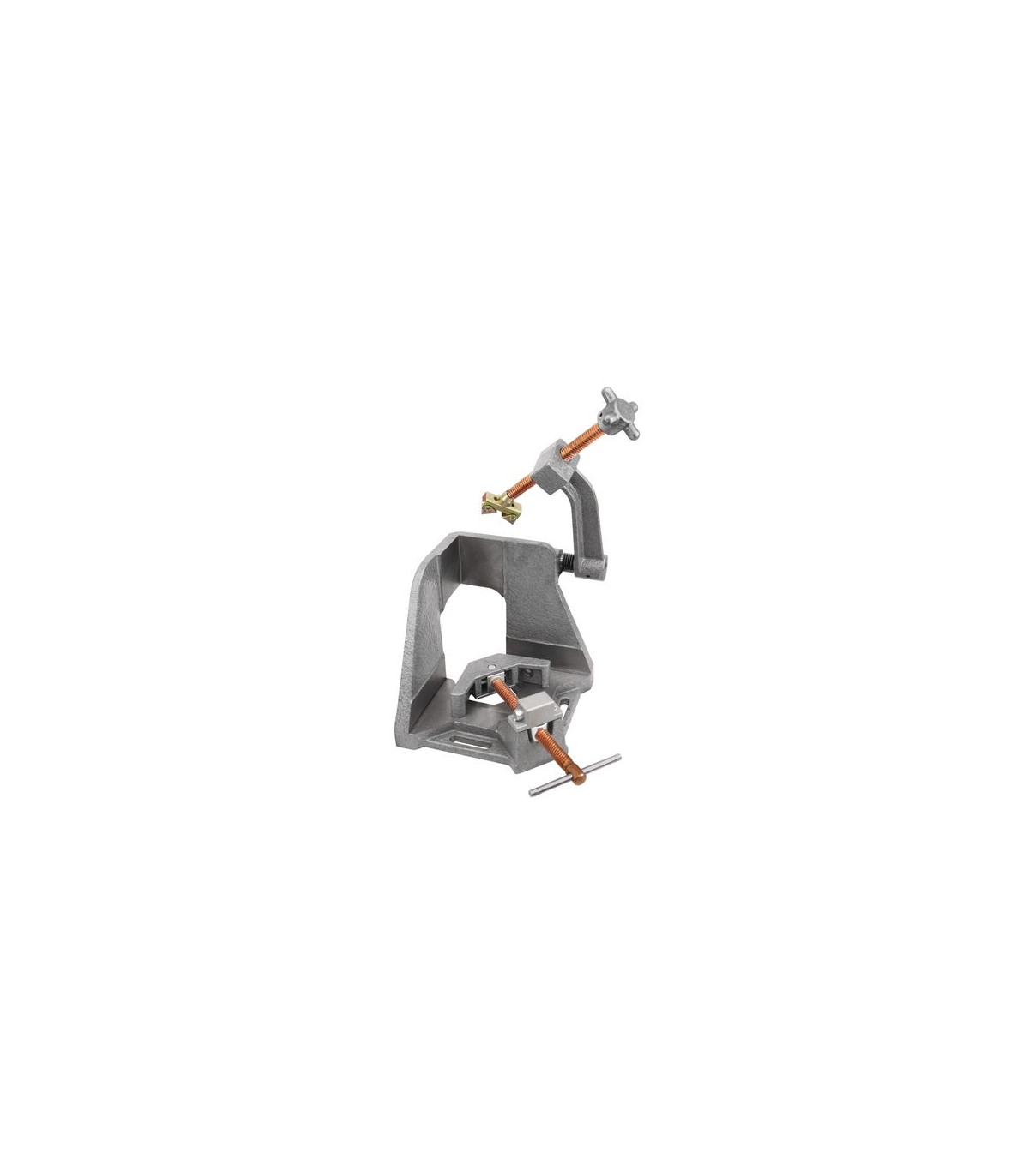

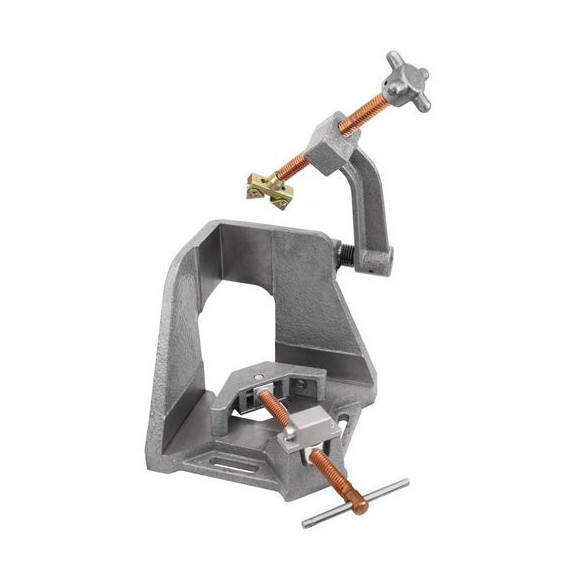

MWS-3 121 clamp with 3-axis metal angle SCHWEISSKRAFT

MWS-3 121 clamp with 3-axis metal angle SCHWEISSKRAFT. The MWS-3 121 clamp with 3-axis metal angle from SCHWEISSKRAFT is perfect for welding and metalworking workshops. Its stable jaws and gray cast body allow for holding and aligning pieces of different thicknesses at an exact 90° angle.

With automatic adaptation thanks to its articulated nut, it includes a button for quick clamping and a coated trapezoidal screw that prevents splash adherence. Easy to attach to tables, it allows for quick removal by turning the third clamping arm, facilitating work on machining, assembly, and prototyping projects.

FEATURES

• For use in steel constructions, welding workshops, and metalworking shops.
• Stable jaws and gray cast body.
• For holding, aligning, and fixing workpieces of different thicknesses at an exact 90° angle.
• Automatic adaptation of the clamping jaw to workpieces of different thicknesses thanks to the articulated screw nut.
• With a button for quick clamping of the workpiece.
• Welding splashes cannot adhere to the coated copper trapezoidal screw with T-handle.
• Easy to attach to welding or machine tables via side slots.
• For workpieces with three axes.
• Quick removal of the workpiece simply by turning the third clamping arm.
• With quick release for fast and convenient installation.
• The third clamping arm can be easily rotated.

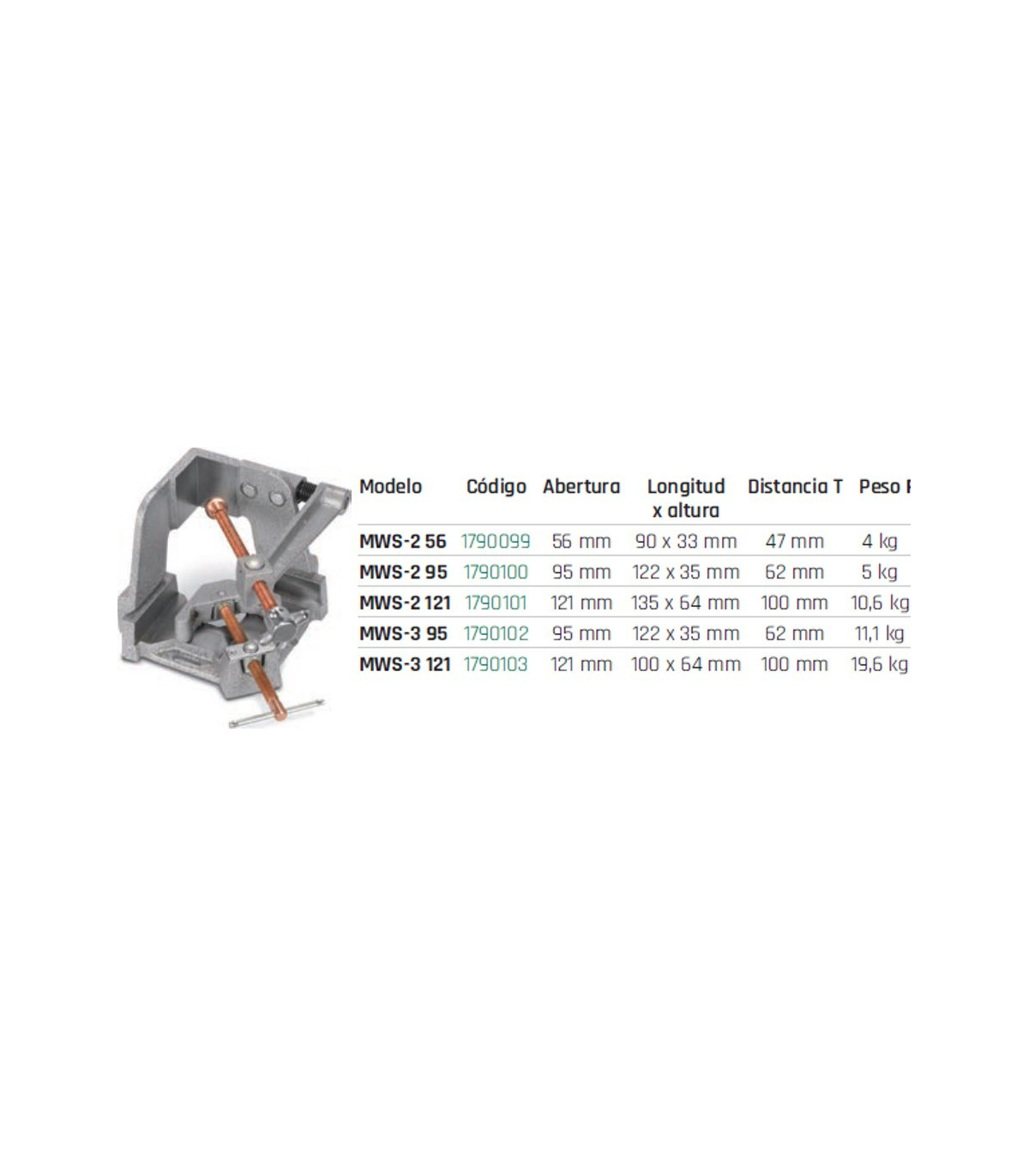

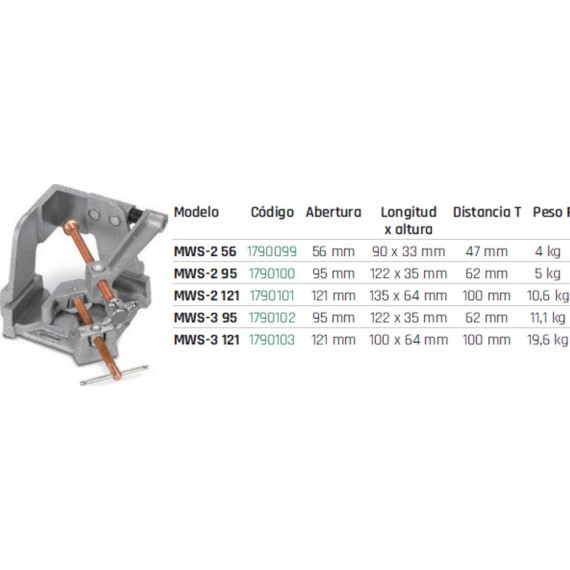

TECHNICAL SPECIFICATIONS

Width of the section 121 millimeters

Jaw length 100 millimeters

Jaw height 64 millimeters

Clearance T 100 millimeters

VPE 1

Dimensions and weights

Approximate weight. 19.6 kilograms

COMPONENTS/PACKAGING

Unit: piece(s).

Packaging unit: 1

WHAT TYPE OF WORK IS IT SUITABLE FOR

The MWS-3 121 clamp with 3-axis metal angle SCHWEISSKRAFT is suitable for:

• Machining workshops
• Welding
• Assembly and fitting
• Prototyping
