Drilling milling machine for complex jobs MF 2-B OPTIMUM

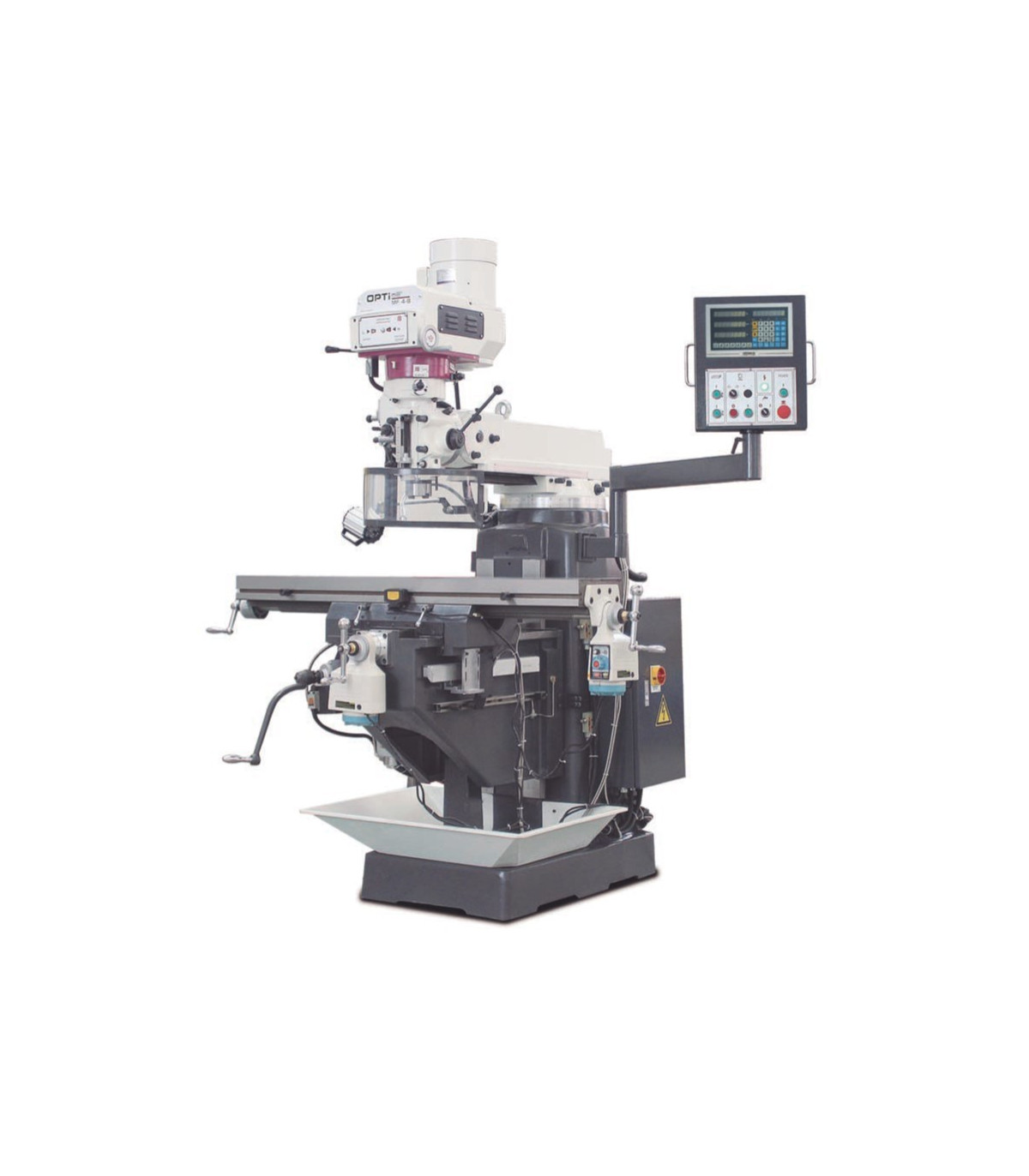

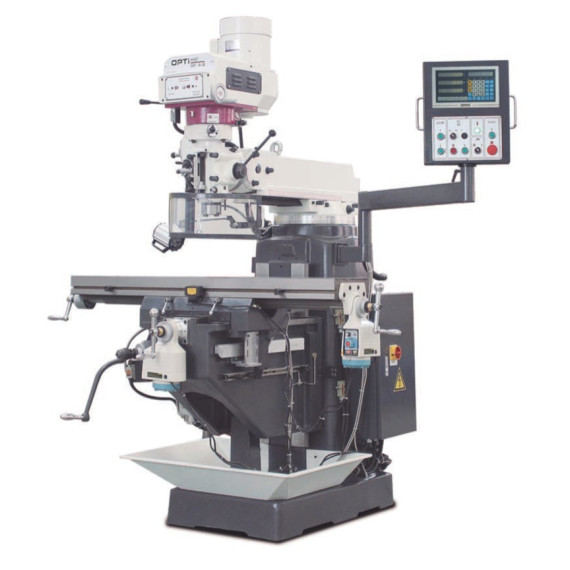

Drilling milling machine for complex jobs MF 2-B OPTIMUM. The MF 2-B OPTIMUM drilling milling machine, made of Meehanite cast iron, offers high concentricity and adjustable guides. With a tiltable head at ± 45°, automatic feed, and variable speed control, it is ideal for complex tasks.

FEATURES

• Solid design made of high-quality Meehanite cast iron.
• High concentricity thanks to the tapered roller bearing, ≤ 0.01 mm measured at the sleeve
• X and Z axes with adjustable dovetail guide of 55°
• Y axis with adjustable flat guide
• Cooling device
• Solid cross table with generous dimensions, precise surface finish, and adjustable end stops
• The drilling/milling head can be tilted ± 45
• Automatic quill feed, 3 stages 0.04 - 0.15 mm/rev
• Precision micro feed
• Adjustable drilling depth stop with millimeter scale, readable from the front
• Right/left rotation
• Infinitely variable speed control
• Milling spindle with precision bearing
• Mechanical spindle brake
• Height-adjustable protective screen with micro switch, against chip and part projection, for maximum user protection.

TECHNICAL SPECIFICATIONS

Cooling lubricant system

• Power of the coolant pump(s) 90 watts

Dimensions and weights

• Approximate length 2000 millimeters
• Approximate width/depth 1600 millimeters
• Approximate height 2010 millimeters
• Approximate weight. 1000 kilograms

Drilling/milling head

• Tilting range of the vertical drilling-milling head ± 45°
• Turning range of the horizontal milling head ± 90°

Drilling/milling output

• Maximum milling head size 76 millimeters
• Maximum size of spindle cutter 25 millimeters
• High-performance steel for drilling (S235JR) 24 millimeters
• High-performance steel for continuous drilling (S235JR) 20 millimeters

Electrical data

• Total nominal value 3 kW
• Supply voltage 400 volts
• Network frequency 50 Hz

Horizontal milling table

• Table length 230 millimeters
• Table width 1246 millimeters
• Maximum clearance between the vertical spindle and the milling table 405 millimeters
• T-slot size 16 millimeters
• Number of T-slots 3
• T-slot spacing 63 millimeters
• Maximum load capacity 200 kilograms

Standards and certifications

• Standard DIN EN 55011

Axes

• Manual X axis 690 millimeters
• Manual Y axis 310 millimeters
• Manual Z axis 390 millimeters
• Automatic X axis 610 millimeters
• Automatic Y axis 230 millimeters
• Automatic Z axis 310 millimeters

Vertical spindle

• Reach from up to 15 – 415 millimeters
• Spindle chuck ISO 40 DIN 2080
• Speed range 60 – 4200 min¯¹
• Number of gears 2
• Speed control mechanically continuous
• Normal operation of the vertical spindle 2.2 kW
• Quill diameter 86 millimeters
• Quill stroke 127 millimeters
• Spindle quill feed 0.04 / 0.08 / 0.15 mm/rev
• Milling head travel on the Y axis 312 millimeters
• VPE 1

COMPONENTS/PACKAGING

Unit: pcs.

Packaging unit: 1

• Operating tool

EQUIPMENT

Digital position indicator DPA 31 Plus

FOR WHAT TYPE OF WORK IS IT SUITABLE

The MF 2-B OPTIMUM drilling milling machine is suitable for:

• Metal machining industry
• Precision parts manufacturing
• Prototype workshops
• Production of industrial components
• Manufacturing of custom parts
• Machining of steel and other materials
• Projects requiring high concentricity and precision

CERTIFICATION

The standard ISO 40 and DIN 2080 refers to a measurement system for clamping cones, specifically the ISO 40 cone, which is commonly used in machine tools for tool fastening.

The ISO 40 cone is part of a series of tapered cones used to secure tools in the machine spindle. This standard establishes the dimensions and tolerances to ensure interchangeability and precision in tool clamping.
