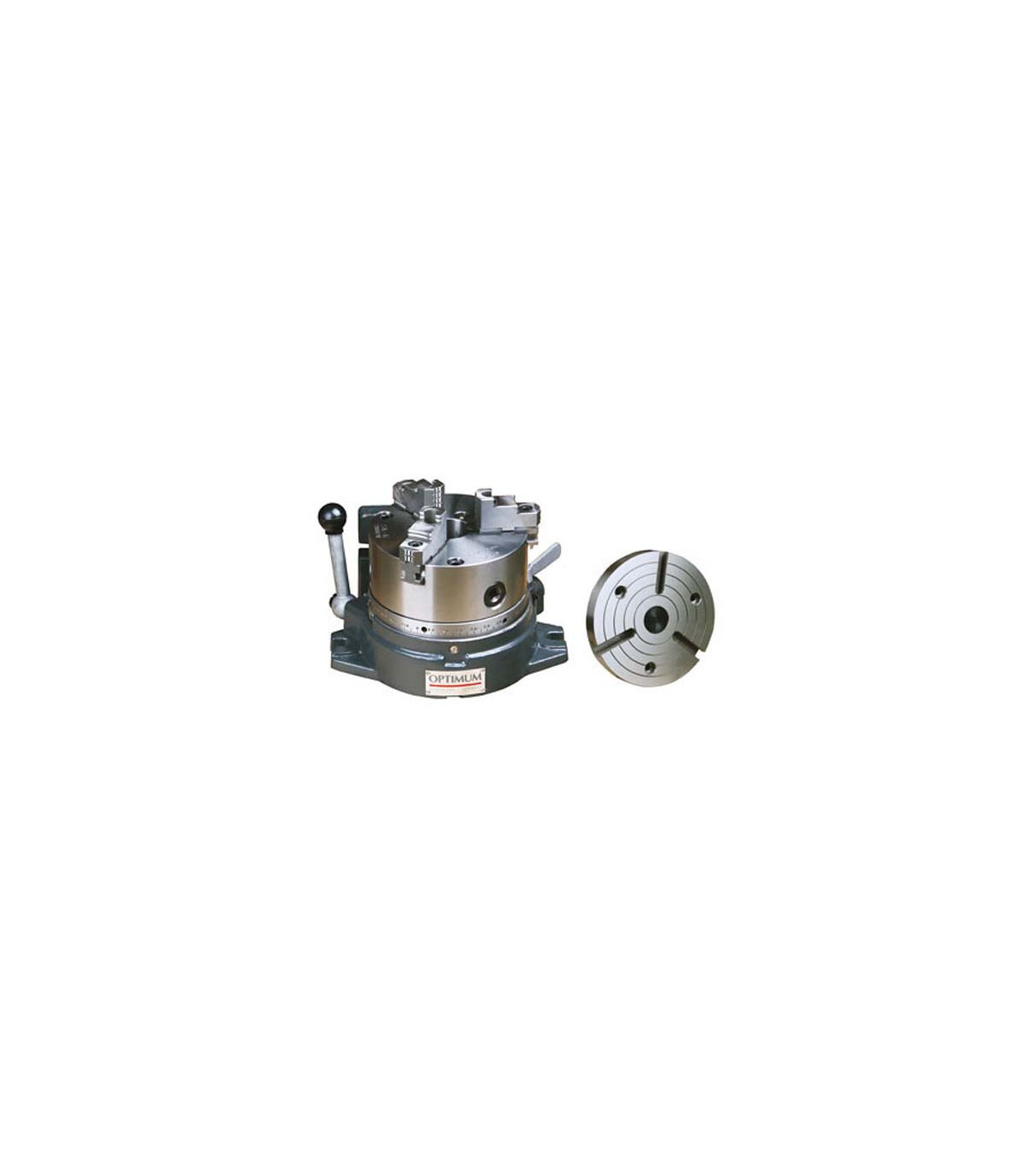

Dividing plate with 3 claws RTE 165 OPTIMUM

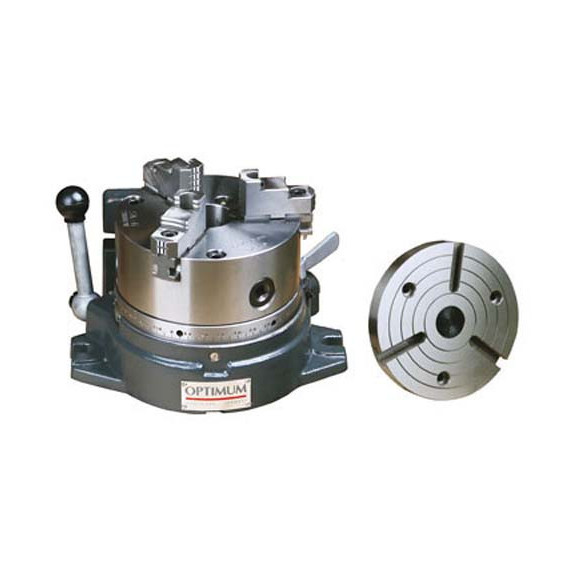

Dividing plate with 3 jaws RTE 165 OPTIMUM. The dividing plate with 3 jaws RTE 165 OPTIMUM offers stability under stress and 24 tilt positions. With a diameter of 165 mm, it allows for holding long workpieces and is ideal for machining, precision manufacturing, automotive, aerospace, and engineering. It includes indexing discs and an efficient design to increase production speed.

FEATURES

Precision tapered roller bearings

Stability even under high stress

24 positions (15° tilt)

Large spindle hole for holding longer workpieces

Three-jaw coating

Direct parts through boards for greater mass production speed

Includes a clamping disc with 3 slots.

Route 165

24 divisions with direct piece disc and angular degree pieces with a 360-degree angle scale - no slot, three-jaw coating mounted, no indirect partial disc

7-click discs for releases of 2/3/4/6/8/12/24

Grade parts above the 360° scale

TECHNICAL SPECIFICATIONS

Clamping surface diameter 165 millimeters

Closed height 200 millimeters

Maximum height 130 millimeters

Passage 36 millimeters

Direct indexing disc division 24

Indirect indexing disc division 2, 3, 4, 6, 8, 12

Direct indexer indexing accuracy 45 "

Clamping options Horizontal and vertical

VPE 1

Dimensions and weights

Approximate length 218 millimeters

Approximate width/depth 260 millimeters

Approximate weight. 32.5 kilograms

COMPONENTS/PACKAGING

Unit: pcs.

Packaging unit: 1

• 3-jaw chuck (mounted)
• 203 mm clamping disc with three slots
• Main indexing disc (24x division, mounted)
• 6 indexing discs

FOR WHAT TYPE OF WORK IS IT SUITABLE

The dividing plate with 3 jaws RTE 165 OPTIMUM is suitable for:

• Machining
• Precision manufacturing
• Automotive
• Aerospace
• Engineering
