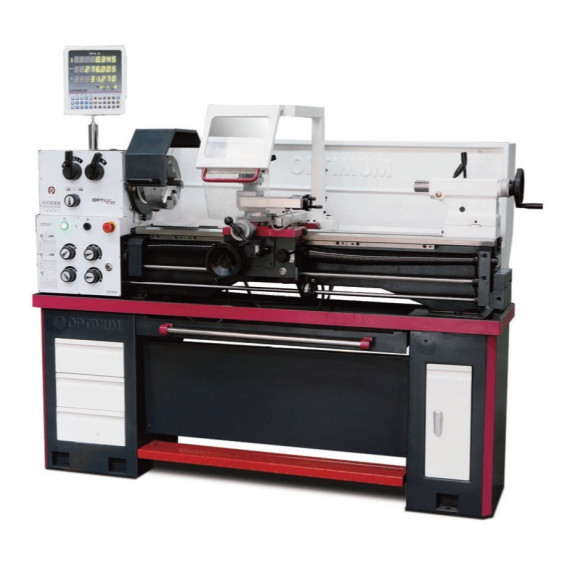

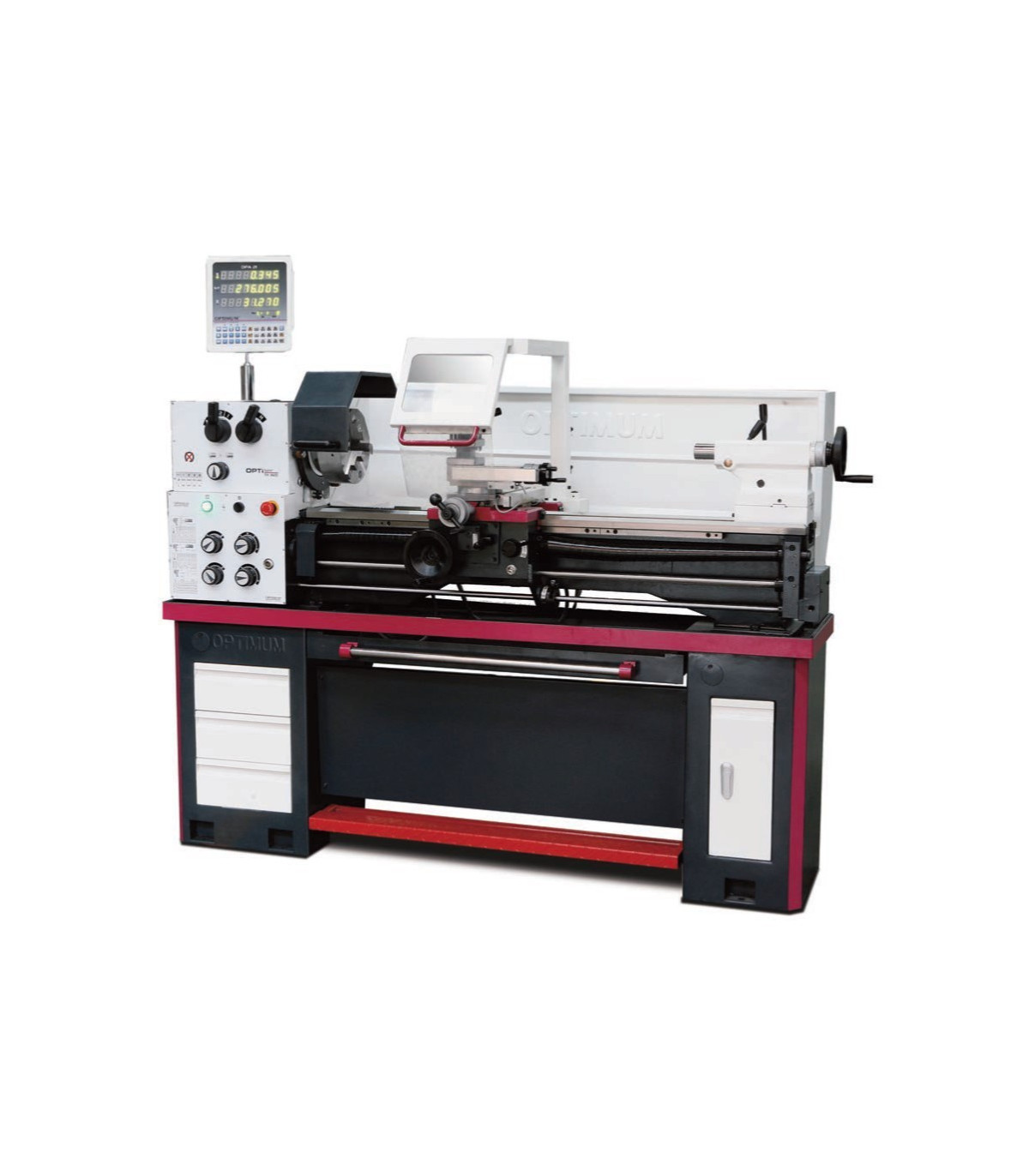

Precision lathe for conical turning TH 3610 OPTIMUM

Precision lathe for conical turning TH 3610 OPTIMUM. The TH 3610 OPTIMUM precision lathe offers outstanding features such as tempered Z-axis guide, spindle tip concentricity better than 0.015 mm, and decoupled handwheels. Its design includes dual-channel safety electronics and a switch tested according to EN ISO 13849. With a heavily grooved prism bed and a spindle operating in an oil bath, this lathe ensures quick and easy adjustments. Its dimensions are 1930x725x1350 mm and it weighs approximately 570 kg, with a 1.5 kW motor at 400 V.

FEATURES

• Tempered and ground Z-axis guide
• Precision machined slide
• Guaranteed spindle tip concentricity better than 0.015 mm
• Camlock spindle holder DIN ISO 702-2 No. 5
• Decoupled handwheels tested according to EN 23125
• Lead screw cover
• All guides can be adjusted using gibs.
• Switchable right/left rotation on the bed slide
• Dual-channel safety electronics
• Switch with lifecycle calculation, tested according to EN ISO 13849
• Soft-running gears, tempered and ground
• The main spindle operates in an oil bath.
• Quick, easy, and tool-free adjustment using a clamping lever
• Handwheels with adjustable fine scale 0.04 / 0.02 mm
• Decoupled handwheels tested according to EN 23125
• Safety handwheels with decoupling function on the X and Z axes
• Heavily grooved prism bed, induction tempered and precisely ground
• Machine base with tool compartments on both sides
• Motor protection switch, lockable main switch
• Quadruple steel support
• Emergency stop device with foot control
• Integrated LED machine light in the chip guard

TECHNICAL SPECIFICATIONS

Dimensions and weights

Approximate length: 1930 millimeters

Approximate width/depth: 725 millimeters

Approximate height: 1350 millimeters

Approximate weight: 570 kilograms

Electrical data

Drive motor output: 1.5 kW

Power supply voltage: 400 volts

Network frequency: 50 Hz

Feed

Longitudinal feed range: 0.052 – 1.392 mm/rev

Number of longitudinal feeds: 32

Flat feed range: 0.014 – 0.38 mm/rev

Number of flat feeds: 32

Threads

Metric pitch: 0.4 – 7 mm/rev

Number of metric threads: 26

Imperial pitch: 56 – 4 Gg/1"

Number of imperial threads: 34

Speed range

Number of speeds: 8

Speed range: 70 – 2000 min¯¹

Spindle

Spindle chuck: Camlock DIN ISO 702-2 No. 5

Spindle hole diameter/rod passage diameter: 52 millimeters

Maximum tool holder height: 16 millimeters

Spindle taper: MT 6

Tailstock

Throw: MK 3

Quill stroke: 120 millimeters

Quill diameter: 42 millimeters

Axis

Upper slide travel: 100 millimeters

Cross slide travel: 170 millimeters

Carriage travel: 840 millimeters

Working areas

Maximum height: 180 millimeters

Maximum width: 980 millimeters

Turning diameter over the bed: 356 millimeters

Swing diameter over the cross slide: 225 millimeters

Bed width: 187 millimeters

VPE: 1

COMPONENTS/PACKAGING

Unit: pcs.

Packaging unit: 1

• Fixed bevel pass Ø max. 100 mm
• Movable bevel pass Ø max. 95 mm
• LED light for machine
• Reducer sleeve MK 6 / MK 3
• Two fixed centering points MK 3
• Quadruple tool holder
• Gear change set
• Initial machine filling with quality oil
• Operational tool

WHAT TYPE OF WORK IS IT SUITABLE FOR

The precision lathe for conical turning TH 3610 OPTIMUM is suitable for:

• Machining parts
• Prototyping
• DIY
• Education
• Craft industry

CERTIFICATION

- EN ISO 13849: The EN ISO 13849 standard focuses on the safety of control systems related to machinery, establishing requirements for the design and evaluation of these systems to ensure safe operation and minimize risks of failures that could cause injury or damage. It defines performance levels (PL) that must be achieved based on risk, considering the probability and consequences of failures, and covers aspects such as redundancy and system diagnostics to ensure reliability in the workplace.

- DIN ISO 702-2 No. 5: The DIN ISO 702-2 No. 5 standard deals with the classification and labeling of chemical products, ensuring that information about hazards and safety measures is clear and understandable for users.

- EN 23125: The EN 23125 standard addresses safety in the handling of bulk materials, establishing requirements for the design and use of equipment, ensuring the safety of operators and minimizing risks.
