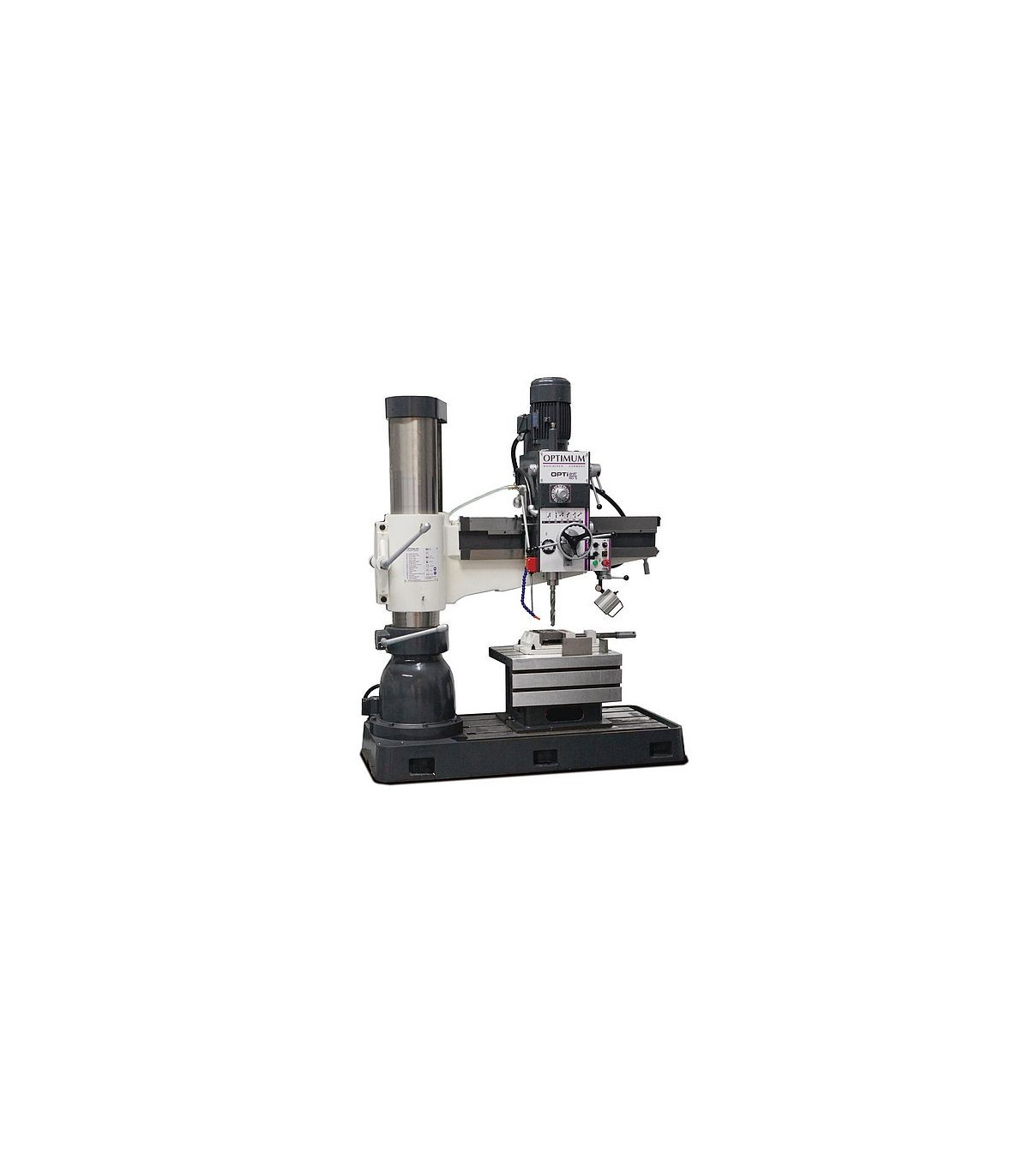

Precision radial drill for industrial use RD6 OPTIMUM

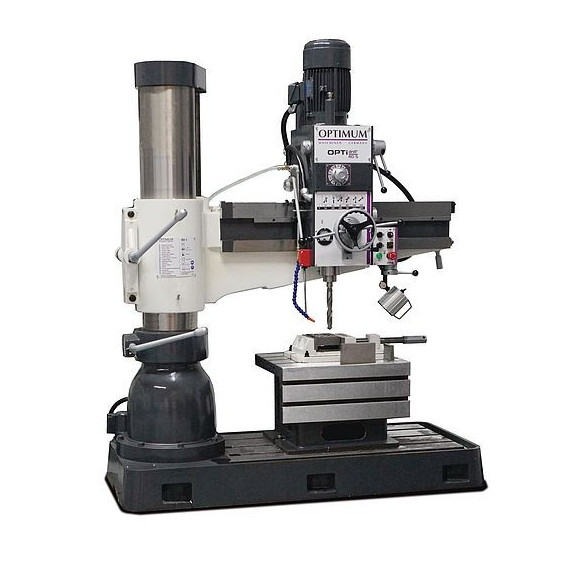

Precision radial drill for industrial use RD6 OPTIMUM. The RD6 OPTIMUM radial drill is ideal for drilling, reaming, and tapping. With an electric brake motor and a 24 V DC system, its robust construction and cast iron column provide great stability. It features an adjustable head, an organized control panel, and a precise work table. Additionally, it includes overload protection, an LED light, and an efficient cooling system.

FEATURES

• Versatile range of applications, such as drilling, reaming, and thread cutting.
• Motor with electric brake

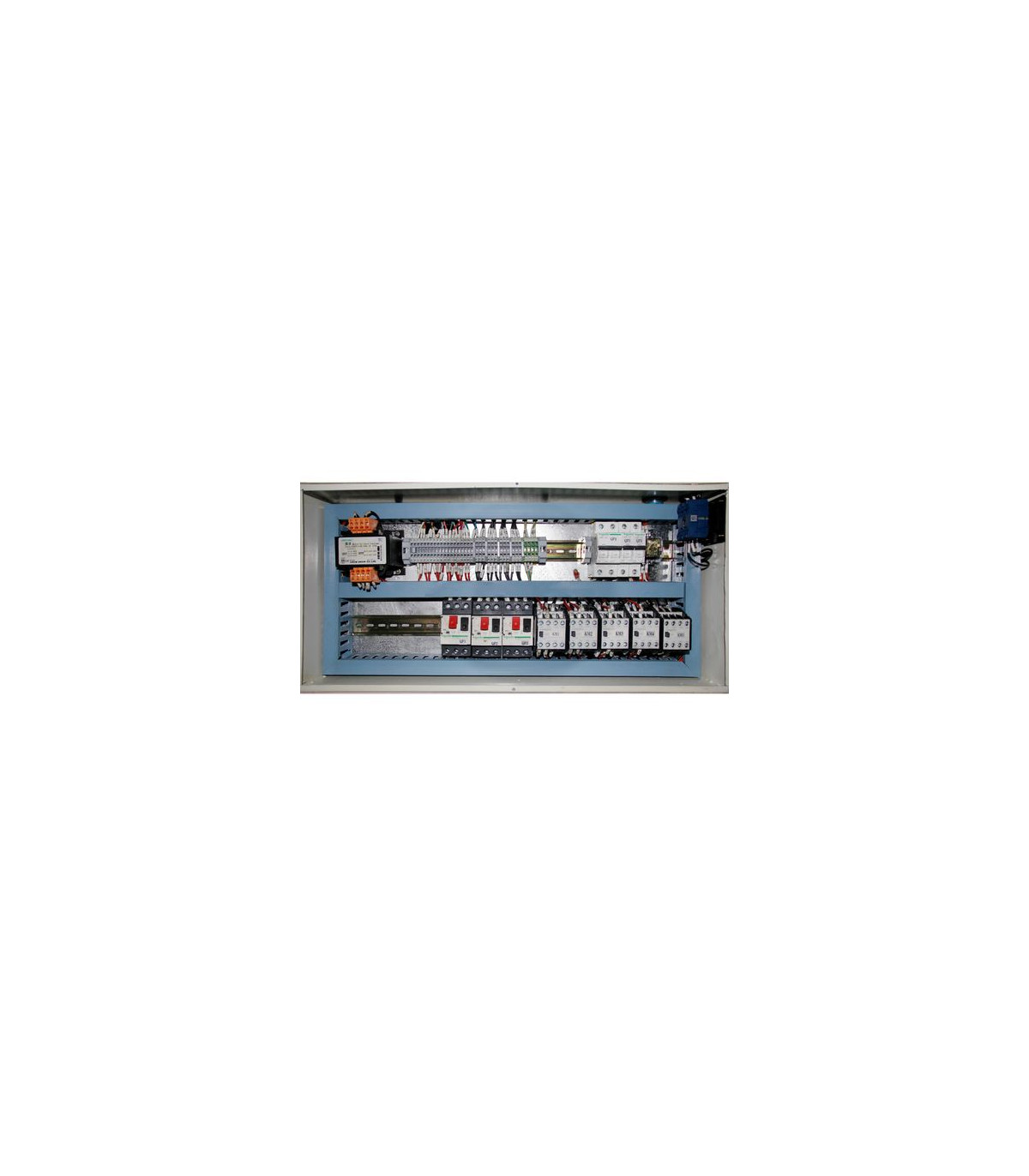

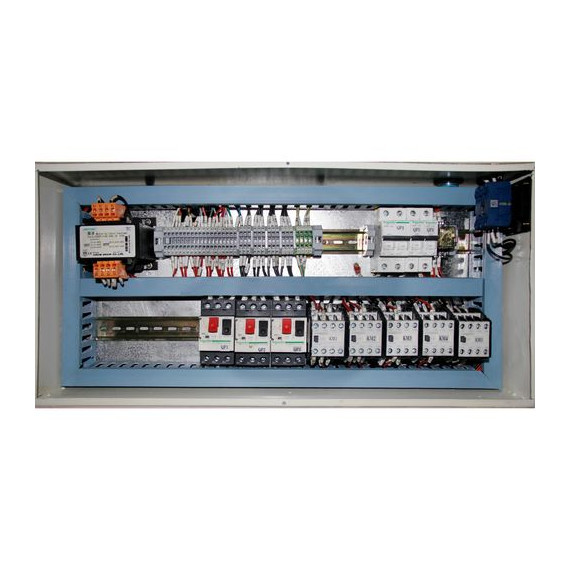

• 24 V DC electrical system and 2-channel safety chain according to DIN EN 12717
• Heavy, solid, and high-quality casting.

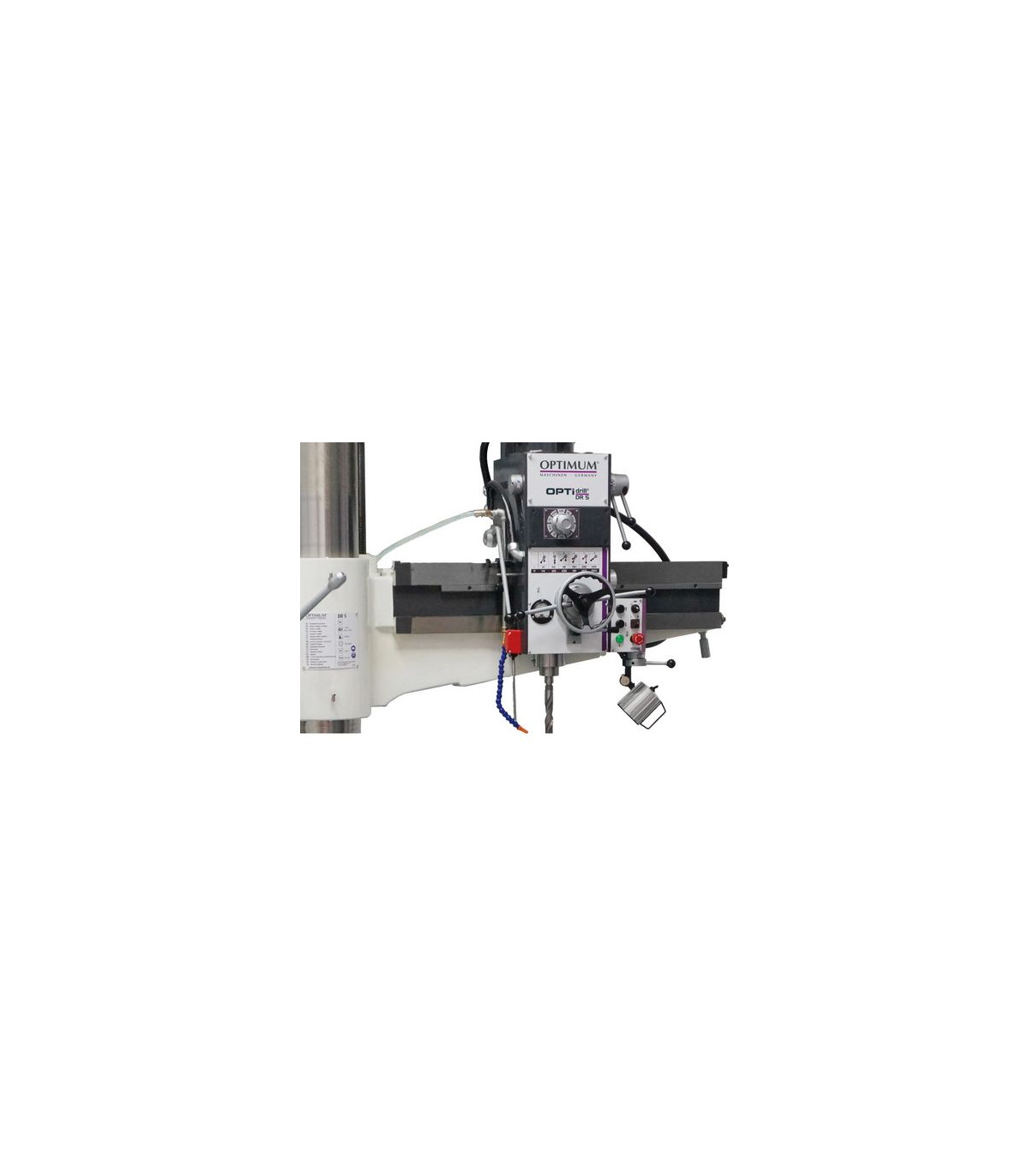

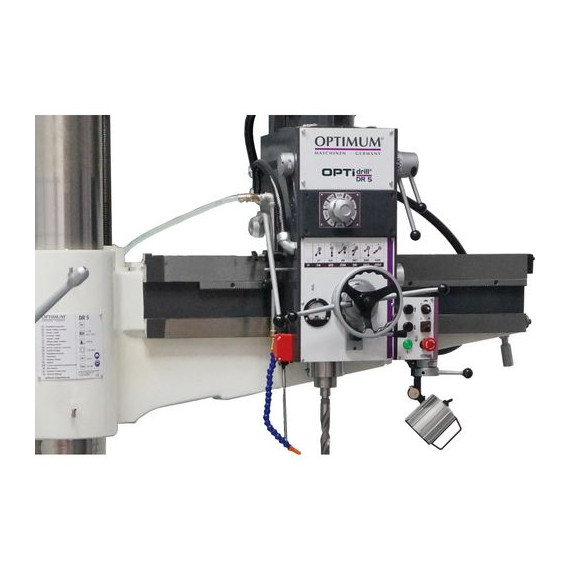

• Wide reach thanks to the horizontally adjustable machine head

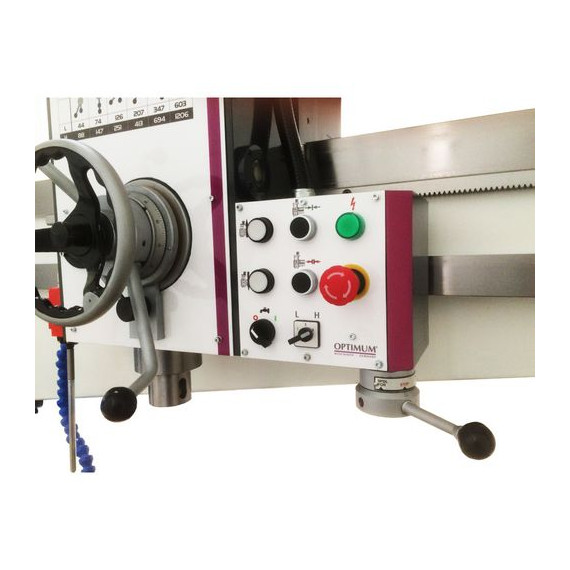

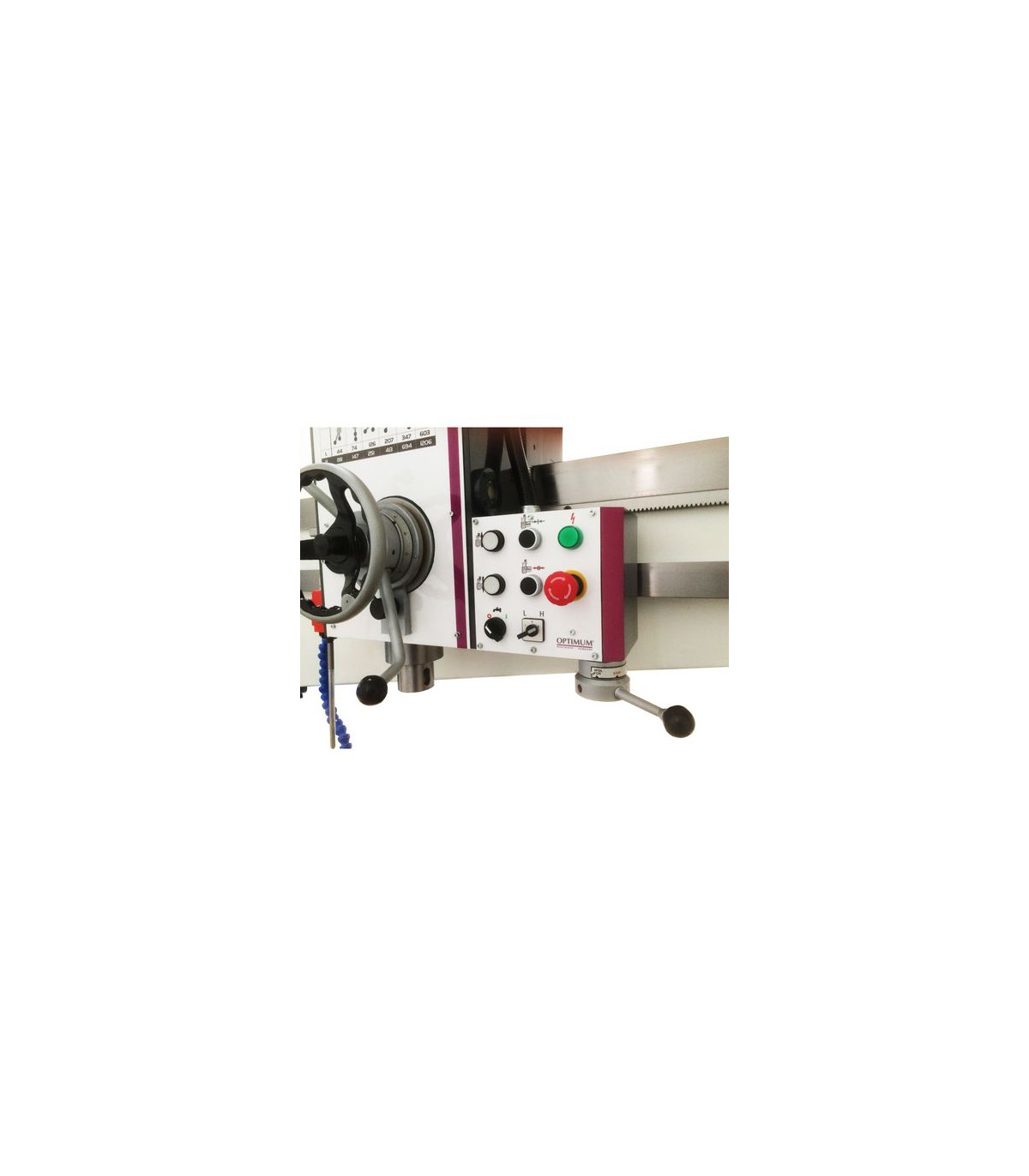

• Clearly organized control panel
• Smooth operating rotating and transverse axes
• Elaborately designed rotating column with optimized clamping for maximum stability with minimal clamping displacement
• Robust and torsion-resistant construction of the arm.
• Height adjustment of the arm via a powerful motorized drive and a lifting spindle
• The drilling head gearbox operates in an oil bath.
• Tempered and precisely ground arm guides
• Chrome-nickel steel toothed wheels, tempered and precisely ground for smooth and quiet operation.
• The drilling head and column can be clamped or released together or separately
• Right to left rotation
• Solid and precise drilling table, large dimensions.
• Tempered and ground clamping table with parallel T-slots
• Machine light
• Overload protection
• The thick-walled cast iron column ensures smooth operation and stability.
• LED lamp

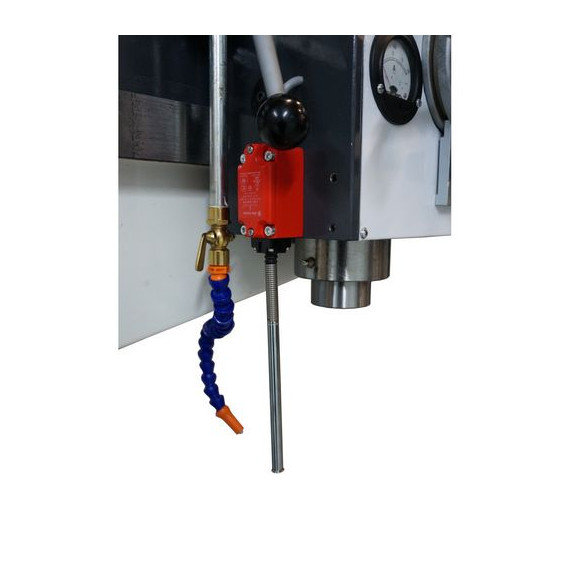

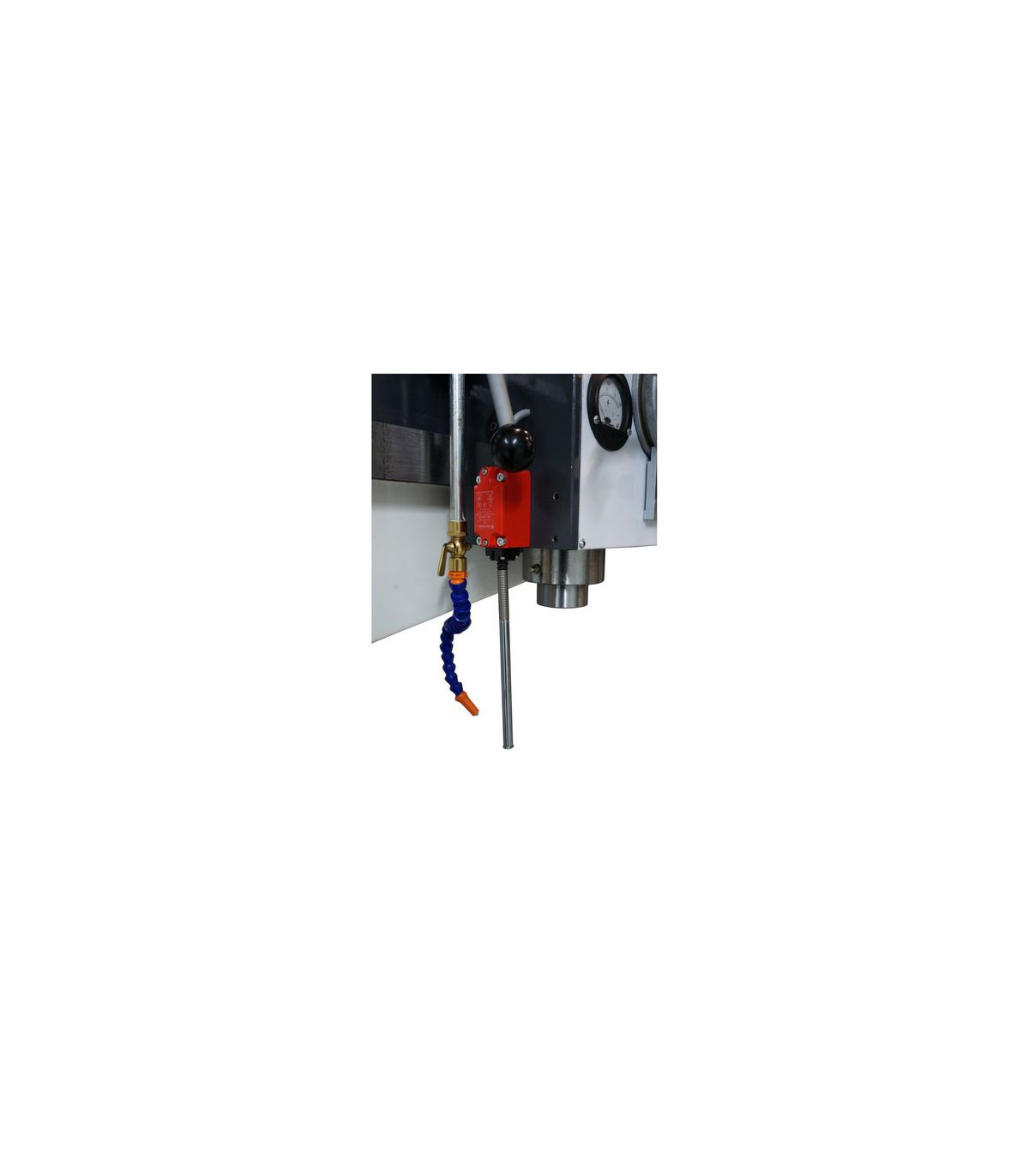

• Cooling system with coolant tank at the base of the machine

RD 6 / RD 7

• The column is hydraulically clamped

TECHNICAL SPECIFICATIONS

Stroke

• Rotation angle 180°

Dimensions and weights

• Column diameter 320 millimeters
• Approximate length 2670 millimeters
• Approximate width/depth 1120 millimeters
• Approximate height 2760 millimeters
• Approximate weight 3200 kilograms

Drilling performance

• High-performance steel for drilling (S235JR) 50 millimeters
• High-performance steel for continuous drilling (S235JR) 45 millimeters

Drilling table

• T-slot size 14 millimeters
• Number of T-slots 4
• T-slot spacing 180 millimeters
• Maximum distance between the spindle and the drilling table 1420 millimeters
• Length of the clamping table 630 millimeters
• Width of the clamping table 500 millimeters
• Height of the clamping table 500 millimeters
• T-slot size of the cubic table 22 millimeters
• Number of T-slots of the cubic table 3
• T-slot spacing of the cubic table 150 millimeters
• Minimum distance from the spindle to the clamping table 0 millimeters
• Maximum distance from the spindle to the clamping table 910 millimeters
• Minimum distance between the spindle and the drilling table 465 millimeters

Electrical data

• Total nominal value 6.5 kW
• Supply voltage 400 volts
• Network frequency 50 Hz

Machine base

• Length of the working area 2550 millimeters
• Width of the working area 970 millimeters

Motor(s)

• Spindle motor drive output 4 kW
• Arm lifting motor drive output 1.5 kW
• Coolant pump drive motor output 90 watts
• Hydraulic clamping drive 0.75 kW

Speed range

• Speed range 44 – 1023 min¯¹
• Number of gears 12

Spindle

• Arm stroke 270 millimeters
• Spindle chuck MT5
• Arm feed speed 0.06 – 0.2 mm/rev
• Arm feed gears 3

Travel

• Drilling head travel (horizontal) 1250 millimeters
• Arm lifting stroke (vertical) 680 millimeters
• Maximum spindle-column distance 1600 millimeters
• Minimum spindle-column distance 350 millimeters
• VPE 1

COMPONENTS/PACKAGING

Unit: pcs.

Packaging unit: 1

Work table

FOR WHAT TYPE OF WORK IT IS SUITABLE

The precision radial drill for industrial use RD6 OPTIMUM is suitable for:

• Manufacturing metal parts
• Maintenance of machinery
• Machining workshops
• Drilling operations
• Milling
• Tapping
• Series work
• Prototypes
• Automotive industry
• Aerospace industry
• Metallurgical industry

CERTIFICATION

- DIN EN 12717: refers to the safety and functionality requirements for column drills. It establishes criteria for the design, construction, and testing of this equipment, ensuring compliance with safety standards to protect the user and facilitate efficient use. This regulation is important for manufacturers and users, as it guarantees that drills are safe and reliable in operation.
