Mini comparator clock of 40 mm LIMIT

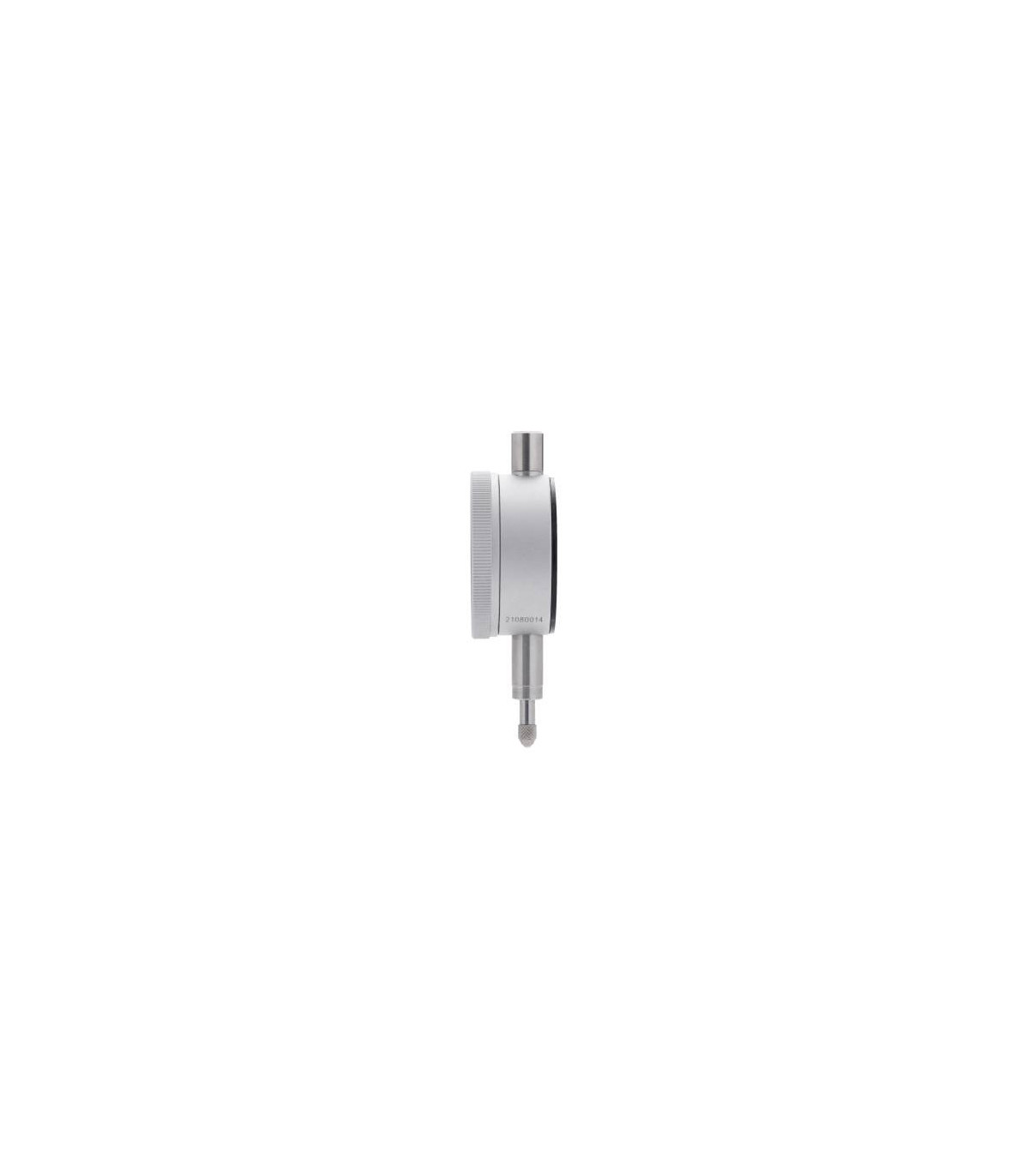

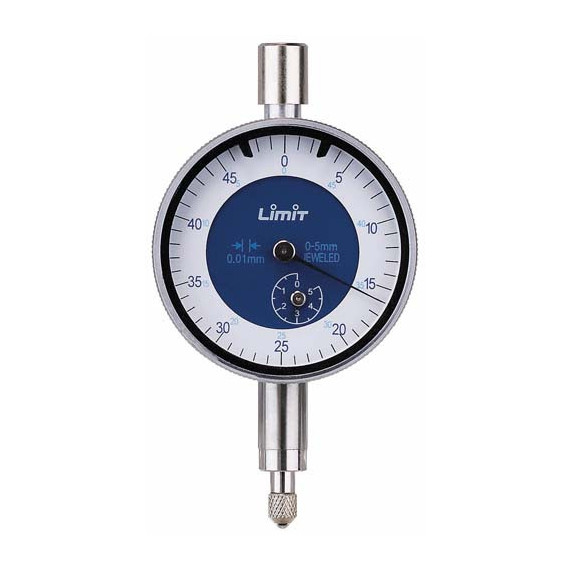

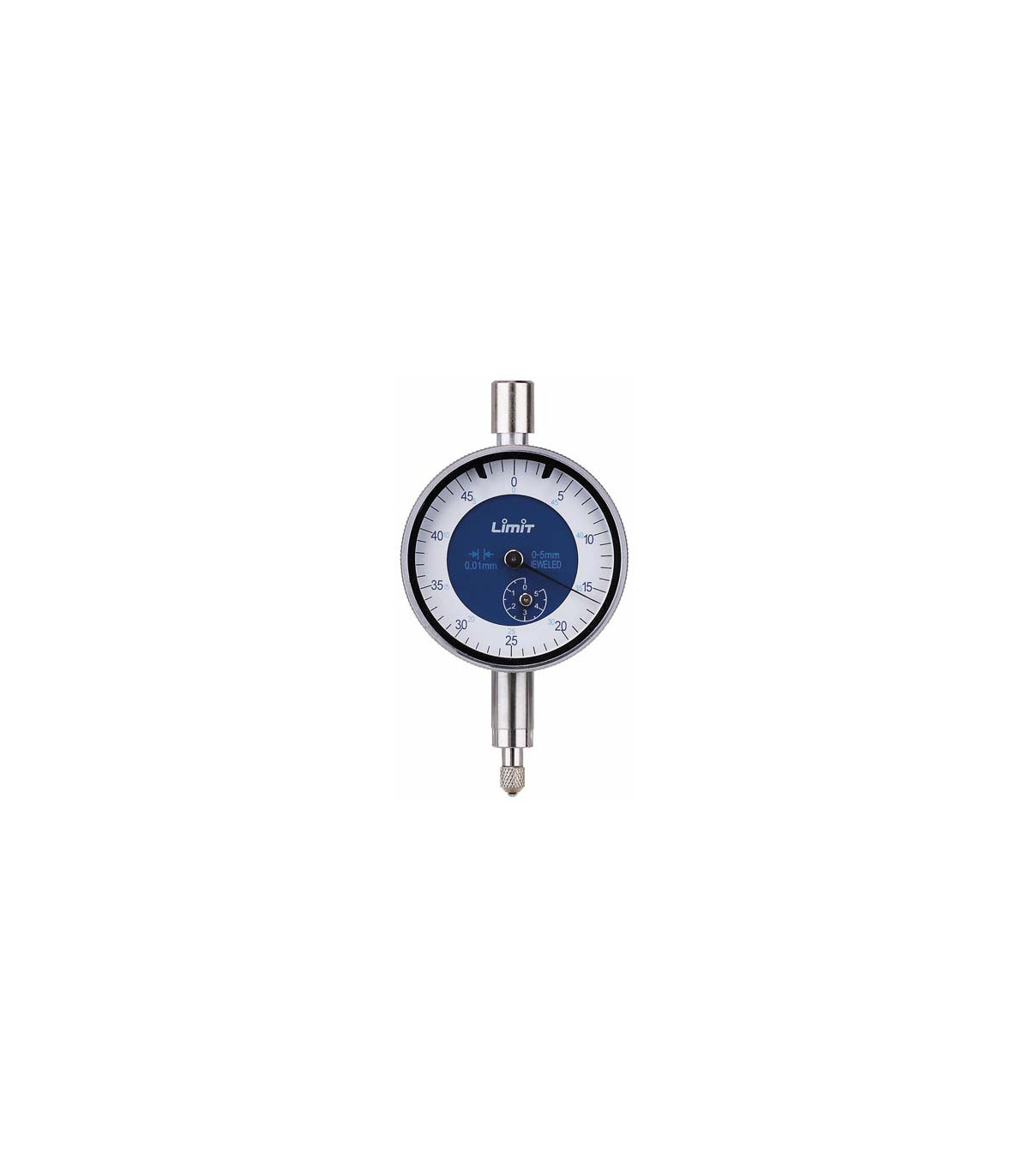

Mini dial gauge of 40 mm LIMIT. The 40 mm LIMIT mini dial gauge is a precise and compact instrument, ideal for measurements in mechanics and engineering. With a rotating scale and an indicator that shows complete millimeters, it offers a total measuring range of 5 mm. Its measuring tip is replaceable and complies with the tolerance according to DIN 878. It features a graduation of 0.01 mm and its analog design facilitates reading.

Without a mounting support, it is perfect for work in tight spaces, making it an essential tool for quality control and tolerance verification in various applications.

FEATURES

• Mini dial gauge.
• With rotating scale.
• Additional indicator that shows complete millimeters.
• Replaceable measuring tip.
• Without mounting support.
• Tolerance according to DIN 878.

TECHNICAL DATA

Measuring range, total: 5 mm

Dial diameter: 40 mm

Safety pin diameter: 8 mm

Units of measurement: mm

Scale: 0-50 50-0

Dimension F: 14 mm

Dimension G: 13 mm

Dimension H: 40 mm

Dimension J: 7 mm

Graduation of the measuring scale: 0.01 mm

Dimension A: 38 mm

Dimension B: 48 mm

Dimension D: 14 mm

Graduation of the scale: 0-50, 50-0

One turn of the pointer =: 0.5 mm

ETIM class code: EC003591

Design: Analog

STANDARDS

- DIN 878: The DIN 878 standard refers to a German standard that specifies the dimensions and tolerances of squares used in engineering and manufacturing. These squares are measuring tools that help ensure that angles are accurate, which is fundamental in many design and construction processes.

FOR WHAT TYPE OF WORK IS IT SUITABLE

The 40 mm LIMIT mini dial gauge is suitable for:

• Measuring small variations in dimensions
• Industry
• Engineering
• Manufacturing
• Mechanical workshops
