Analog comparator clock 1M MM DIN 878 LIMIT

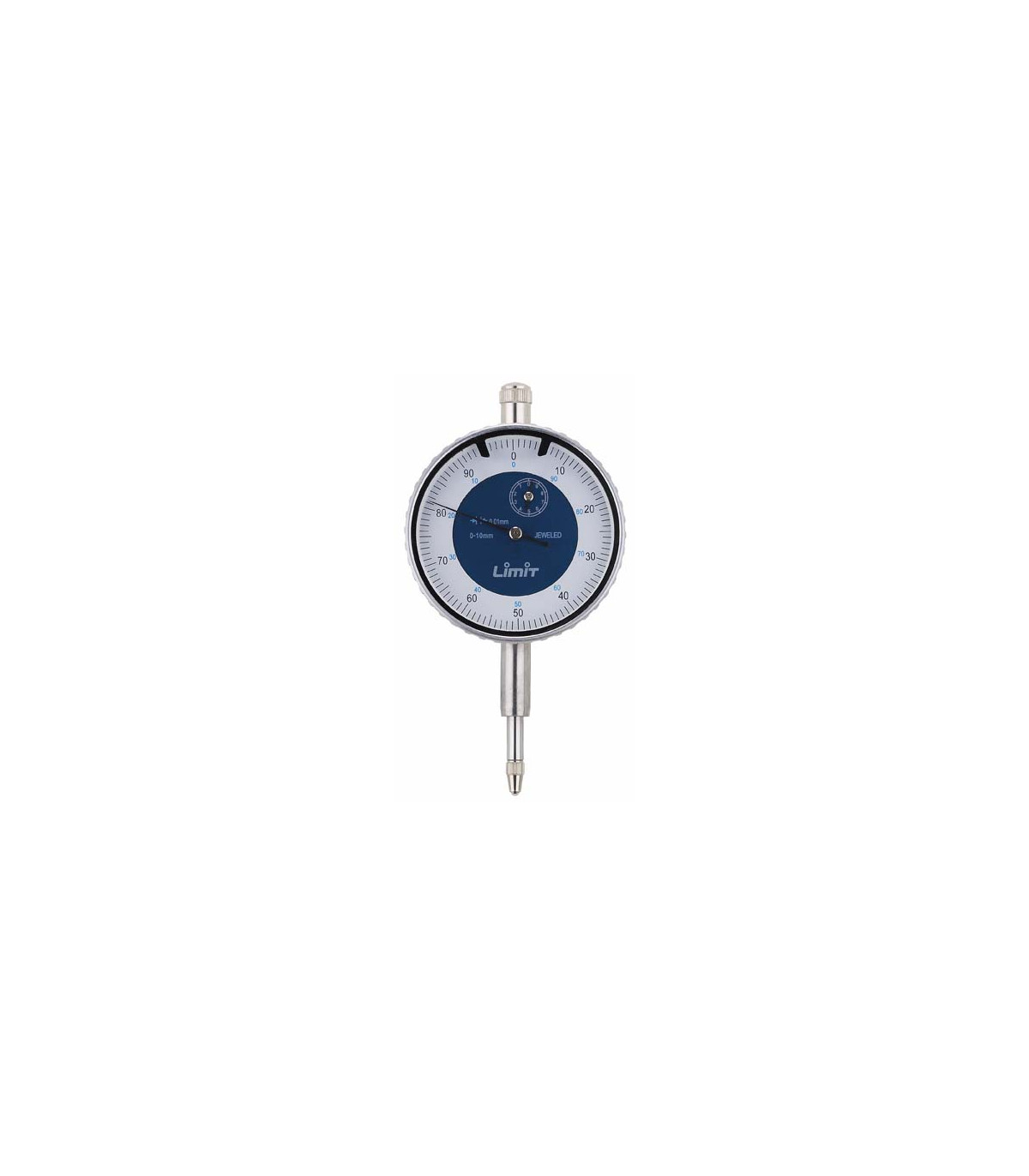

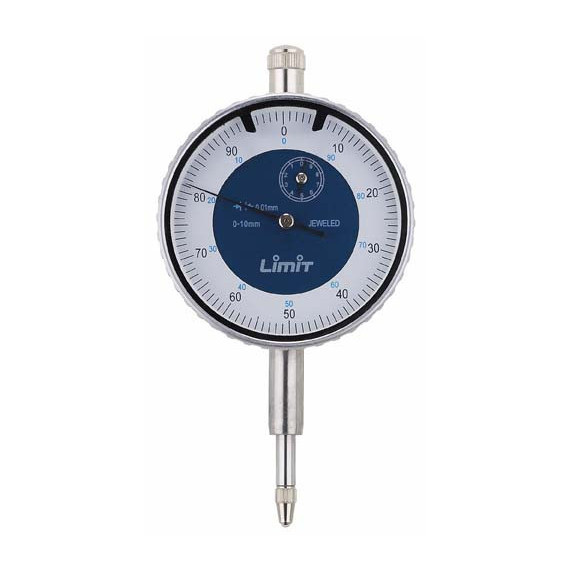

Analog dial gauges DIN 878 LIMIT. The analog dial gauges DIN 878 LIMIT are precise and versatile tools for measurements in mechanics. With a rotating scale and two adjustable tolerance indicators, they allow a total measurement range of 10 mm or 25 mm. Their aluminum body is durable, and the replaceable measuring tip provides convenience.

With a dial diameter of 58 mm and a graduation of 0.01 mm, they facilitate reading. Without a mounting support, they are ideal for work in tight spaces. They comply with the tolerance according to DIN 878 and are essential for quality control and tolerance verification in various applications.

FEATURES

• With a rotating scale and two adjustable tolerance indicators.
• Additional indicator that shows whole millimeters.
• Aluminum body.
• Replaceable measuring tip.
• No mounting support.
• Tolerance according to DIN 878.

TECHNICAL DATA

Total measurement range: 10 mm / 25 mm

Dial diameter: 58 mm

Safety pin diameter: 8 mm

Units of measurement: mm

Scale: 0-100 100-0

Dimension F: 18 mm

Dimension G: 21 mm / 34 mm

Dimension H: 54 mm

Dimension J: 8.5 mm

Graduation of the measurement scale: 0.01 mm

Dimension A: 44 mm / 38 mm

Dimension B: 69 mm / 81 mm

Dimension D: 17 mm

One turn of the pointer =: 1 mm

ETIM class code: EC003591

Design: Analog

STANDARDS

- DIN 878: The DIN 878 standard refers to a German standard that specifies the dimensions and tolerances of squares used in engineering and manufacturing. These squares are measuring tools that help ensure that angles are accurate, which is fundamental in many design and construction processes.

FOR WHAT TYPE OF WORK IS IT APPROPRIATE

The analog dial gauges DIN 878 LIMIT are suitable for:

• Measuring small variations in dimensions
• Industry
• Engineering
• Manufacturing
• Mechanical workshops
