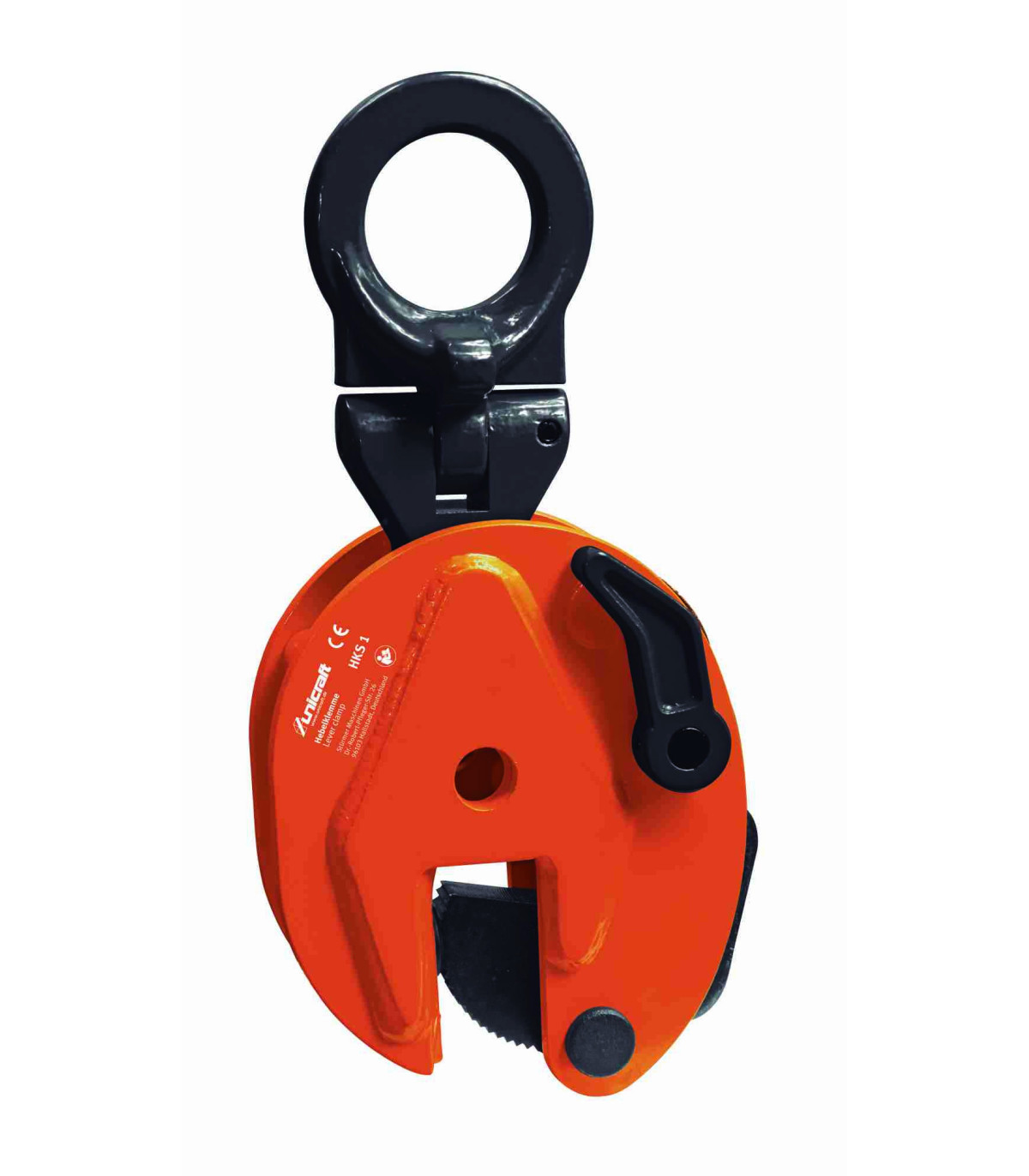

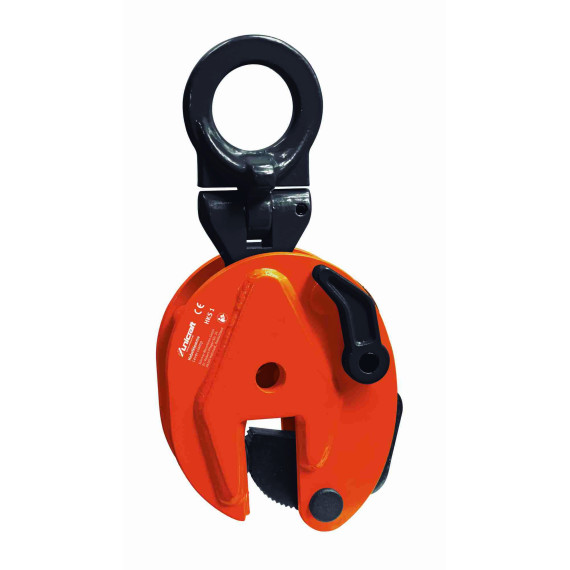

Vertical lifting claws HKS 2 load of 2 T UNICRAFT

Vertical lifting claws HKS 2 load of 2 T UNICRAFT. The vertical lifting claws HKS 2 from UNICRAFT, with a load capacity of 2 tons, are perfect for lifting sheets, beams, and steel structures. Designed for vertical and lateral movement of 180°, they feature a lever safety lock that ensures tension-free movement. They require a minimum load of 10% of their nominal capacity, and the hardness of the transported material must not exceed 30 HRC. Their gripping range is from 0 to 25 mm and they can be fixed laterally thanks to their rotating elements, providing versatility and safety in various industrial applications.

FEATURES

• Intended for vertical lifting, 180° lateral movement.
• Allows lifting of sheets, beams, and steel structures.
• Safety lock via lever, ensures tension-free movement.
• Minimum load of 10% of nominal capacity, the hardness of the surface of the transported material must not exceed 30 HRC.
• Can be fixed laterally thanks to the rotating elements.

TECHNICAL SPECIFICATIONS

Load capacity 2 tons

Gripping range 0-25 mm

VPE 1

Dimensions and weights

Approximate length 175 millimeters

Approximate width/depth 75 millimeters

Approximate height 385 millimeters

Approximate weight. 8 kilos

COMPONENTS/PACKAGING

Unit: piece(s).

Packaging unit: 1

FOR WHAT TYPE OF WORK IS IT SUITABLE

The vertical lifting claws HKS 2 load of 2 T UNICRAFT are suitable for:

• Sheets
• Beams
• Steel structures
