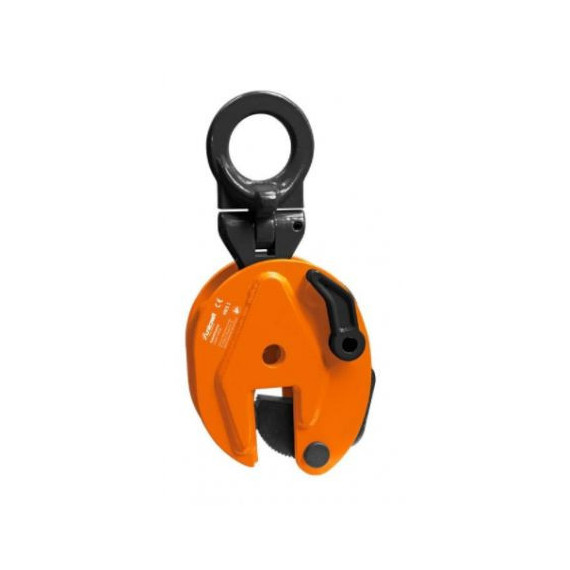

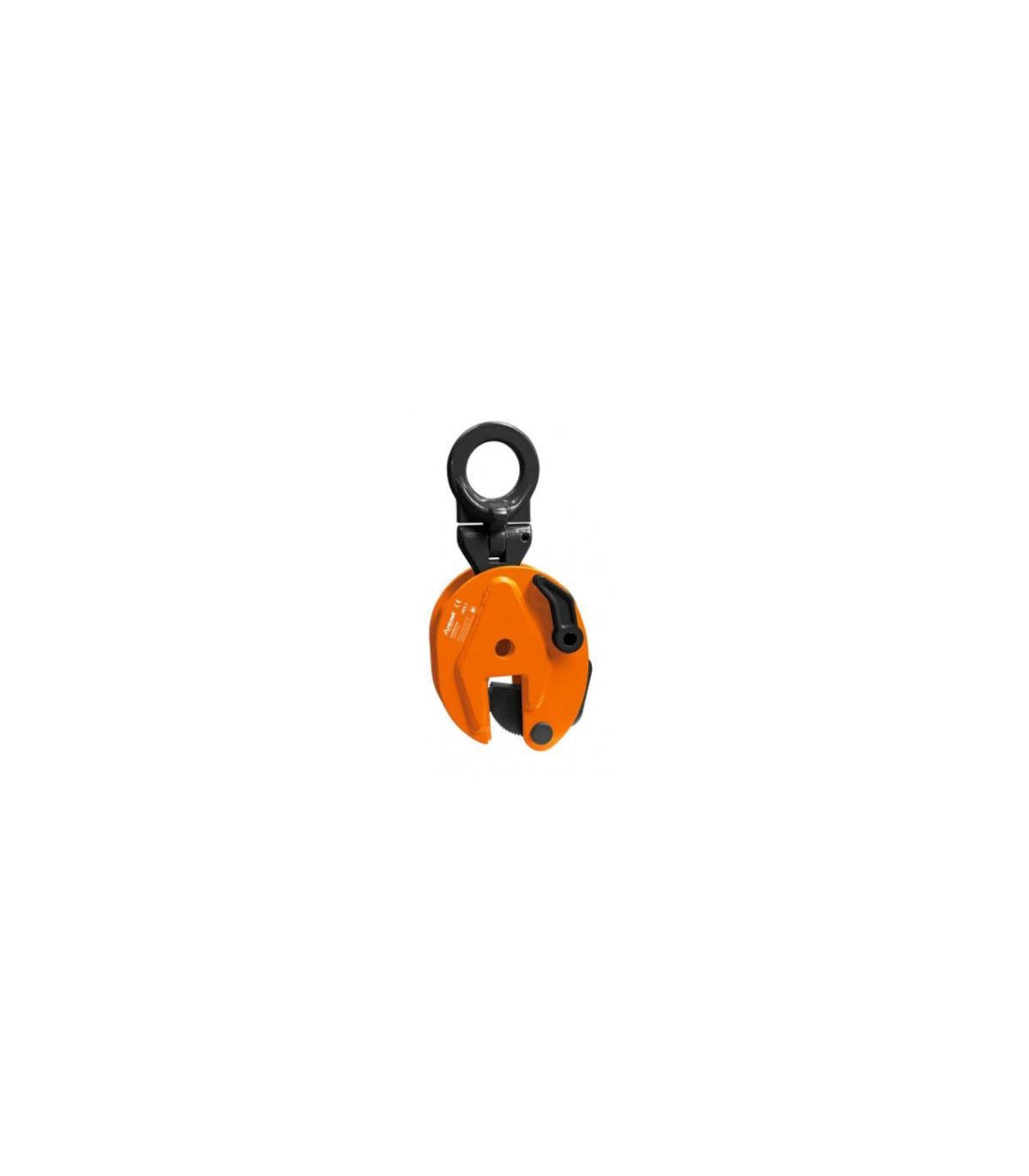

Vertical lifting claws HKS 3 load of 3 T UNICRAFT

Vertical lifting claws HKS 3 load of 3 T UNICRAFT. The HKS 3 vertical lifting claws from UNICRAFT, with a load capacity of 3 tons, are ideal for lifting sheets, beams, and steel structures. Designed for vertical and lateral movement of 180°, they include a lever safety lock that ensures tension-free movement.

They require a minimum load of 10% of their nominal capacity, and the hardness of the material must not exceed 30 HRC. With a gripping range of 0 to 30 mm, they measure approximately 215 mm in length, 102 mm in width, and 430 mm in height, weighing around 15 kilos, making them a robust and versatile tool.

FEATURES

• Designed for vertical lifting, with 180° lateral movement.
• Allows for the lifting of sheets, beams, and steel structures.
• Safety lock via lever ensures tension-free movement.
• Minimum load of 10% of nominal capacity; the hardness of the transported material's surface must not exceed 30 HRC.
• Can be fixed laterally thanks to the rotating elements.

TECHNICAL SPECIFICATIONS

Load capacity 3 tons

Gripping range 0 – 30 mm

VPE 1

Dimensions and weights

Approx. length 215 millimeters

Approx. width/depth 102 millimeters

Approx. height 430 millimeters

Approx. weight 15 kilos

COMPONENTS/PACKAGING

Unit: piece(s).

Packaging unit: 1

FOR WHAT TYPE OF WORK IS IT SUITABLE

The HKS 3 vertical lifting claws with a load of 3 T UNICRAFT are suitable for:

• Sheets
• Beams
• Steel structures

CERTIFICATION

Quality Management System of the Stürmer Group certified according to ISO 9001:2015

ISO 9001 is a globally recognized standard for quality management. It helps organizations of all sizes and sectors improve their performance, meet customer expectations, and demonstrate their commitment to quality.

Its evaluation basis includes:

Customer requirement orientation

Compliance with standards and guidelines

Knowledge management

Clearly defined process flows

Corporate responsibility

Sustainability, development, and innovation

Risk management
