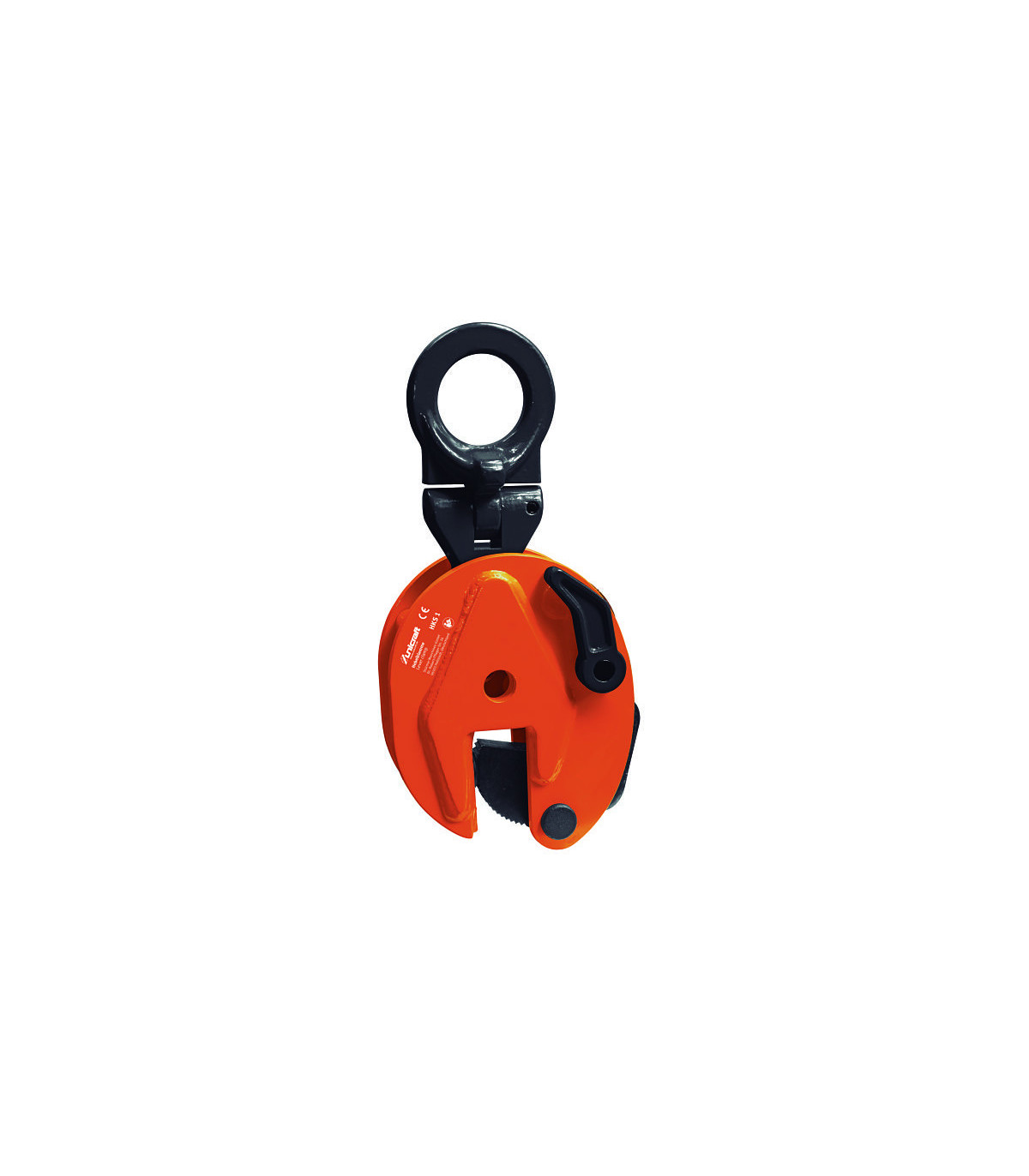

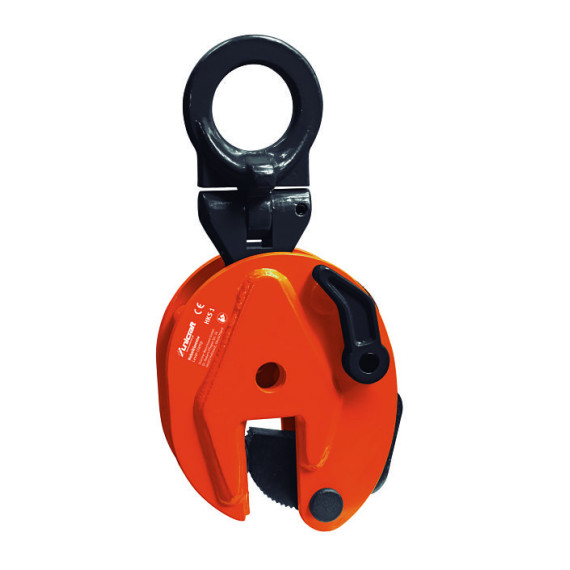

Vertical lifting claws HKS 5 load of 5 T UNICRAFT

Vertical lifting claws HKS 5 load of 5 T UNICRAFT. The HKS 5 vertical lifting claws from UNICRAFT, with a load capacity of 5 tons, are perfect for lifting sheets, beams, and steel structures. Designed for vertical and lateral movement of 180°, they feature a lever safety lock that ensures tension-free movement.

They require a minimum load of 10% of their nominal capacity, and the hardness of the transported material must not exceed 30 HRC. With a gripping range of 0 to 50 mm, these claws measure approximately 232 mm in length, 112 mm in width, and 500 mm in height, weighing around 23 kilos, making them robust and versatile for various applications.

FEATURES

• Intended for vertical lifting, with 180° lateral movement.
• Allows for the lifting of sheets, beams, and steel structures.
• Safety lock via lever ensures tension-free movement.
• Minimum load of 10% of nominal capacity, the hardness of the surface of the transported material must not exceed 30 HRC.
• Can be fixed laterally thanks to the rotating elements.

TECHNICAL SPECIFICATIONS

Load capacity 5 tons

Gripping range 0 – 50 mm

VPE 1

Dimensions and weights

Approx. length 232 millimeters

Approx. width/depth 112 millimeters

Approx. height 500 millimeters

Approx. weight. 23 kilos

COMPONENTS/PACKAGING

Unit: piece(s).

Packaging unit: 1

FOR WHAT TYPE OF WORK IS IT APPROPRIATE

The HKS 5 vertical lifting claws with a load of 5 T UNICRAFT are suitable for:

• Sheets
• Beams
• Steel structures
