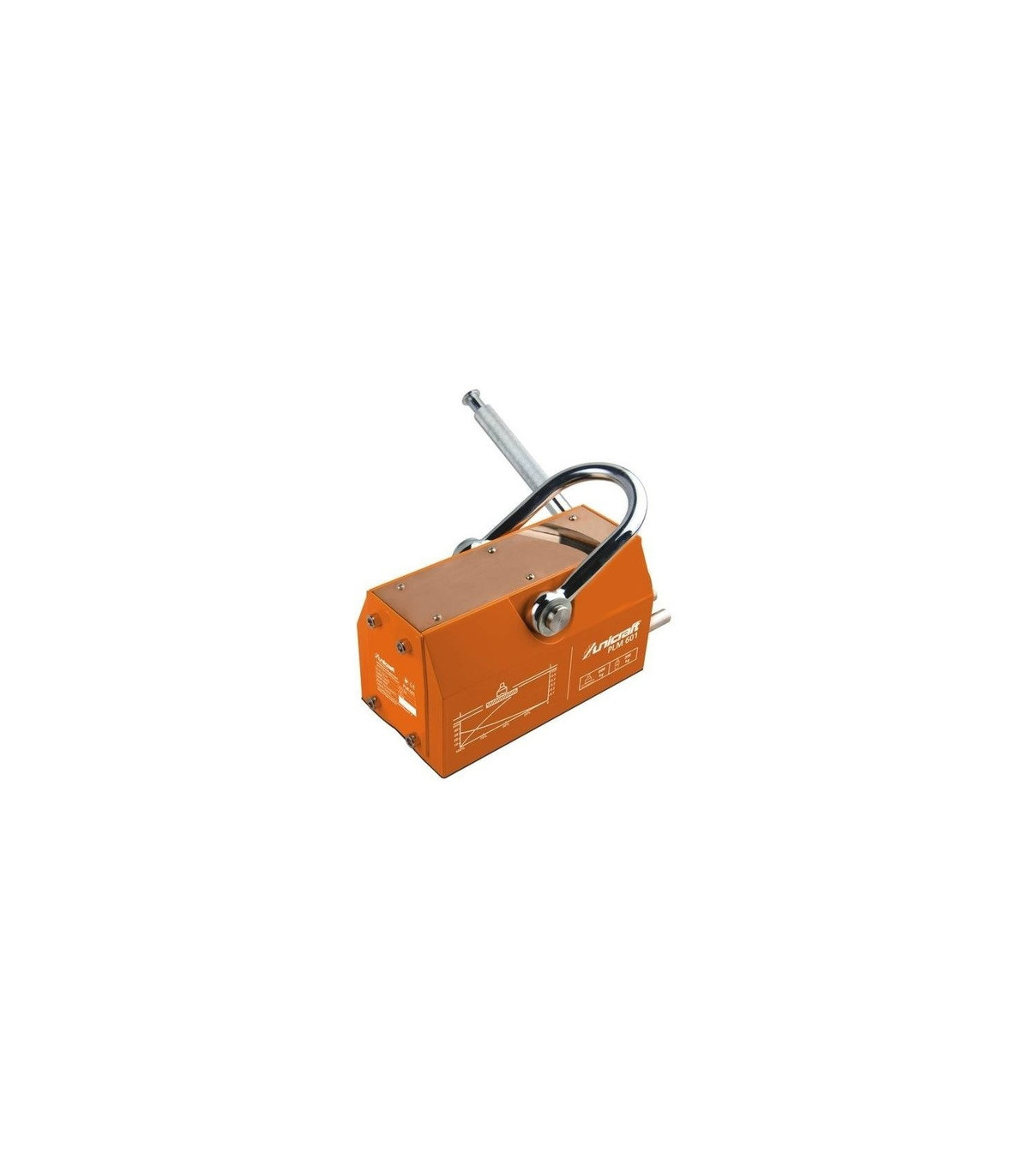

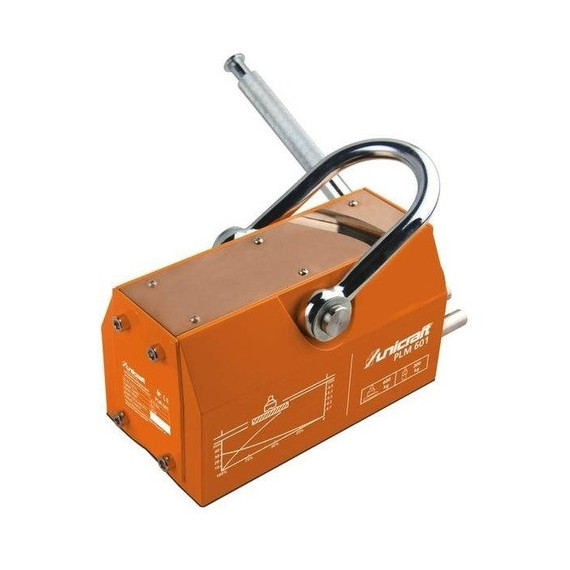

Magnetic elevator PLM 2001 with a load capacity of 2000 kg UNICRAFT

Magnetic lifter PLM 2001 load capacity of 2000 kg UNICRAFT. The magnetic lifter PLM 2001 from UNICRAFT, with a load capacity of 2000 kg, is ideal for construction, manufacturing, warehouses, and maintenance. Without the need for batteries, its on and off operation is easily done with a manual lever. The interlocking system ensures that there is no unintentional demagnetization, offering a high safety standard (safety factor of 3.5). Designed for flat and round materials, it allows lifting up to 1000 kg in round materials. This powerful lifter is essential in industrial environments that require safe and efficient handling of heavy loads.

FEATURES

• Independent of batteries or external power supply
• Easy on and off by moving the manual lever.
• The lever lock in the activated state through safety interlocking prevents unintentional demagnetization.
• High safety standard thanks to the proven safety factor of 3.5
• For flat and round materials using a V-shaped base plate

TECHNICAL SPECIFICATIONS

Load capacity 2000 kilos

Load capacity for round material 1000 kilos

VPE 1

Dimensions and weights

Height of the chassis 204 millimeters

Approx. length 394 millimeters

Approx. width/depth 196 millimeters

Approx. weight 105 kilos

COMPONENTS/PACKAGING

Unit: piece(s).

Packaging unit: 1

FOR WHAT TYPE OF WORK IS IT SUITABLE

The magnetic lifter PLM 2001 load capacity of 2000 kg UNICRAFT is suitable for:

• Construction
• Manufacturing
• Warehouses
• Maintenance

CERTIFICATION

Quality Management System of the Stürmer Group certified according to ISO 9001:2015

ISO 9001 is a globally recognized standard for quality management. It helps organizations of all sizes and sectors improve their performance, meet customer expectations, and demonstrate their commitment to quality.

Its evaluation basis includes:

Customer requirement orientation

Compliance with standards and guidelines

Knowledge management

Clearly defined process flows

Corporate responsibility

Sustainability, development, and innovation

Risk management
