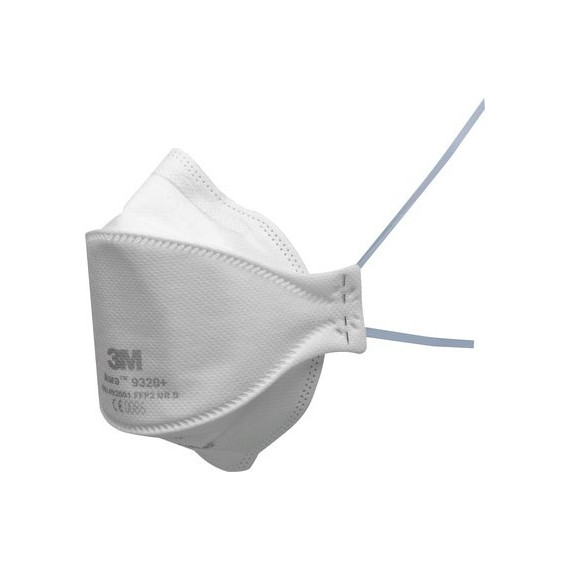

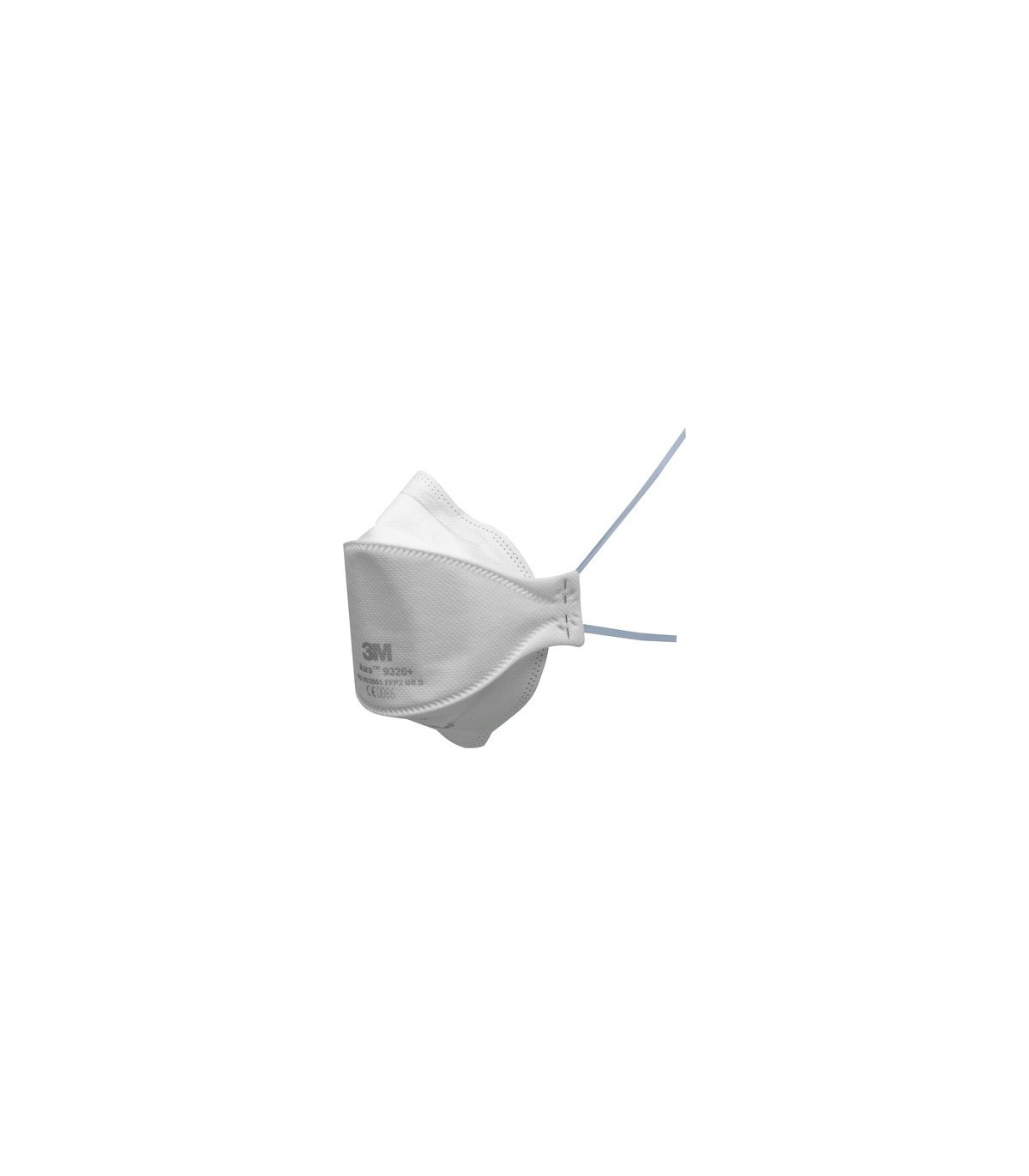

Mask for particles without valve 9320+ Aura FFP2 NR D folded (5 masks) 3M

The 9320+ mask from the brand 3M is a type FFP2 respiratory protection mask that complies with the European standard EN 149:2001+A1:2009. This mask is designed to protect the user from solid and non-volatile liquid particles in the air, and has a minimum filtration efficiency of 94%.

The 9320+ mask is made with a high-quality filtering material that consists of three layers. The outer layer is moisture-resistant and protects the mask from dirt and damage. The middle layer is a high-efficiency filtering material that traps suspended particles in the air. The inner layer is soft and comfortable against the skin, allowing for prolonged use without causing irritation.

This mask is suitable for use in a wide variety of work and professional environments, such as in the food industry, construction, mining, agriculture, and cleaning, among others. It can also be used by healthcare personnel, for example, in hospitals and medical care centers.

It is important to note that the 9320+ mask should not be used in environments containing toxic gases or vapors, nor for protection against viruses. In the latter case, it is recommended to use a mask with a higher filtration efficiency, such as an FFP3 mask.

In summary, the 9320+ mask from the brand 3M is an FFP2 mask designed to protect the user from solid and non-volatile liquid particles in the air. It is made with high-quality materials and is suitable for a wide variety of work and professional environments. It is important to follow the manufacturer's instructions and use the mask according to the recommendations to ensure its effectiveness.

Particle mask without valve with Aura FFP2 NR D folded (5 masks) 3M. The FFP2 mask 3M Aura 9320 provides comfort and design without compromising its effectiveness. It protects against low concentrations of dust and mists commonly found in a wide variety of industrial applications and other situations where FFP2 protection is required.

Made from sweat-absorbing material. - Soft contact to the face.
Very compatible with glasses minimizing fogging. 3M Advanced design filtering material

FEATURES

• Folded
• Patented three-panel design.
• Improves communication and effectiveness thanks to its three-panel design.
• It is easier to carry and store due to its individual and lightweight packaging.
• Its comfort and aesthetics do not compromise its effectiveness. Nasal Clip
• Made from sweat-absorbing material. - Soft contact to the face.
• Very compatible with glasses minimizing fogging. 3M Advanced design filtering material
• High filtration efficiency combined with low breathing resistance. 3M High Ventilation Valve
• The innovative VAV valve reduces discomfort, allowing exhaled air to escape from the mask and preventing heat buildup inside. Retaining bands
• The material of the retaining bands adapts to any head size for an effective fit without increasing tension.
• Color code indicating the level of protection. Individual Packaging

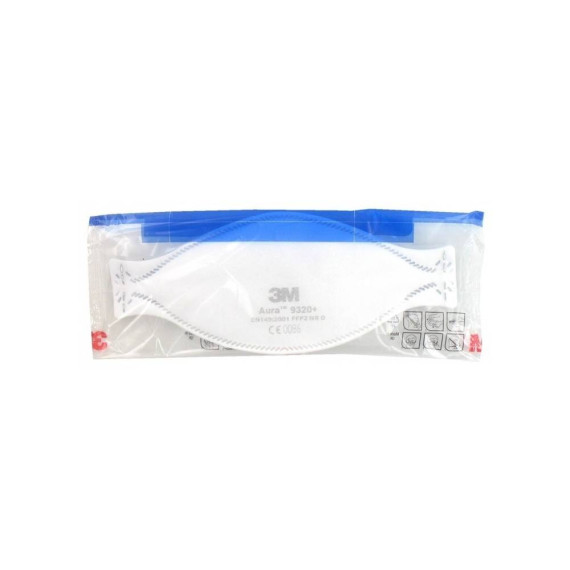

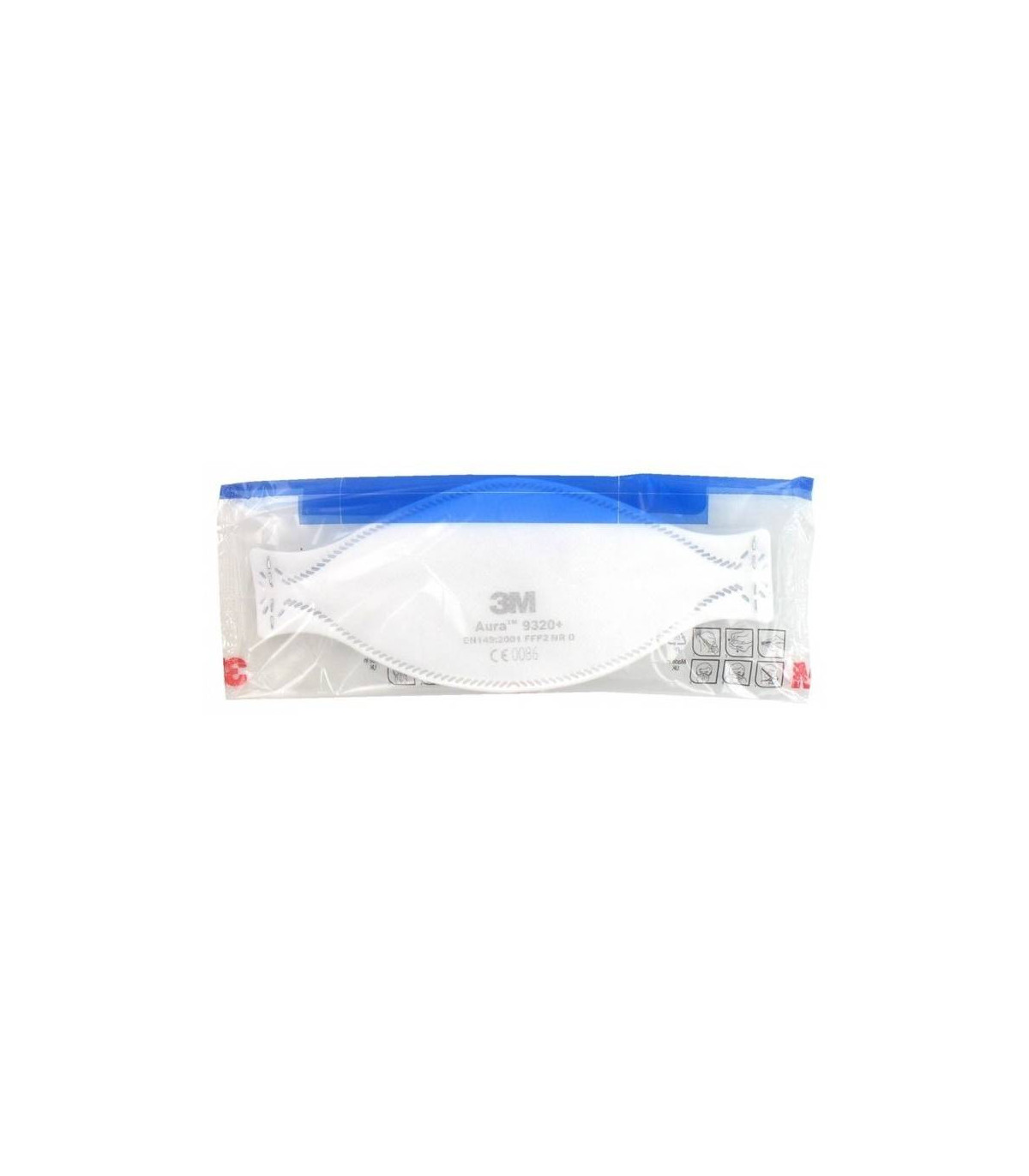

• Hygienic individual packaging that protects the mask from any contamination before use.
• Unit sale price.
• It is easier to carry and store in the workplace.

DESCRIPTION

BENEFITS

• Disposable FFP2 NR D mask that protects against solid and/or non-volatile liquid particles (classification EN 149:2001+Ai:2009)
• High-performance filtering material 3M, which facilitates breathing by reducing resistance and increasing user comfort
• Innovative 3-panel design: adapts to faces of different shapes and sizes allowing for greater facial movement during conversation. This makes it much more comfortable to wear and easy to store when not in use
• With individual packaging: hygienic packaging that protects the mask from any contamination before use. It is easier to carry and store before use
• Raised upper panel Reduces the flow of hot and humid air exhaled through the upper panel, helping to reduce fogging on eye protection
• Head strap Keeps the respirator firmly in place, contributing to a proper and comfortable seal, with a blue color code to indicate the performance level: FFP2 according to EN 149:2001+A1:2009
• Individual packaging Hygienic packaging helps protect the mask from breathing before use, allows for comfortable storage, and distribution in the workplace
• Compatible with: 3M eye protection, 3M hearing protection

MATERIALS

The components of the masks are made from the following materials:

• Adjustment bands: Polyisoprene
• Clips: Steel
• Nasal pad: Polyurethane
• Nasal clip: Aluminum
• Filter: Polypropylene
• Valve*: Polypropylene
• Valve diaphragm*: Polyisoprene

These products do not contain components made with natural rubber latex.

Maximum weight of the products:

• Without valve (9310+ and 9320+) = 10g
• With valve (9312+, 9322+ & 9332+) = 15g

* Only models 9312+, 9322+ and 9332+

STANDARDS

These products meet the requirements of the European standard EN 149:2001 + A1:2009, self-filtering masks for particles.

These masks offer protection against solid and non-volatile liquid particles.

These products are classified according to their filtration efficiency and inward leakage value (FFP1, FFP2, and FFP3), also according to their usage time and saturation resistance. The tests included in this standard include filter penetration, tests after storage, flammability, breathing resistance, and inward leakage. Reusable masks must also reflect care instructions and mandatory tests of behavior after storage and saturation (the saturation test is optional for disposable masks). You can purchase a copy of the EN 149:2001 +A1:2009 standard through AENOR.

Designation:

• R = Reusable
• NR = Non-reusable (only one work shift)
• D = Passes the saturation test

APPROVALS

These products meet the requirements of the European Directive 89/686/EEC, Personal Protective Equipment Directive (in Spain, R.D. 1407/1992) and therefore, have CE marking.

The certification under Article 10, CE type examination and Article 11, CE quality control, has been issued by BSI Product Services, Maylands Avenue, Hemel Hempstead, HP2 4SQ, Great Britain (Notified Body number 0086).

APPLICATIONS

These masks are suitable for use in maximum concentrations of solid and non-volatile liquid particles of:

Reference      Classification EN 149+A1     Exhalation valve       VLA

    9320+                FFP2 NR D                       Without valve                 12

Respiratory protection is only effective if selected, fitted, and used correctly and when worn for the entire duration of exposure to contaminants.

STORAGE AND TRANSPORT

The 3M™ Aura™ 9300+ particle masks have a shelf life of 5 years. The expiration date is marked on the packaging. Before starting to use them, check that the product is within its shelf life. The product should be stored in a clean, dry place, in a temperature range of – 20°C to + 25°C at a relative humidity <80%. Use the original packaging to store and transport the product.

HOW TO DISPOSE OF THE PRODUCT

Contaminated products must be disposed of according to local legislation for hazardous waste.

PLACEMENT INSTRUCTIONS

Before putting on the mask, ensure that your hands are clean.

It is important to note that the mask should be replaced when it becomes wet or dirty, or after continuous use of 8 hours. Additionally, it is recommended not to use the mask for more than one day and not to share it with others.

1. With the back of the mask facing up and using the tab of the lower panel, unfold the mask by separating the top and bottom edges, opening them until a cup shape is obtained. Slightly bend the center of the nasal clip.

2. Ensure that both edges are fully unfolded

3. Hold the mask with one hand with the open edges facing the face. Grab both adjustment bands with the other hand. Place the mask under the chin, with the nasal clip facing up, and pull the adjustment bands over the head.

4. Place the upper adjustment band on the crown and the lower one on the neck, below the ears. The bands should not be twisted. Adjust the top and bottom edges for more comfort, ensuring they are not bent

5. Using both hands, mold the nasal clip around the nose (bottom) to ensure a good fit and seal. Molding the clip with one hand may result in a less effective fit.

6. Check the fit before entering the contaminated area.

FIT CHECK

1. Cover the front of the mask with both hands, trying not to distort the fit of the mask.

2. (a) MASKS WITHOUT VALVE - EXHALE forcefully;

(b) MASKS WITH VALVE - INHALE forcefully.

3. If leaks are noticed around the nose, readjust the nasal clip to eliminate the leak. Repeat the fit check.

4. If you notice leaks around the edges, reposition the adjustment bands on both sides of the head to eliminate the leak. Repeat the fit check.

If you CANNOT achieve a proper fit, DO NOT enter the contaminated area. Contact your supervisor.

Fit tests are mandatory in some countries.

For more information regarding fit tests, please contact 3M.
