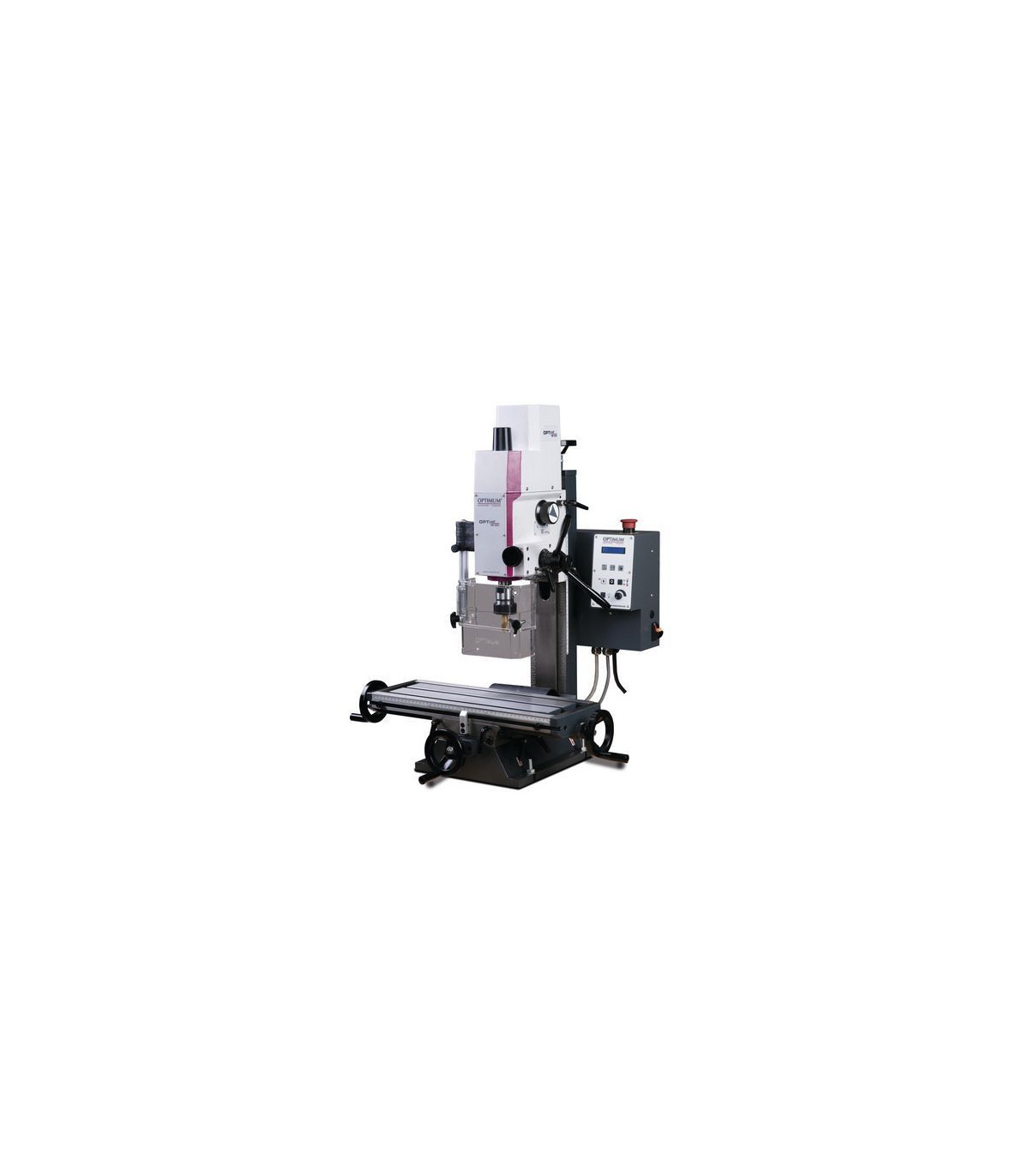

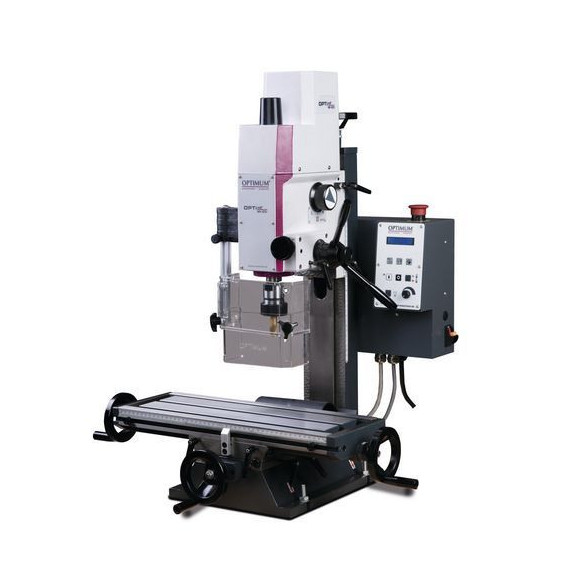

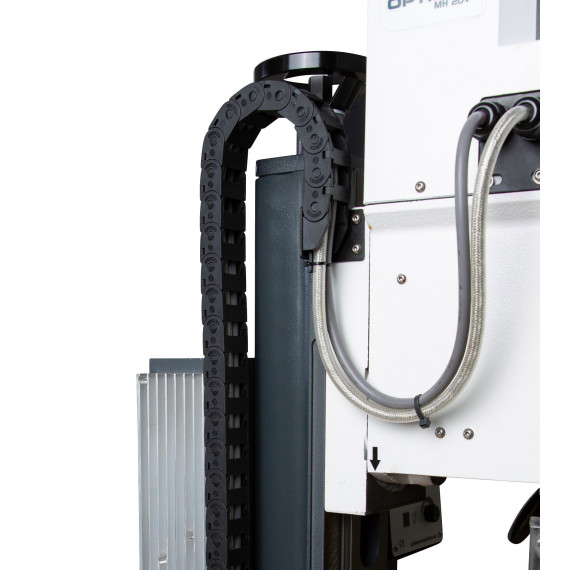

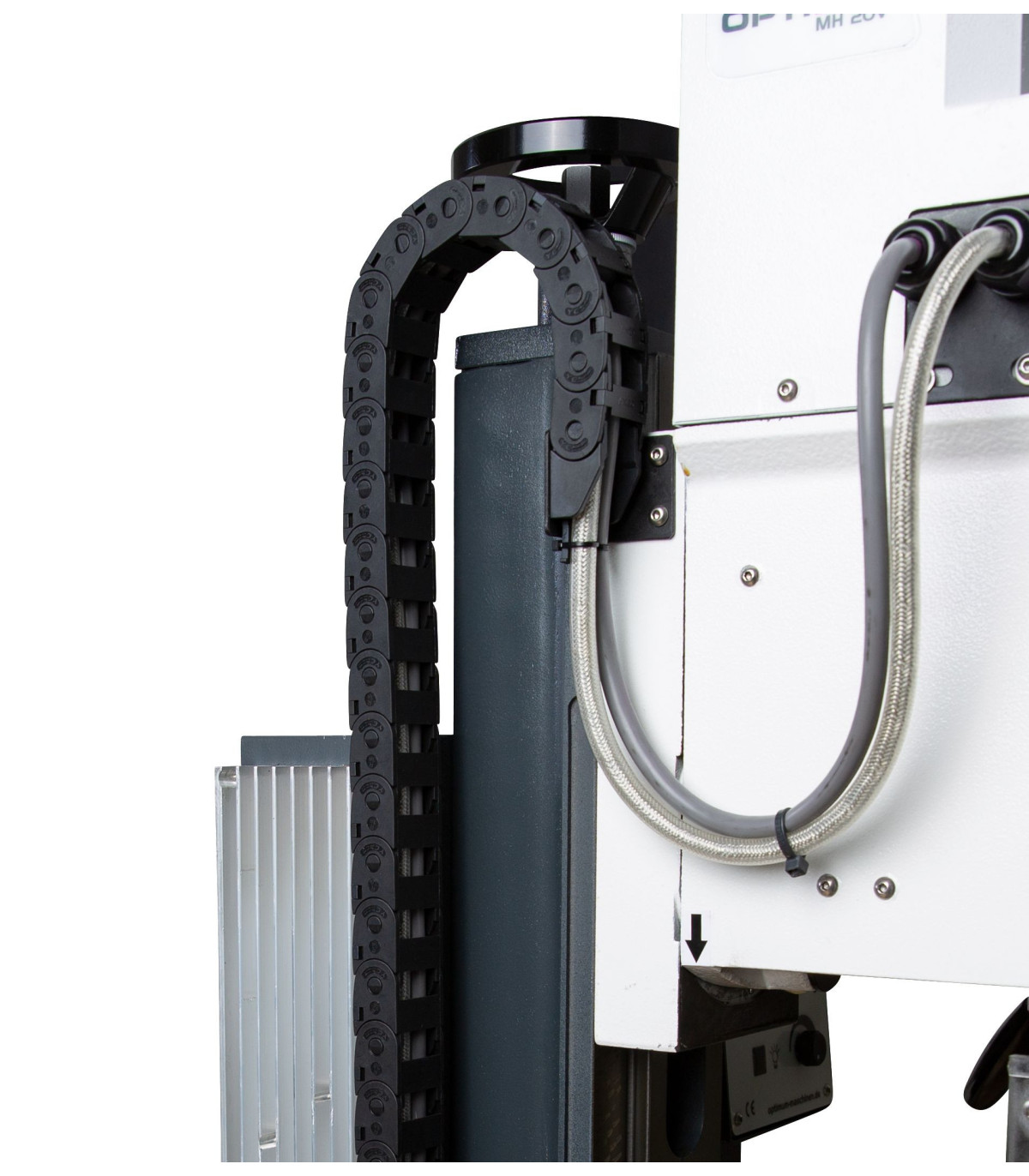

Drilling milling machine for metallurgy MH 20 V OPTIMUM

Drilling milling machine for metallurgy MH 20 V OPTIMUM. The MH 20 V OPTIMUM drilling milling machine stands out for its precision and high concentricity, with a powerful motor and safe electrical system. Its generous cross table and tiltable head at ±60° allow for versatile work. Additionally, it features chip protection, adjustable stops, and preparation for a digital indicator. With dimensions of 750x650x820 mm and a weight of 94 kg, it is ideal for metallurgy, ensuring quality in drilling and milling.

FEATURES

• Precision processing
• High concentricity thanks to the tapered roller bearings ≤ 0.015 mm measured in the sleeve
• Motor with a two-stage transmission ratio for powerful motor power transmission.
• Powerful DC motor with continuous current monitoring
• Air filter for motor
• New electrical system with improved motor protection (expanded circuit board and EMC circuit board)
• Safety electrical system in 24-volt version
• Control electronics with integrated relay control
• Solid cross table with generous dimensions, precisely machined surface, with T-slots and adjustable guides
• Adjustable end stops
• Stable dovetail guide with adjustable wedges
• Adjustable and re-adjustable feed spindle play
• Emergency stop switch
• The drilling/milling head can be tilted ±60
• Right/left rotation
• Machine lamp
• Double-row angular contact ball bearings on the axes, adjustable with no play

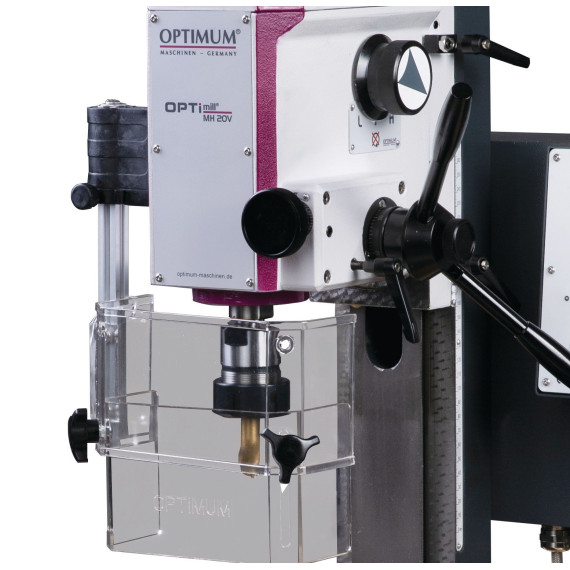

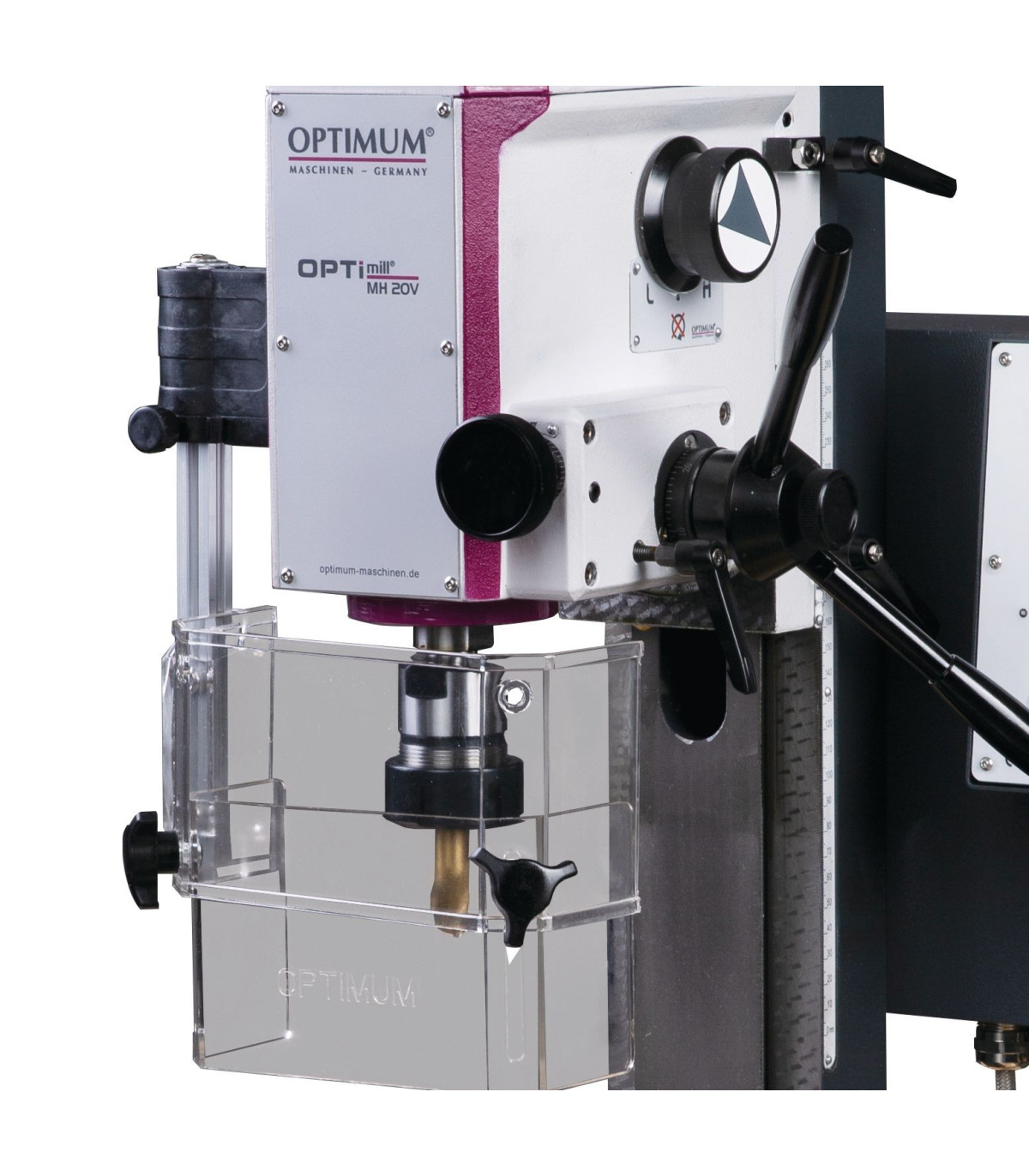

• Height-adjustable protective screen with micro switch, against chip and part projection, for maximum user protection.
• Preparation for mounting the digital position indicator DRO5 on the X and Y axes (slot prepared for later installation of magnetic strips)
• Lockable main switch

TECHNICAL SPECIFICATIONS

Cross table

Vertical spindle play - cross table 255 millimeters

Dimensions and weights

Approximate length 750 millimeters

Approximate width/depth 650 millimeters

Approximate height 820 millimeters

Approximate weight. 94 kilograms

Drilling/milling head

Head rotation range ± 60°

Drilling/milling output

Maximum milling head size 52 millimeters

Maximum spindle cutter size 20 millimeters

High-performance steel for drilling (S235JR) 16 millimeters

High-performance steel for continuous drilling (S235JR) 12 millimeters

Electrical data

Supply voltage 230 V

Network frequency 50 Hz

Horizontal milling table

Table length 510 millimeters

Table width 180 millimeters

T-slot size 12 millimeters

Number of T-slots 3

T-slot spacing 63 millimeters

Maximum load capacity 40 kilograms

Standards and certifications

Standard DIN EN 55011

EMC level C2

Axes

Manual X axis 280 millimeters

Manual Y axis 175 millimeters

Manual Z axis 210 millimeters

Vertical spindle

Reach 170 millimeters

Spindle chuck MK 2

Speed range 100 – 3000 min¯¹

Number of gears 2

Speed control electronically adjustable

Drive motor output S6-30 % operation 0.75 kW

Quill diameter 60 millimeters

Quill stroke 50 millimeters

VPE 1

COMPONENTS/PACKAGING

Unit: pcs.

Packaging unit: 1

Operational tool

FOR WHAT TYPE OF WORK IS IT SUITABLE

The MH 20 V OPTIMUM drilling milling machine is suitable for:

• Metal machining
• Component manufacturing
• Prototyping
• Industrial maintenance
• Crafting and modeling

CERTIFICATION

- DIN EN 55011: The DIN EN 55011 standard refers to the limits and measurement methods for the emission of electromagnetic interference from industrial, scientific, and medical equipment. This standard establishes criteria to ensure that devices do not generate interference that could affect other electronic equipment and also defines the permitted levels of electromagnetic radiation. It is essential to ensure compliance in the design and use of equipment operating in environments where electromagnetic compatibility is crucial.
