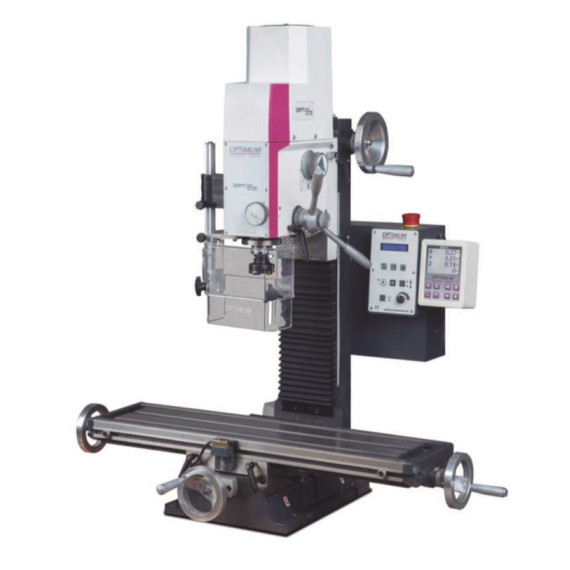

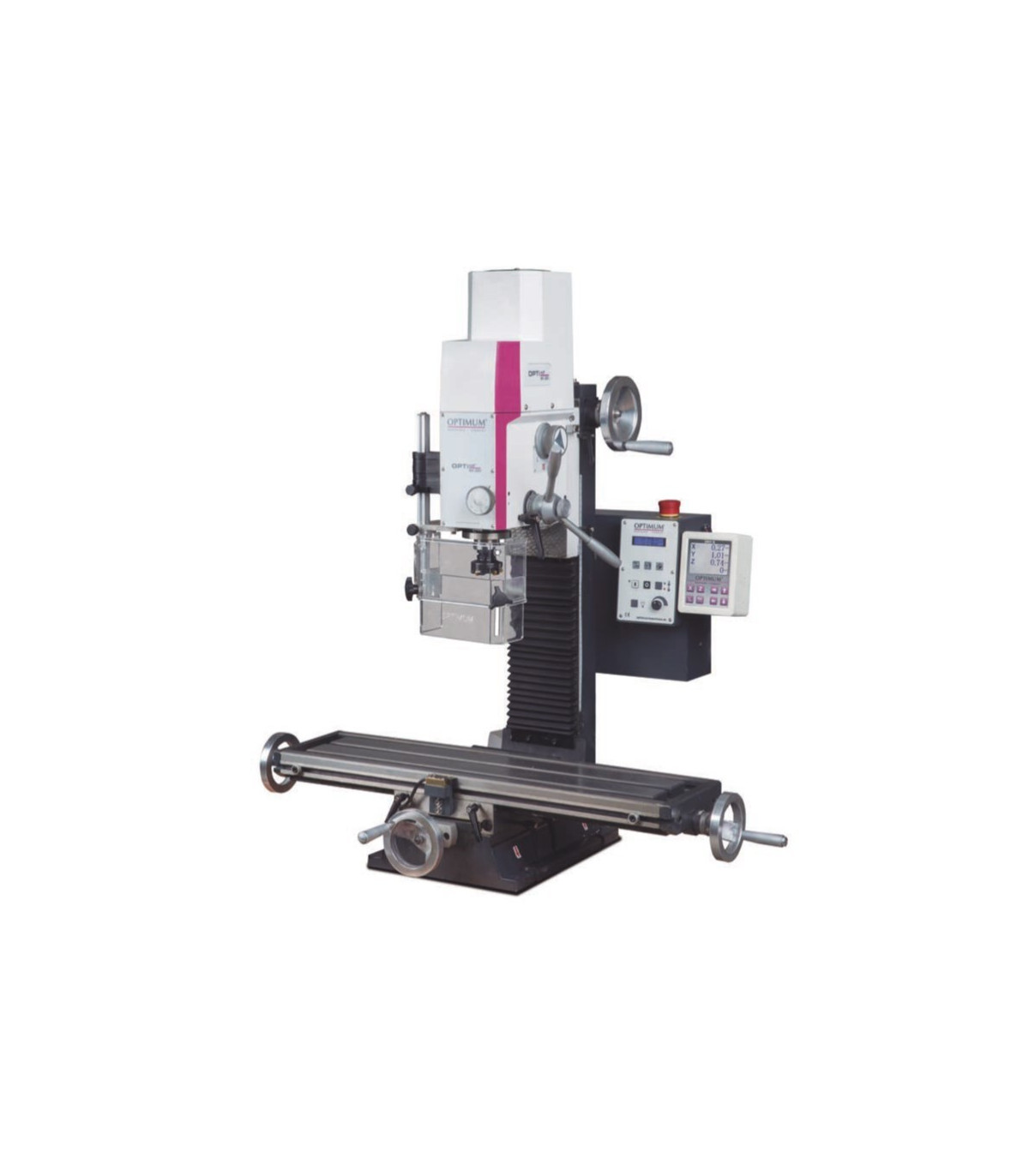

Robust high-precision milling machine MH 22 V OPTIMUM

Robust high-precision milling machine MH 22 V OPTIMUM. The MH 22 V OPTIMUM milling machine is robust and precise, with high concentricity and a powerful DC motor. Its generous cross table, ±60° tiltable head, and chip protection ensure efficient work. Additionally, it features adjustable stops, an emergency switch, and a safe electrical system. With dimensions of 745x650x950 mm and a weight of 120 kg, it is ideal for high-precision drilling and milling in metallurgy.

FEATURES

• Precision processing
• High concentricity thanks to the tapered roller bearings ≤ 0.015 mm measured in the sleeve
• Two-stage gear ratio motor for powerful motor power transmission.
• Powerful DC motor with continuous current monitoring
• Safety electrical system in 24-volt version
• Control electronics with integrated relay control
• Solid cross table with generous dimensions, precisely machined surface, with T-slots and adjustable guides
• Adjustable end stops
• Stable dovetail guide with adjustable wedges
• Fine feed
• Emergency stop switch
• The drilling/milling head can be tilted ±60°
• Right/left rotation
• Machine lamp
• Hole for easy lubrication of the trapezoidal spindle
• Double-row angular contact ball bearings on the axes, adjustable with no play
• Adjustable and re-adjustable feed spindle play
• Height-adjustable protective screen with micro switch to prevent chip and part projection, for maximum user protection.
• X, Y, and Z axes with slot prepared for later installation of magnetic tapes
• Bellows as guide protection

TECHNICAL SPECIFICATIONS

Cross table

• Vertical spindle play - cross table 360 millimeters
• Dimensions and weights
• Approximate length 745 millimeters
• Approximate width/depth 650 millimeters
• Approximate height 950 millimeters
• Approximate weight. 120 kilograms

Drilling/milling head

• Head rotation range ± 60°

Drilling/milling output

• Maximum milling head size 52 millimeters
• Maximum spindle cutter size 12 millimeters
• High-performance steel for drilling (S235JR) 20 millimeters
• High-performance steel for continuous drilling (S235JR) 16 millimeters

Electrical data

• Drive motor output 0.95 kW
• Supply voltage 230 V
• Network frequency 50 Hz

Horizontal milling table

• Table length 700 millimeters
• Table width 180 millimeters
• T-slot size 12 millimeters
• Number of T-slots 3
• T-slot spacing 63 millimeters
• Maximum load capacity 50 kilograms

Standards and certifications

• Standard DIN EN 55011
• EMC level C2

Axes

• X axis manual 480 millimeters
• Y axis manual 175 millimeters
• Z axis manual 270 millimeters

Vertical spindle

• Reach 170 millimeters
• Spindle chuck BT 20
• Speed range 90 – 3000 min¯¹
• Number of gears 2
• Speed control electronic
• Quill diameter 60 millimeters
• Quill stroke 40 millimeters
• VPE 1

COMPONENTS/PACKAGING

Unit: pcs.

Packaging unit: 1

Operating tool

FOR WHAT TYPE OF WORK IS IT SUITABLE

The robust high-precision milling machine MH 22 V OPTIMUM is suitable for:

• Metal machining
• Component manufacturing
• Prototyping
• Industrial maintenance
• Craftsmanship and modeling

CERTIFICATION

- DIN EN 55011: The DIN EN 55011 standard refers to the limits and measurement methods of electromagnetic interference emissions from industrial, scientific, and medical equipment. This standard establishes criteria to ensure that devices do not generate interference that could affect other electronic equipment and also defines the permitted levels of electromagnetic radiation. It is essential to ensure compliance in the design and use of equipment operating in environments where electromagnetic compatibility is crucial.

- EMC Level C2: The EMC Level C2 refers to an electromagnetic compatibility (EMC) standard that applies to electrical and electronic equipment and systems. Specifically, Level C2 indicates requirements for interference emissions and immunity to electromagnetic disturbances in industrial environments. Devices that meet this level are designed to operate without causing significant interference to other equipment and to withstand external disturbances, which is crucial in environments where various electronic devices coexist.
