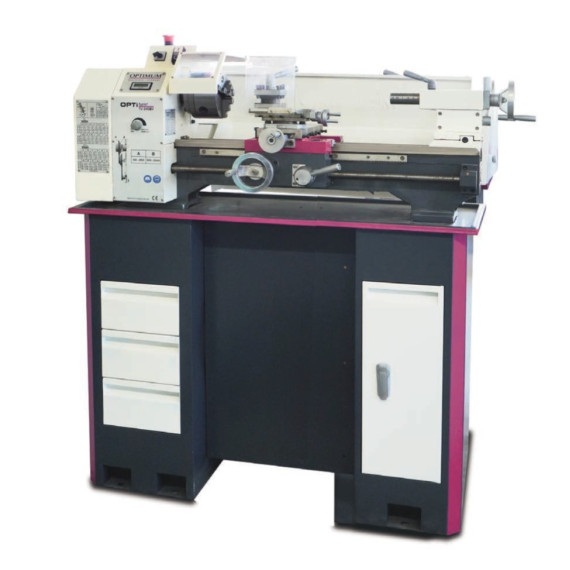

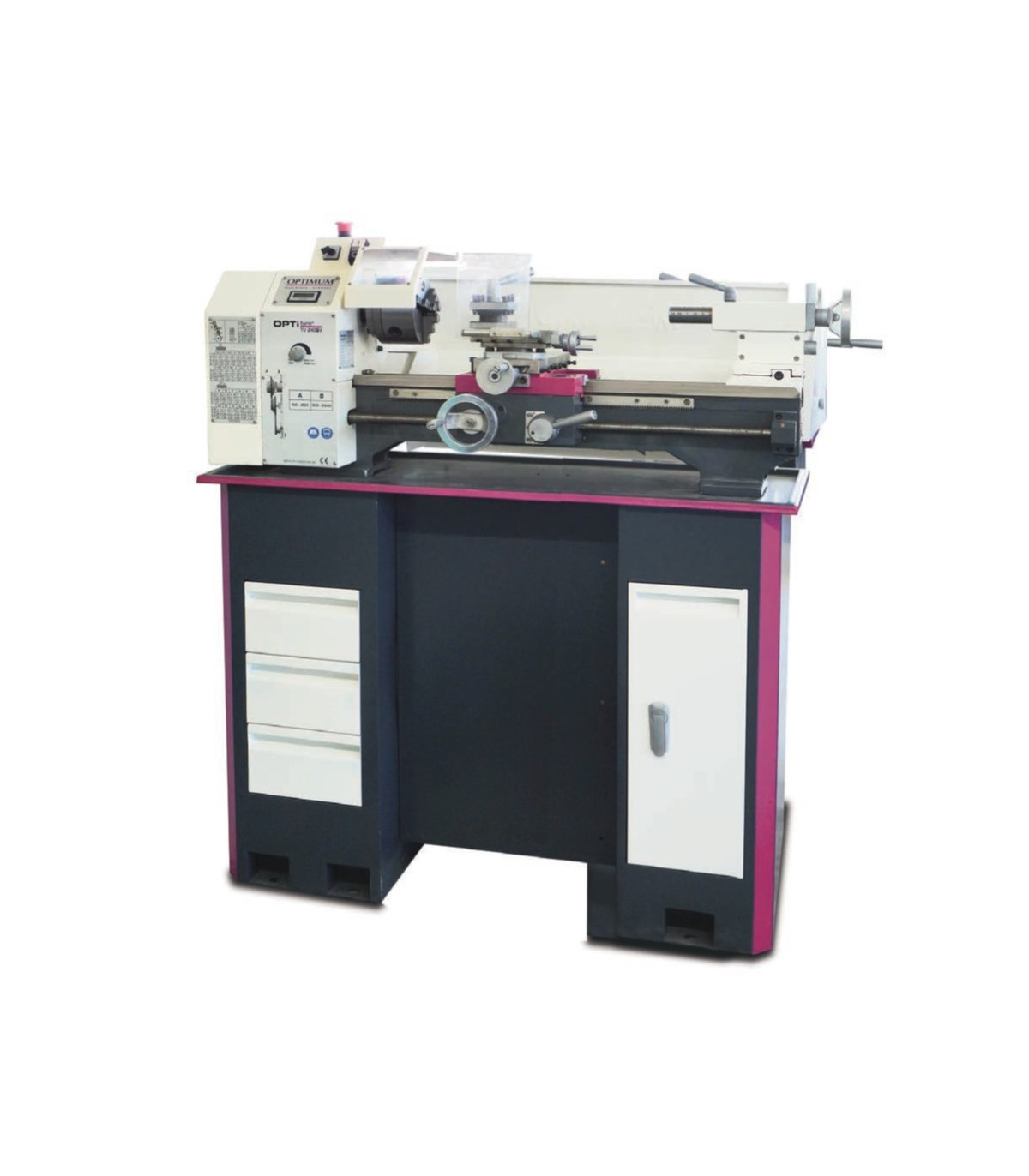

Desktop lathe TU 2406 Vario OPTIMUM. The TU 2406 Vario OPTIMUM desktop lathe stands out for its precision in manufacturing and its tempered Z-axis guide. With a spindle tip concentricity better than 0.009 mm and a spindle mounted on sintered bearings, it guarantees exceptional performance. Its precisely crafted carriage and adjustable handwheels allow for easy handling. It includes a quadruple tool holder, a 3-jaw chuck, and an adjustable tailstock. With a 1.1 kW motor and digital display, it is ideal for demanding tasks.

FEATURES

• Manufactured with precision
• Tempered and ground Z-axis guide
• Guaranteed spindle tip concentricity better than 0.009 mm
• Rolled trapezoidal spindles
• Spindle mounted on two sintered bearings
• Two conical roller bearings in P5 quality
• Precisely crafted carriage
• Handwheels with adjustable fine scale 0.04 / 0.01 mm
• Quadruple tool holder
• All guides can be adjusted using wedge strips.
• Concentricity - chuck better than 0.05 mm
• Feed spindle for thread cutting or automatic longitudinal turning
• Right/left rotation switchable on the control panel
• Adjustable tailstock for conical turning ± 5 mm
• Tailstock and handwheel with adjustable fine scale of 0.02 mm
• Quick, easy, and tool-free adjustment using a clamping lever.
• Impact switch for emergency stop
• Thrust bearing
• Extensive accessories
• 3-jaw lathe chuck included in standard supply
• Stable value

TU 2406V

• Speed change easily adjustable via potentiometer
• Digital speed display
• EMC filter class C1

TECHNICAL SPECIFICATIONS

Dimensions and weights

• Approximate length: 1250 millimeters
• Approximate width/depth: 594 millimeters
• Approximate height: 484 millimeters
• Approximate weight: 125 kilograms

Electrical data

• Drive motor output: 1.1 kW
• Supply voltage: 230 V
• Network frequency: 50 Hz

Threads

• Metric pitch: 0.4 – 3.5 mm/revolution
• Number of metric threads: 14
• Imperial pitch: 44 – 10 Gg/1"
• Number of imperial threads: 12

Speed range

• Number of gears: 2
• Speed range: 150 – 2500 min¯¹
• Speed control: electronically adjustable

Spindle

• Spindle chuck: cylindrical Ø 52 mm
• Spindle hole diameter/rod passage diameter: 21 millimeters
• Maximum tool holder height: 12 millimeters
• Spindle cone: MK 3

Standards and certifications

• Standard: DIN EN 55011
• EMC level: C1

Tailstock

• Throw: MK 2
• Stroke: 60 millimeters

Axes

• Upper slide travel: 75 millimeters
• Cross carriage travel: 120 millimeters
• Carriage travel: 550 millimeters

Working areas

• Maximum height: 125 millimeters
• Maximum width: 550 millimeters
• Turning diameter over the machine bed: 250 millimeters
• Swing diameter over the planning carriage: 148 millimeters
• Bed width: 133 millimeters
• VPE: 1

COMPONENTS/PACKAGING

Unit: pcs.

Packaging unit: 1

• 3-jaw lathe chuck Ø 125 mm, central excitation
• Fixed centering point MK 2 and MK 3
• Guard
• Frying pan
• Quadruple tool holder
• Gear change set
• Operating tool

WHAT TYPE OF WORK IS IT SUITABLE FOR

The TU 2406 Vario OPTIMUM desktop lathe is suitable for:

• Machining parts
• Prototyping
• DIY
• Education
• Craft industry

CERTIFICATION

- DIN EN 55011: The DIN EN 55011 standard refers to the limits and measurement methods for the emission of electromagnetic interference from industrial, scientific, and medical equipment. This standard establishes criteria to ensure that devices do not generate interference that could affect other electronic equipment and also defines the permissible levels of electromagnetic radiation. It is essential to ensure compliance in the design and use of equipment operating in environments where electromagnetic compatibility is crucial.
