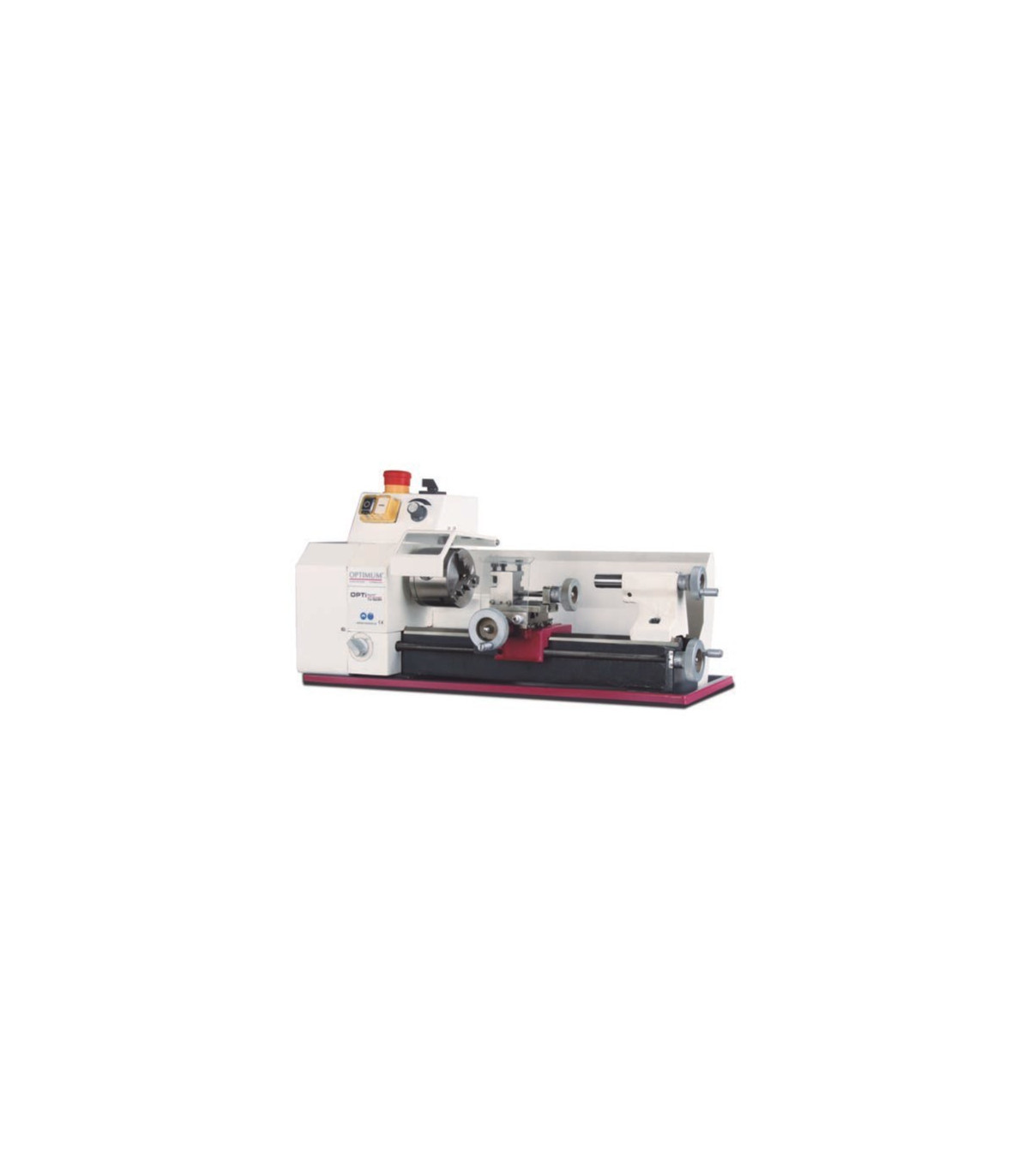

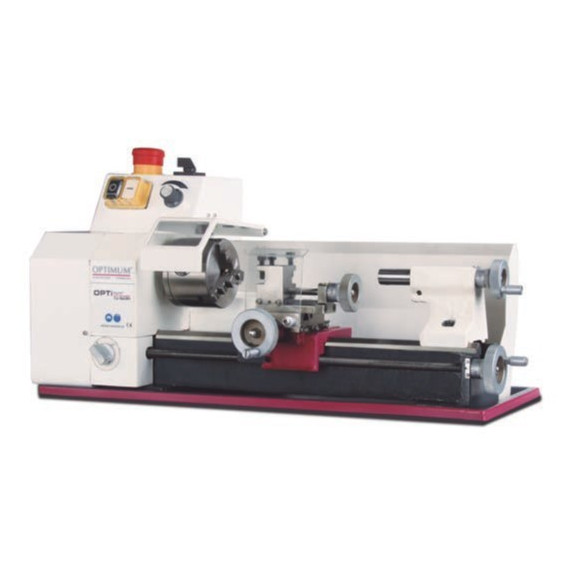

Compact lathe with adjustable electronic speed TU 1503V OPTIMUM

Compact lathe with adjustable electronic speed TU 1503V OPTIMUM. The compact lathe TU 1503V OPTIMUM features adjustable electronic speed and a direct current motor. Its gray cast iron bed ensures concentricity better than 0.015 mm. It includes a 3-jaw chuck and allows for automatic threading. With dimensions of 570x340x300 mm and a weight of 23 kg, its 0.45 kW motor provides efficient performance. Additionally, it features quick speed change, right/left rotation, and chuck protection with a micro switch, ensuring safety and precision in work.

FEATURES

• Direct current motor
• Verrippt prism bed made of gray cast iron, induction hardened and ground
• Tempered and ground Z-axis guide
• Guaranteed concentricity of the spindle tip better than 0.015 mm
• Concentricity - lathe chuck max. 0.05 mm
• Feed spindle for automatic threading or longitudinal turning
• Longitudinal sliding, leveled and upper
• Automatic drive for longitudinal/feed spindle
• Large threading area due to the gear change
• 3-jaw lathe chuck included in standard supply
• Easy and quick speed change via trapezoidal belt
• Safety switch on the cover
• Switchable right/left rotation on the control panel
• Chuck protection with micro switch
• Handwheels with adjustable fine scale 0.04 / 0.01 mm
• All guides can be adjusted without play using wedge strips.
• Emergency stop impact switch
• Low voltage electronics
• EMC filter class C1

TECHNICAL SPECIFICATIONS

Dimensions and weights

• Approximate length 570 millimeters
• Approximate width/depth 340 millimeters
• Approximate height 300 millimeters
• Approximate weight. 23 kilograms

Electrical data

• Drive motor output 0.45 kW
• Supply voltage 230 V
• Network frequency 50 Hz

Feed

• Longitudinal feed range 0.05 – 0.1 mm/rev
• Number of longitudinal feeds 2

Threads

• Metric pitch 0.5 – 1.5 mm/rev
• Number of metric pitches 8
• Diametral pitch 30
• Speed range
• Number of gears 1
• Speed range 120 – 3000 min¯¹
• Speed control electronically adjustable

Spindle

• Spindle chuck cylindrical Ø 22
• Spindle hole diameter/spindle rod passage diameter 11 millimeters
• Maximum tool holder height 12 millimeters
• Spindle cone MT 1

Standards and certifications

• Standard DIN EN 55011
• EMC level C1

Tailstock

• Throw MT 1 shortened
• Pen stroke 30 millimeters

Axes

• Upper slide travel 40 millimeters
• Cross carriage travel 55 millimeters
• Carriage chair travel 270 millimeters

Working areas

• Maximum height 75 millimeters
• Maximum width 265 millimeters
• Swing diameter over the bed 70 millimeters
• Bed width 70 millimeters
• VPE 1

COMPONENTS/PACKAGING

Unit: pcs.

Packaging unit: 1

• 3-jaw lathe chuck Ø 80 mm, central excitation
• Fixed center point MK1
• Guard
• Frying pan
• Gear change set
• Double tool holder
• Operational tool

FOR WHAT TYPE OF WORK IS IT SUITABLE

The compact lathe with adjustable electronic speed TU 1503V OPTIMUM is suitable for:

• Machining parts
• Prototyping
• Hobby and DIY
• Education
• Craft industry

CERTIFICATION

- DIN EN 55011: The DIN EN 55011 standard refers to the limits and measurement methods for the emission of electromagnetic interference from industrial, scientific, and medical equipment. This standard establishes criteria to ensure that devices do not generate interference that could affect other electronic equipment and also defines the permitted levels of electromagnetic radiation. It is essential to ensure compliance in the design and use of equipment operating in environments where electromagnetic compatibility is crucial.
